Ac 50-300V Voltmeter Ammeter Kws Power Energy Meter Led Digital Ac Wattmeter Electric Meter With Reset Function 0-100A

Ac 50-300V Voltmeter Ammeter Kws Power Energy Meter Led Digital Ac Wattmeter Electric Meter With Reset Function 0-100A

$28.95
2/7
description
product reviews

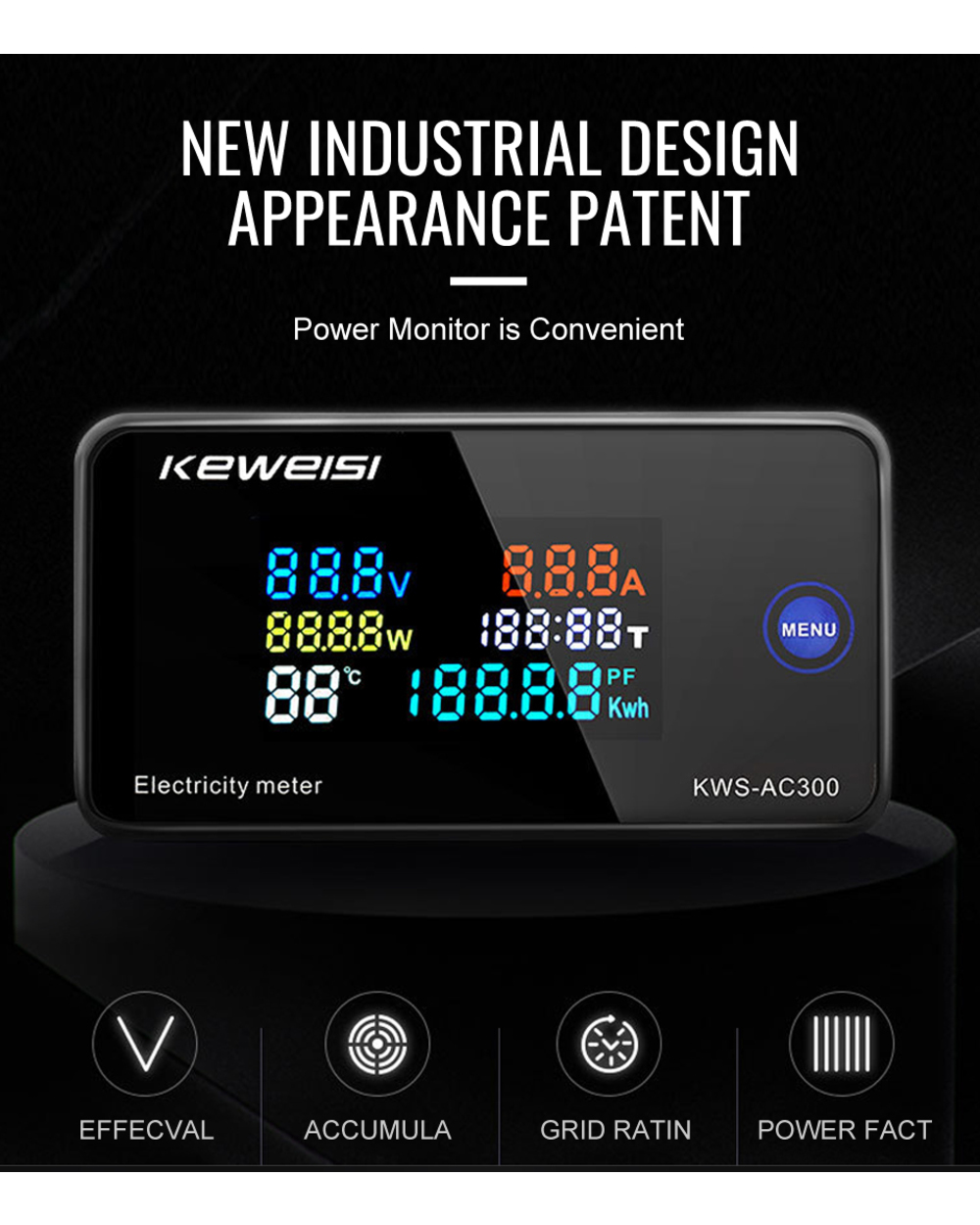

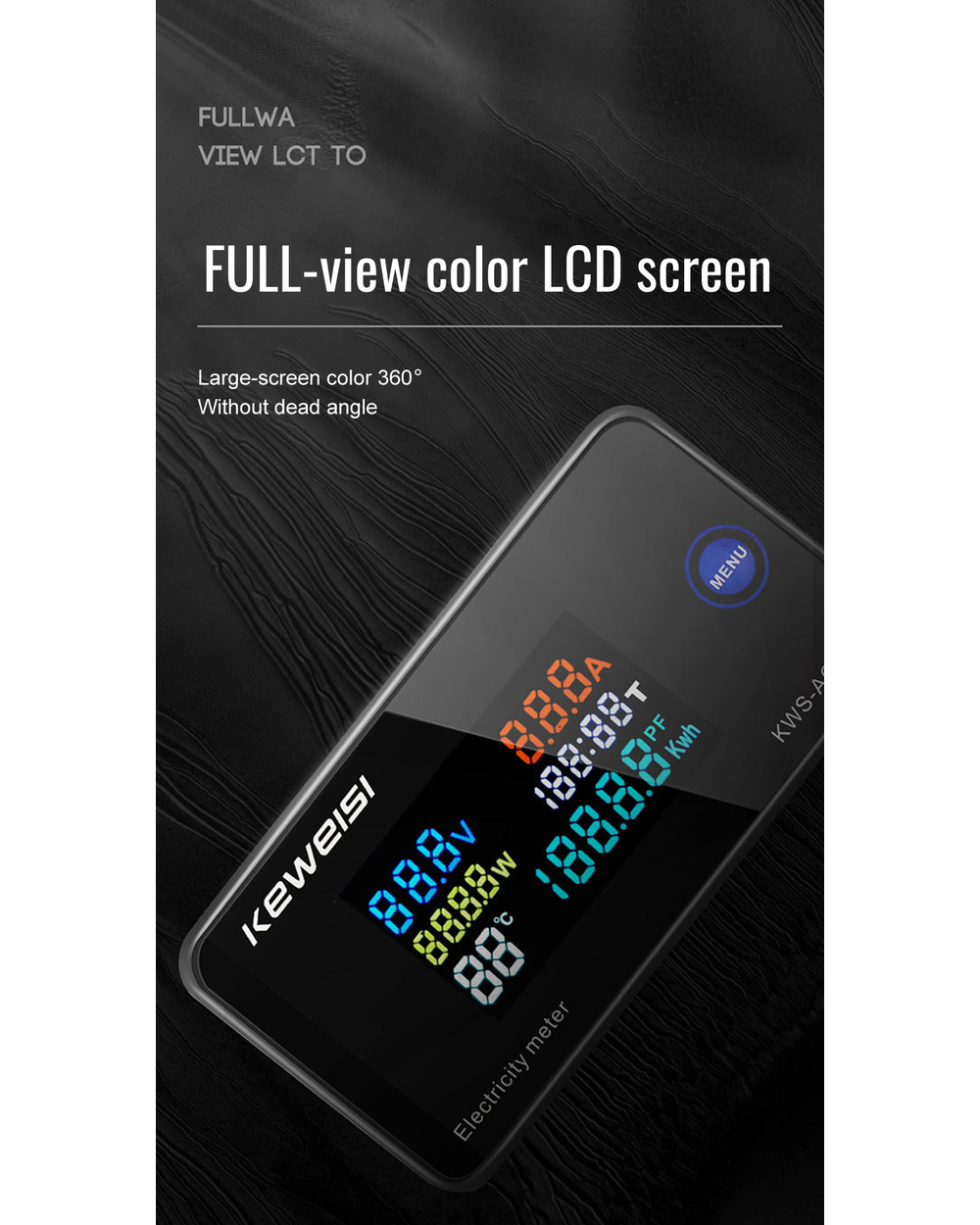

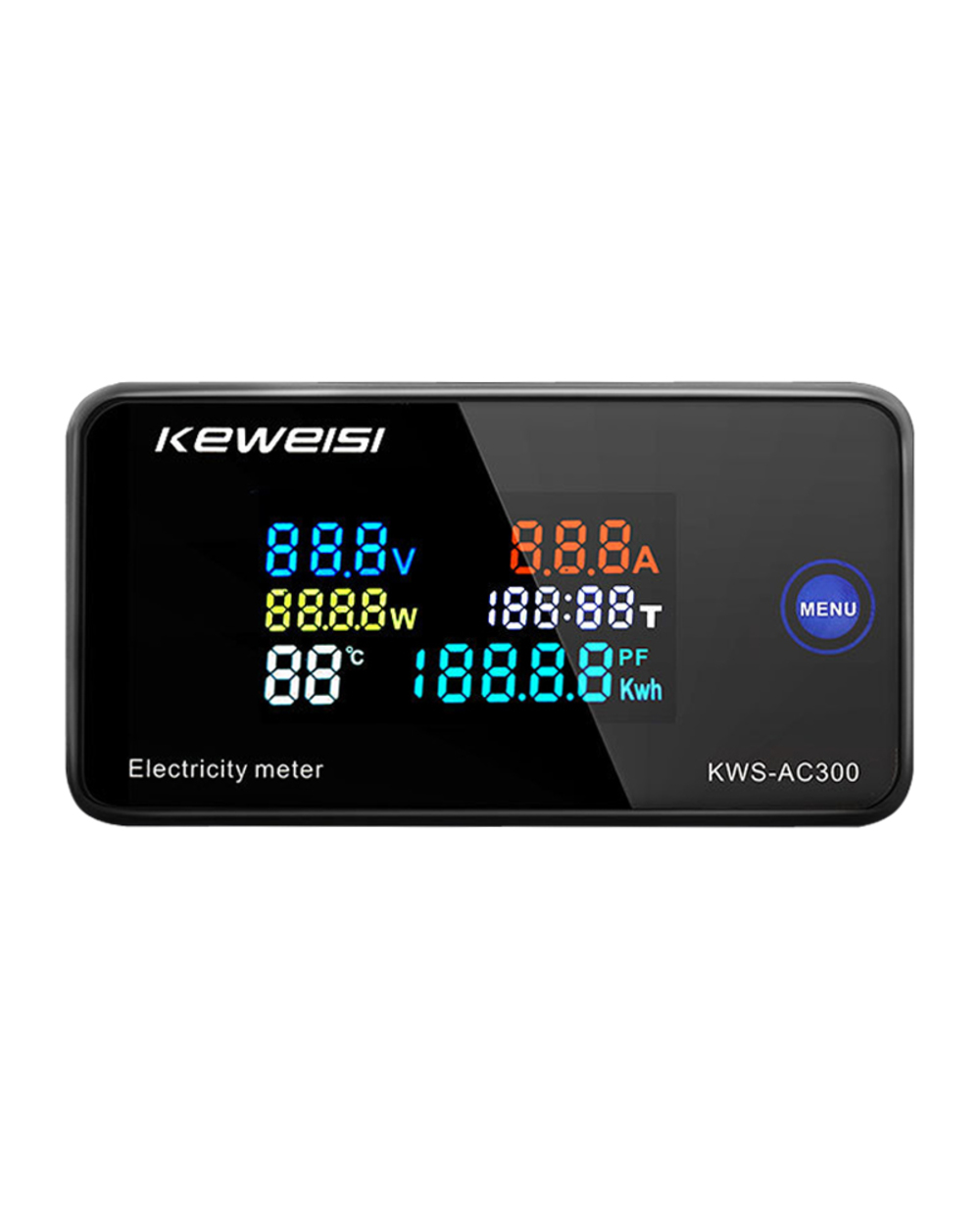

KWS-AC300 Voltmeter Ammeter KWS Power Energy Meter AC 50-300V LED AC Wattmeter Electricity meter with Reset Function 0-100A









Model:AC300-10A


1.Voltage: AC50-300V


2.Current: 0-10A


3.Power: 0-3000W


4.Capacity: 0.01-19999Kwh


5.Timing: 0-200H


6.Temperature: -10 ° C to 99 ° C



7.Package include:1*1  x Meter(10A is without shunt/CT Coil)、1*Usuer Manual





Model:AC300-100A



1.Voltage: AC50-300V


2.Current: 0-100A


3.Power: 0-30KW


4.Capacity: 0.01-19999Kwh


5.Timing: 0-200H


6.Temperature: -10 ° C to 99 ° C


7.7.Package include:1*1  x Meter、1  x 100A shunt/CT Coil 、1*Usuer Manual



Function



1.Volage curent, power, iming. humilyCurrent electical energy,cumulative electrical energy


2. Electic energy and üming can be reset


3. Electic energy and iming have power down memory uncion


4. Rated frequency 45-65Hz






Operation


Click the MENU button on the panel to view the current electrical energyand cumulative electrical energy. Electric energy and timing reset method: Press and hold the MENU button for 5 seconds, the number in the timingarea will flash, then click the button to select timing, current electricalenergy and cumulative electrical energy reset. When the number flashes,double-click the button to reset. Press and hold the button for 5 secondsto save the settings.
































2/7

Ac 50-300V Voltmeter Ammeter Kws Power Energy Meter Led Digital Ac Wattmeter Electric Meter With Reset Function 0-100A

$28.95
