600Ma Dc-Dc 6-55V To 5V Step Down Buck Module Fixed Output Voltage Regulator

600Ma Dc-Dc 6-55V To 5V Step Down Buck Module Fixed Output Voltage Regulator

$20.95
2/4
description
product reviews

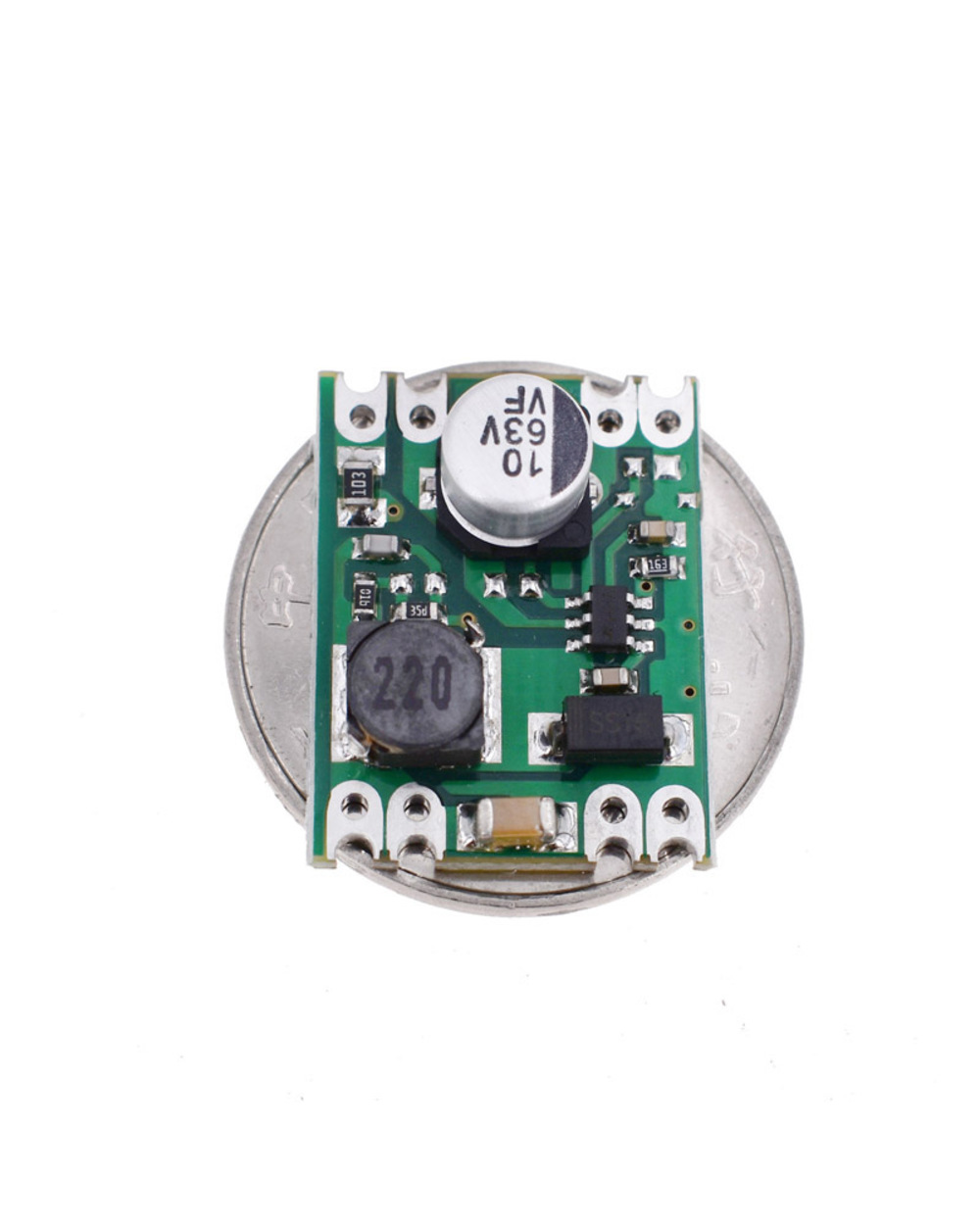

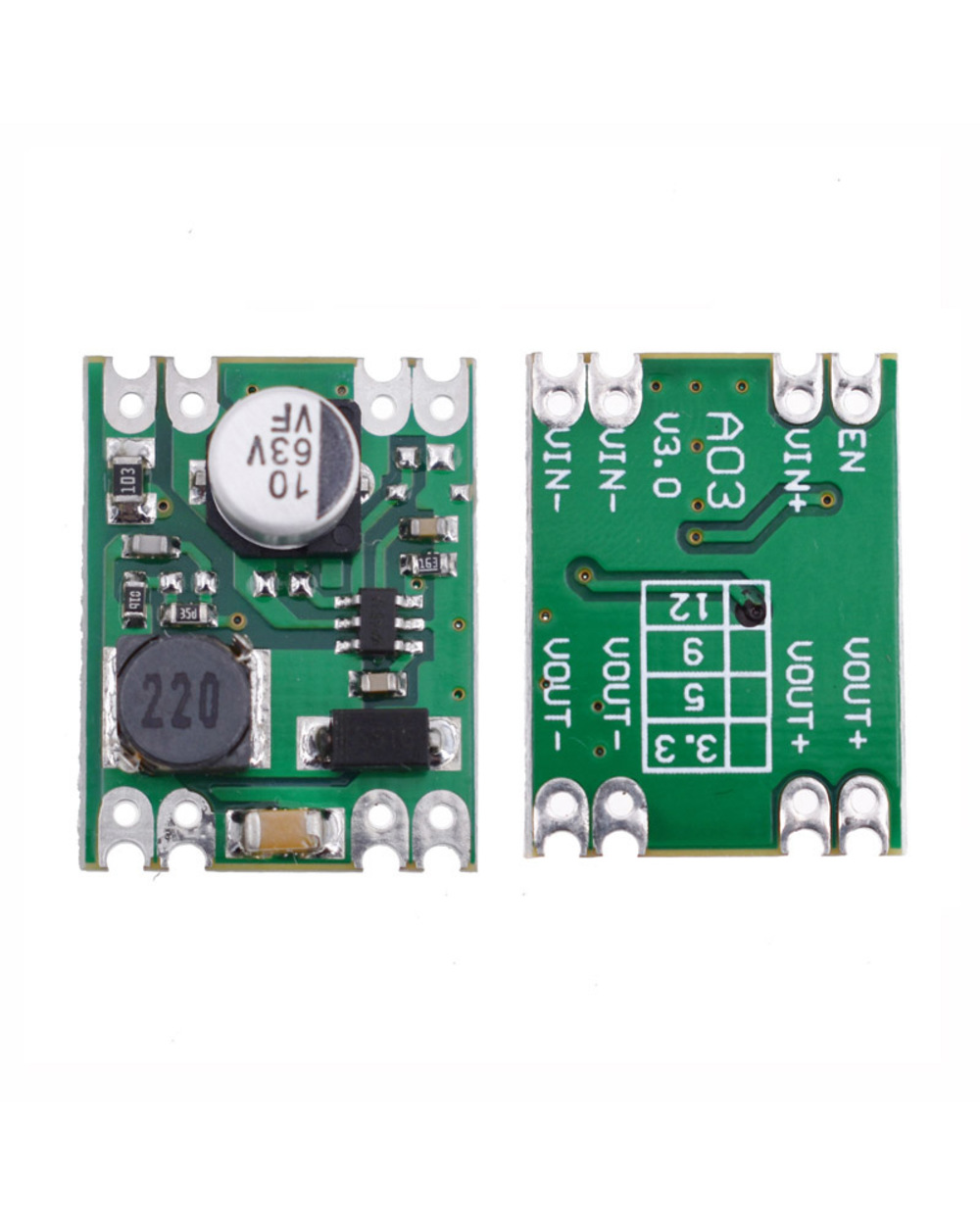

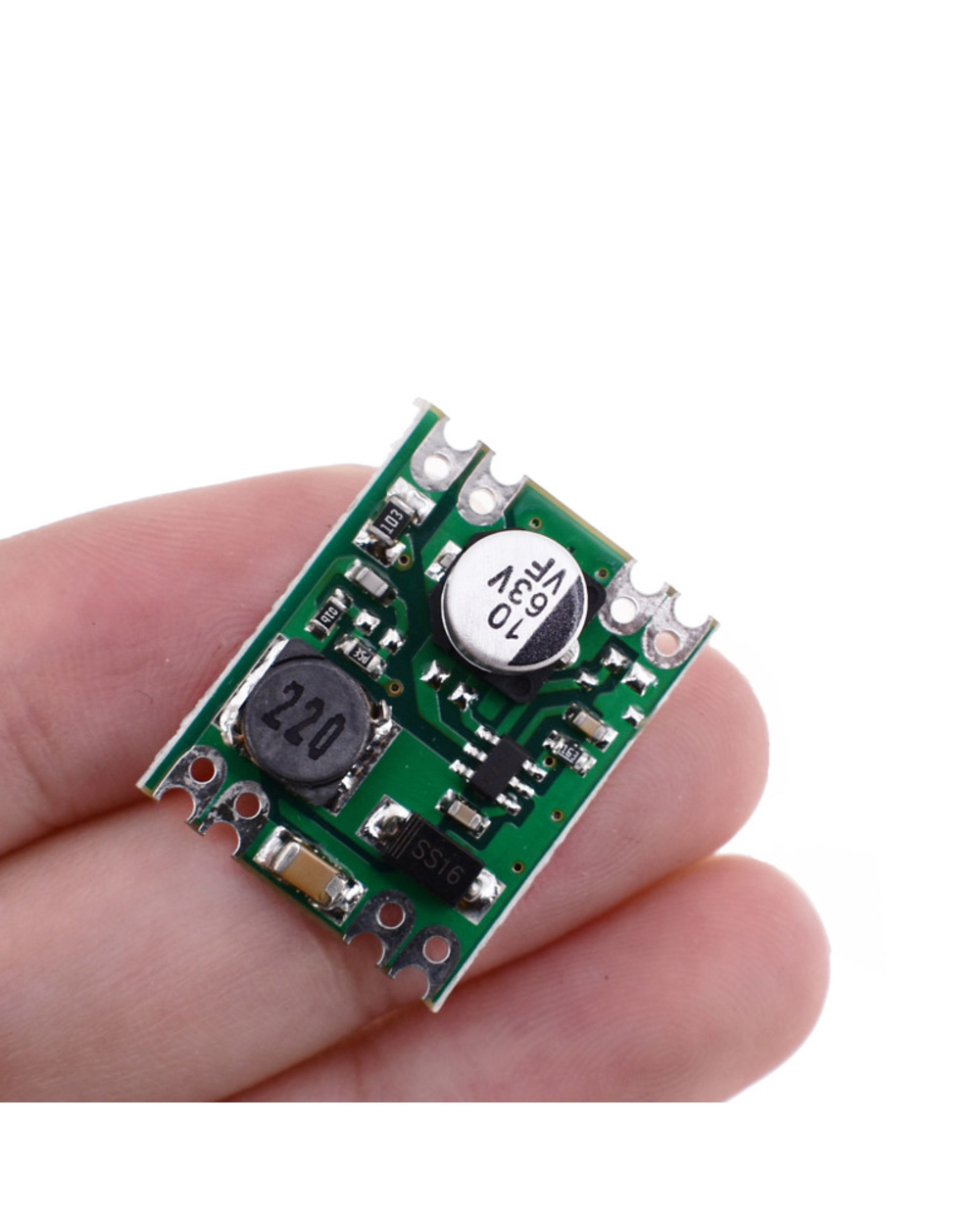

 This module is a high voltage, high current DC-DC buck module.
Input up to 55V, maximum efficiency 96%, output 5V and maximum current 600mA.
Can turn off the module.It has many advantages such as low power consumption, low impact and anti-interference ability.
It is widely used in automobile, electric vehicle, communication equipment, ship, industrial control, LED lighting field.

Specification:
Input voltage: DC 6V-55V
Output voltage: 3.3V/5V/9V/12V(optional)
Output current: 600mA
Conversion : 95%
Output ripple: Output accuracy: ±0.1V
Working temperature: -40 ° C ~ +85 ° C
Relative humidity: 20-90%
Switching frequency: 500KHZ
Size: 17*17*5mm (L*W*H)
Module weight: 2g
