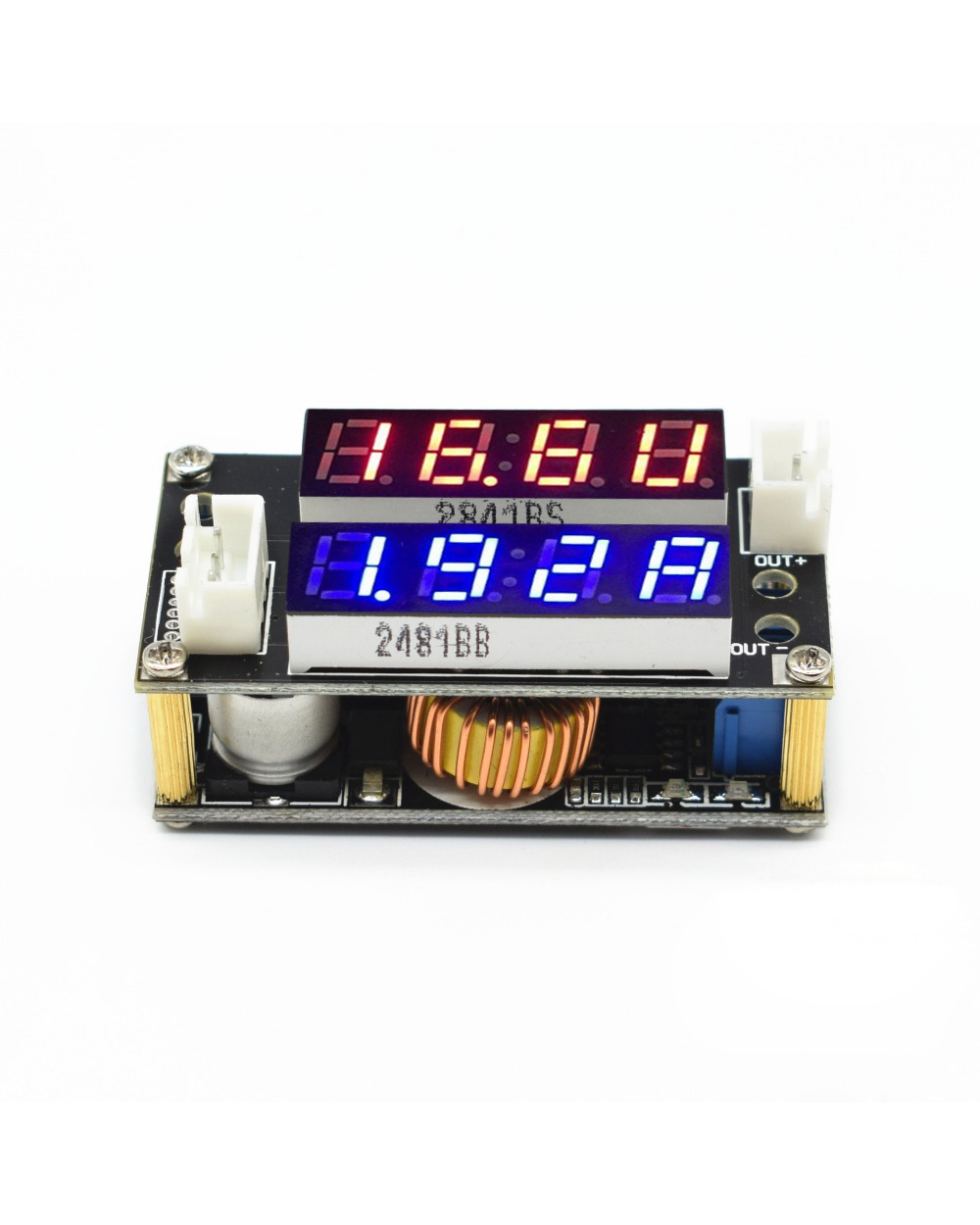

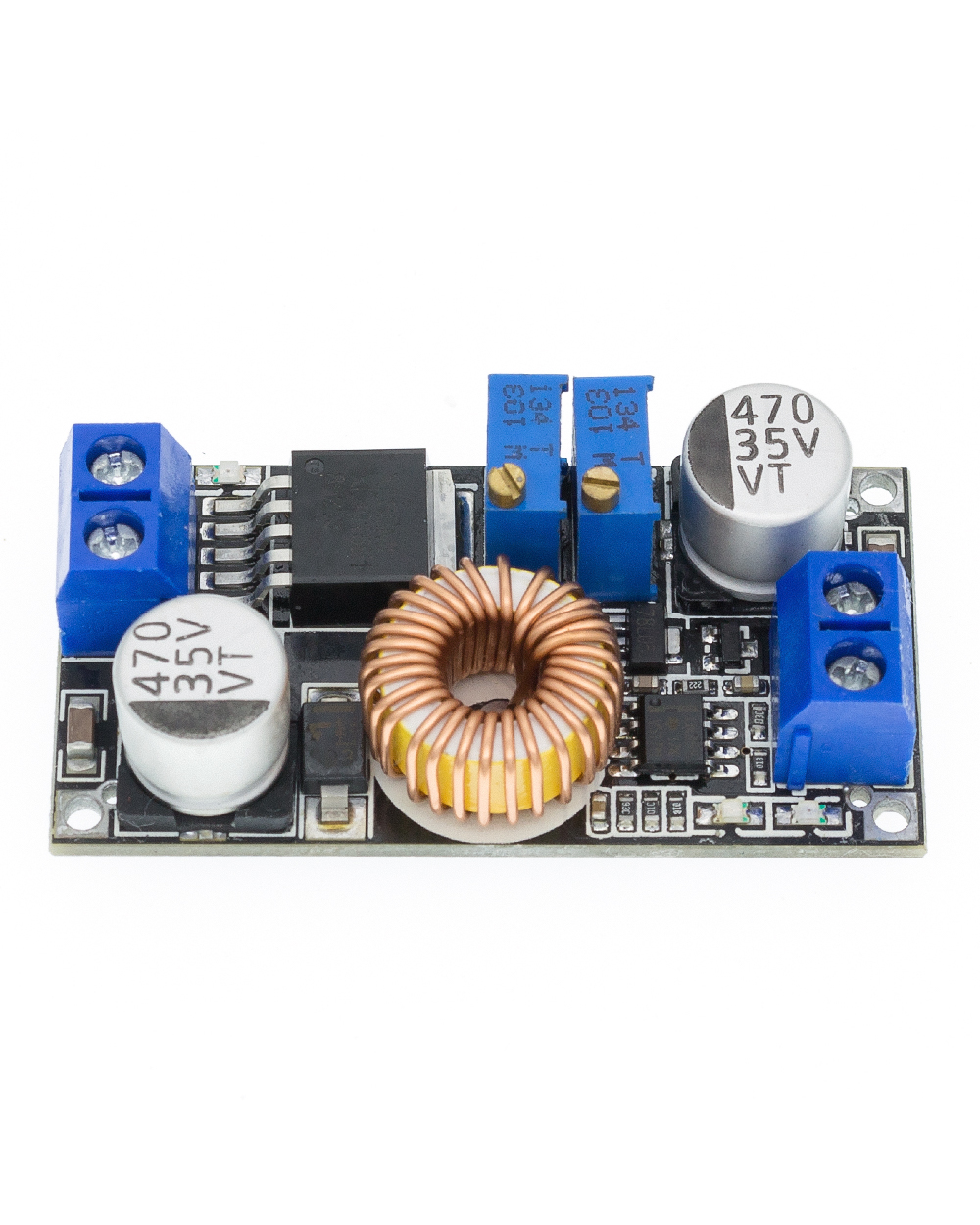

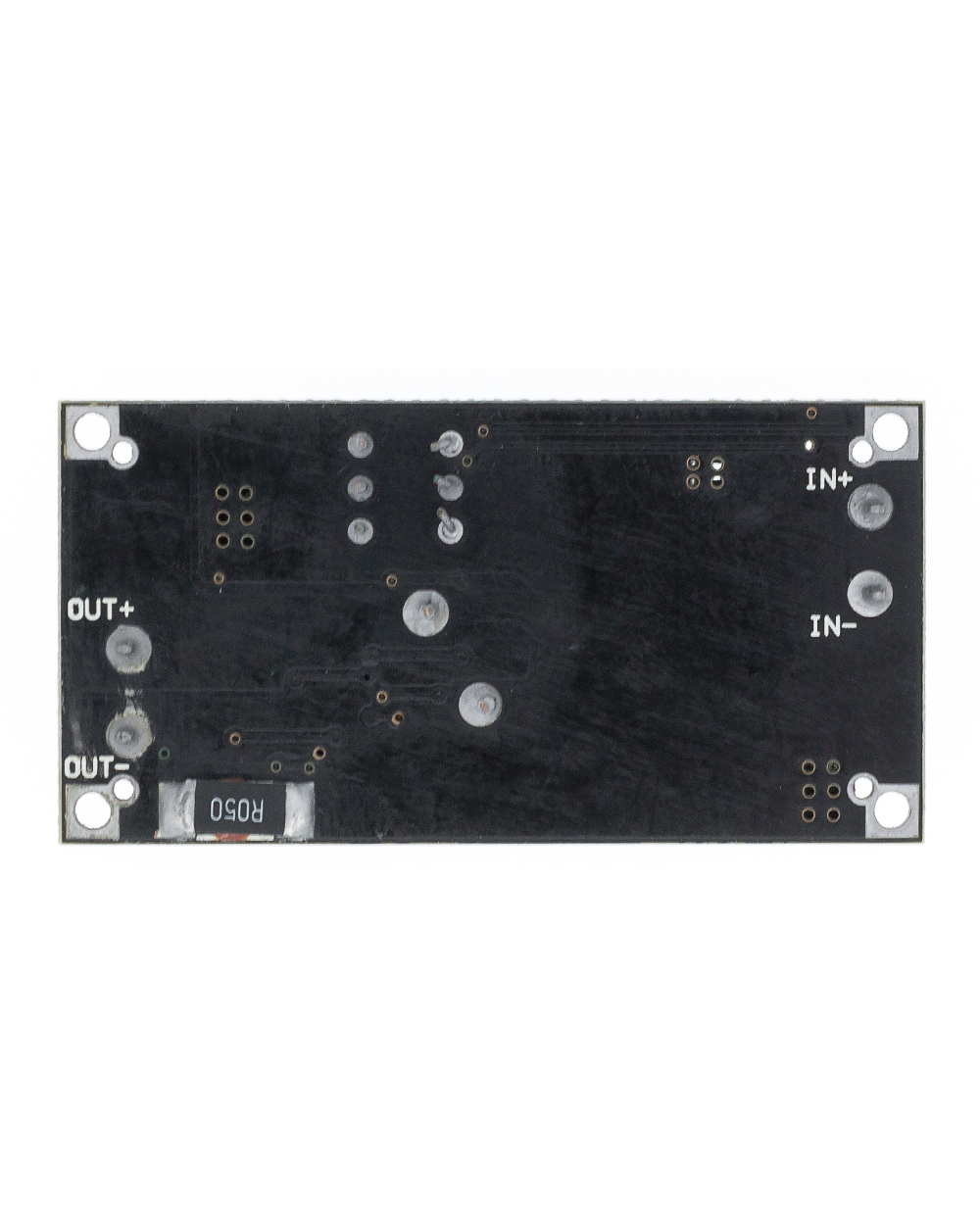

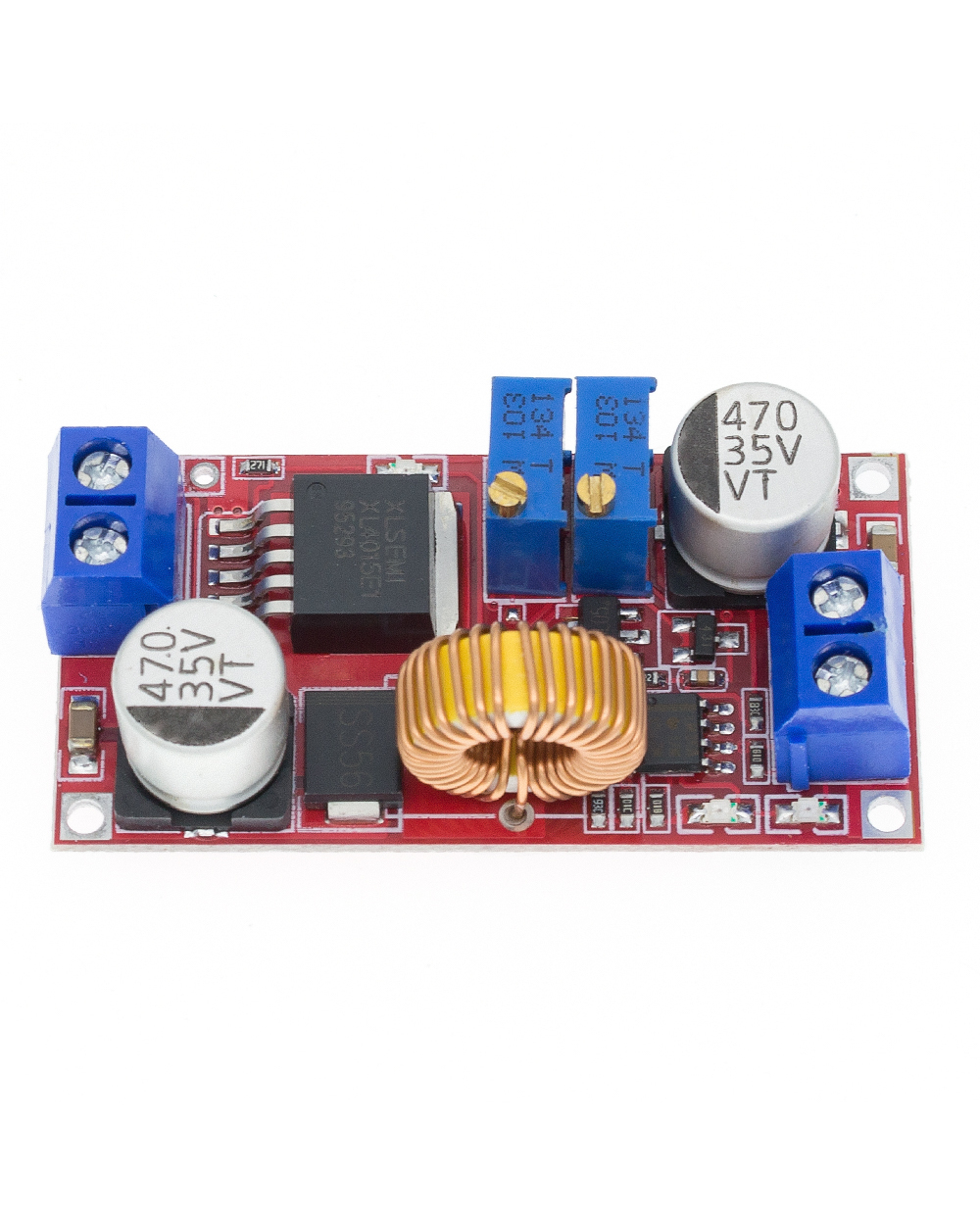

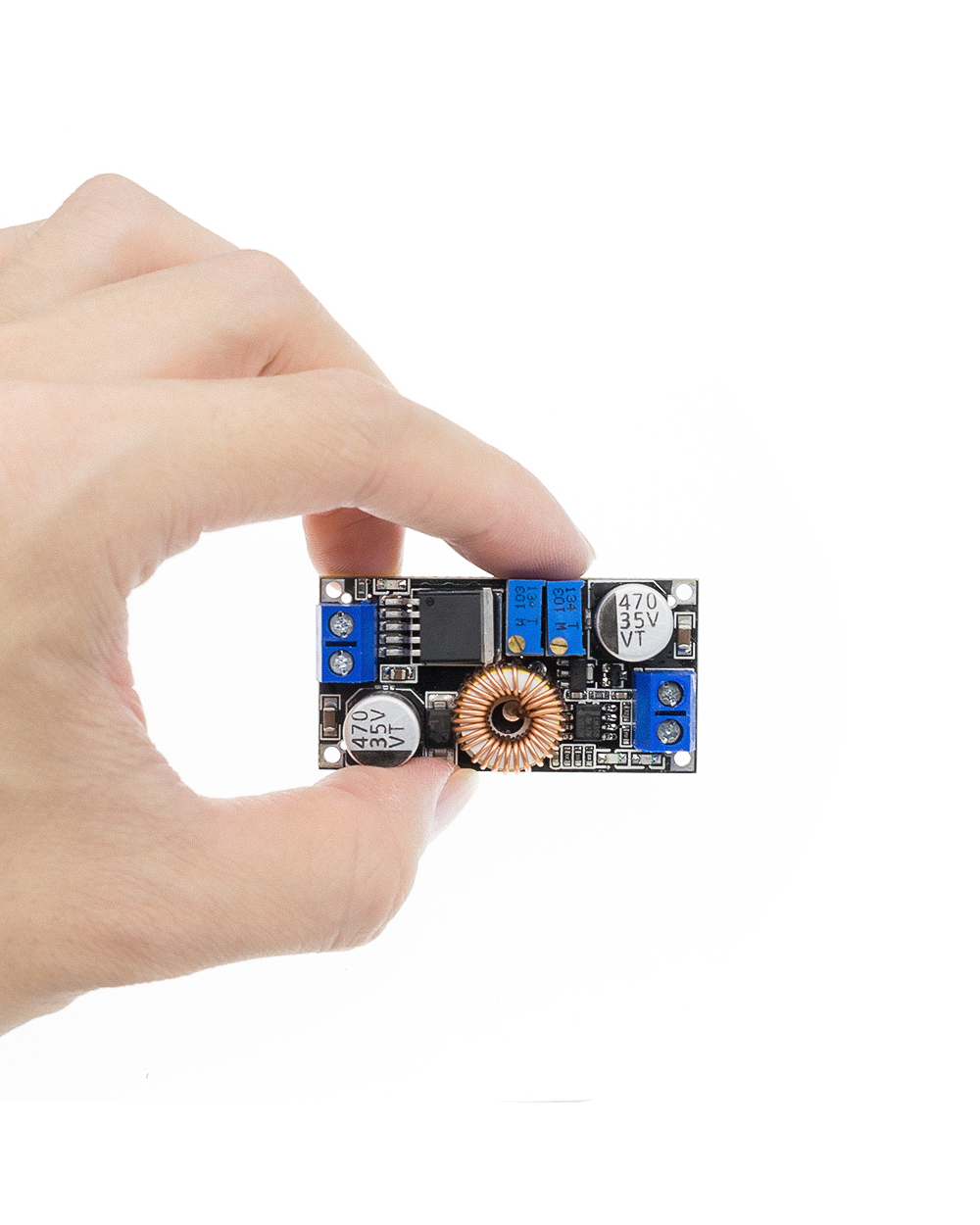

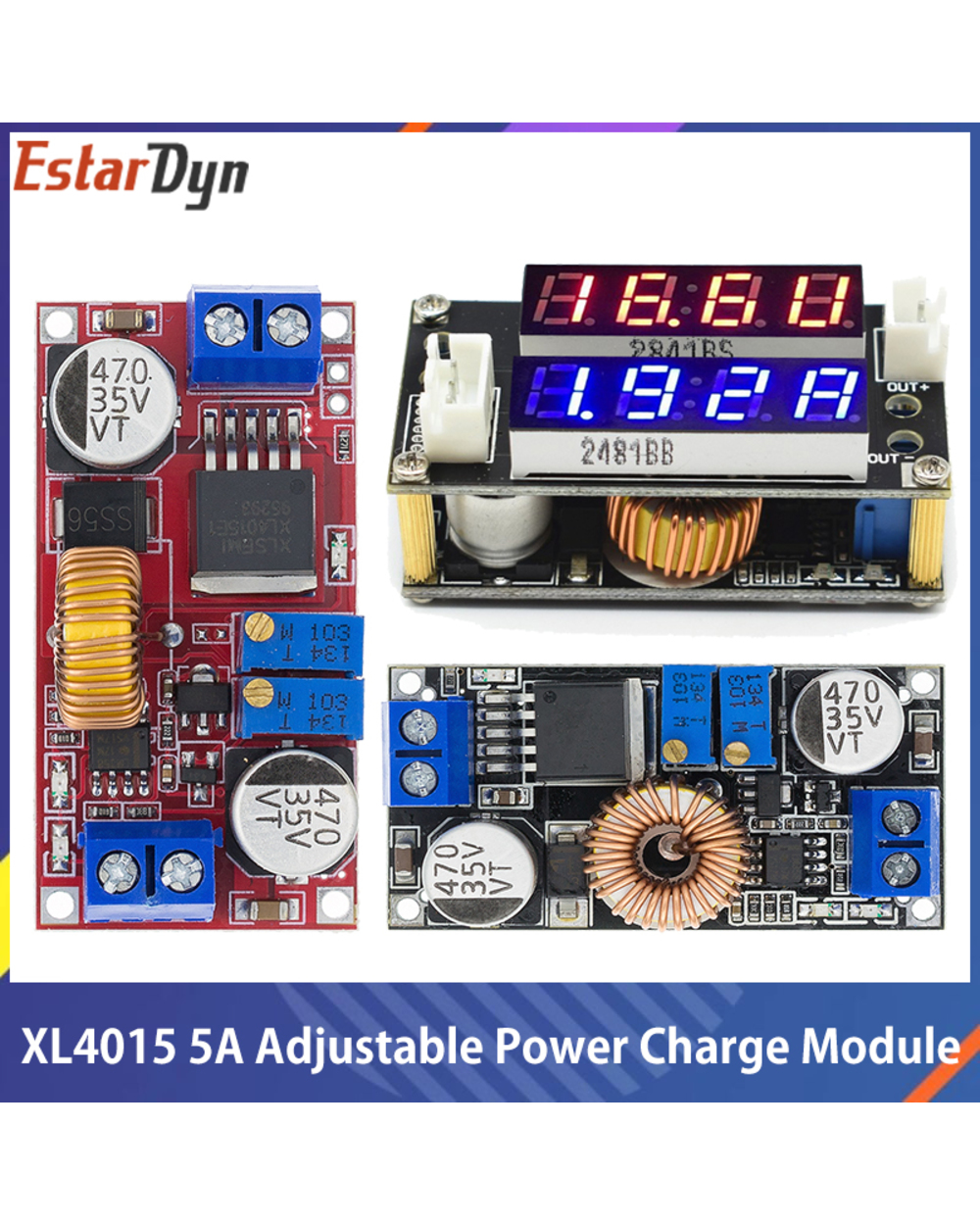

5A Dc To Dc Cc Cv Lithium Battery Step Down Charging Board Led Power Converter Lithium Charger Step Down Module Xl4015

5A Dc To Dc Cc Cv Lithium Battery Step Down Charging Board Led Power Converter Lithium Charger Step Down Module Xl4015

$37.95
2/7
description
product reviews

100% Brand New.

  • Size: 5.2 x 2.65 x 1.4cm (L x W x H)

  • Module Properties: non-isolated constant current and voltage module

  • Rectification: non-synchronous rectification

  • Input voltage: 8V-36V

  • Output voltage: 1.25V-32V

  • Output current: adjustable maximum 5A

  • Conversion efficiency: 95% (the highest)

  • Switching frequency: 180KHz

  • Output ripple: 50mV (max) 20M bandwidth

  • Load Regulation: ± 0.5%

  • Voltage Regulation: ± 2.5%

  • Operating Temperature: -40 °c to +85 °c

Load Regulation: ± 0.5%

Voltage Regulation: ± 2.5%

Operating Temperature: -40 °c to +85 °c
