4Pcs Human Scale Load Cell Weight Sensors + Hx711 Ad Module Weight Sensor Electronic Scale Weighing Pressure Sensor Diy

4Pcs Human Scale Load Cell Weight Sensors + Hx711 Ad Module Weight Sensor Electronic Scale Weighing Pressure Sensor Diy

$23.95
2/7
description
product reviews
4pcs 50KG Human Scale Body Load Cell Resistance Strain Weight Sensor + HX711 Module Pressure Sensors Measurement Load Cell

Features:

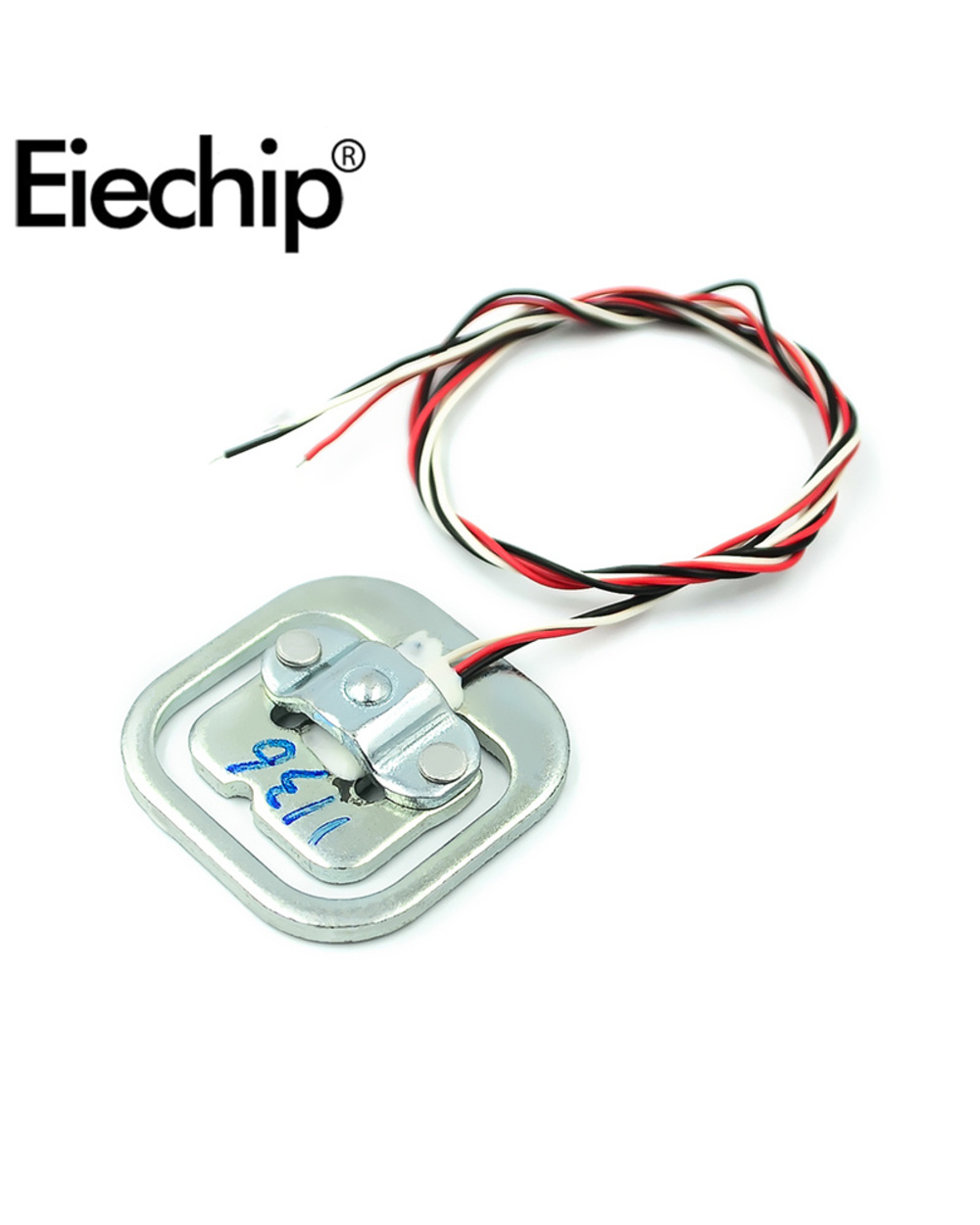

This Load Sensor, Sometimes Called A Strain Gauge, Is The Same One Found In Digital Bathroom Scales.
The Sensor Is A Group Of Half-bridge Strain Gauge.
Fine Workmanship And Good Performance.
Easy To Use. Long Service Life.

3 Ways To Use It:
1. Use One Sensor With An External Resistor To Form A Full-bridge Measurement, The Range Of A Sensor Range: 50kg. External Resistance On The Higher Requirements.
2. Use Two Sensors To Form A Full-bridge Measurement, Measuring Range For The Sum Of The Two Sensors: 50kgx2=100kg.
3. Use Four Sensors To Form A Full-bridge Measurement, Measuring Range For The Sum Of Four Sensors: 50kgx4=200kg.

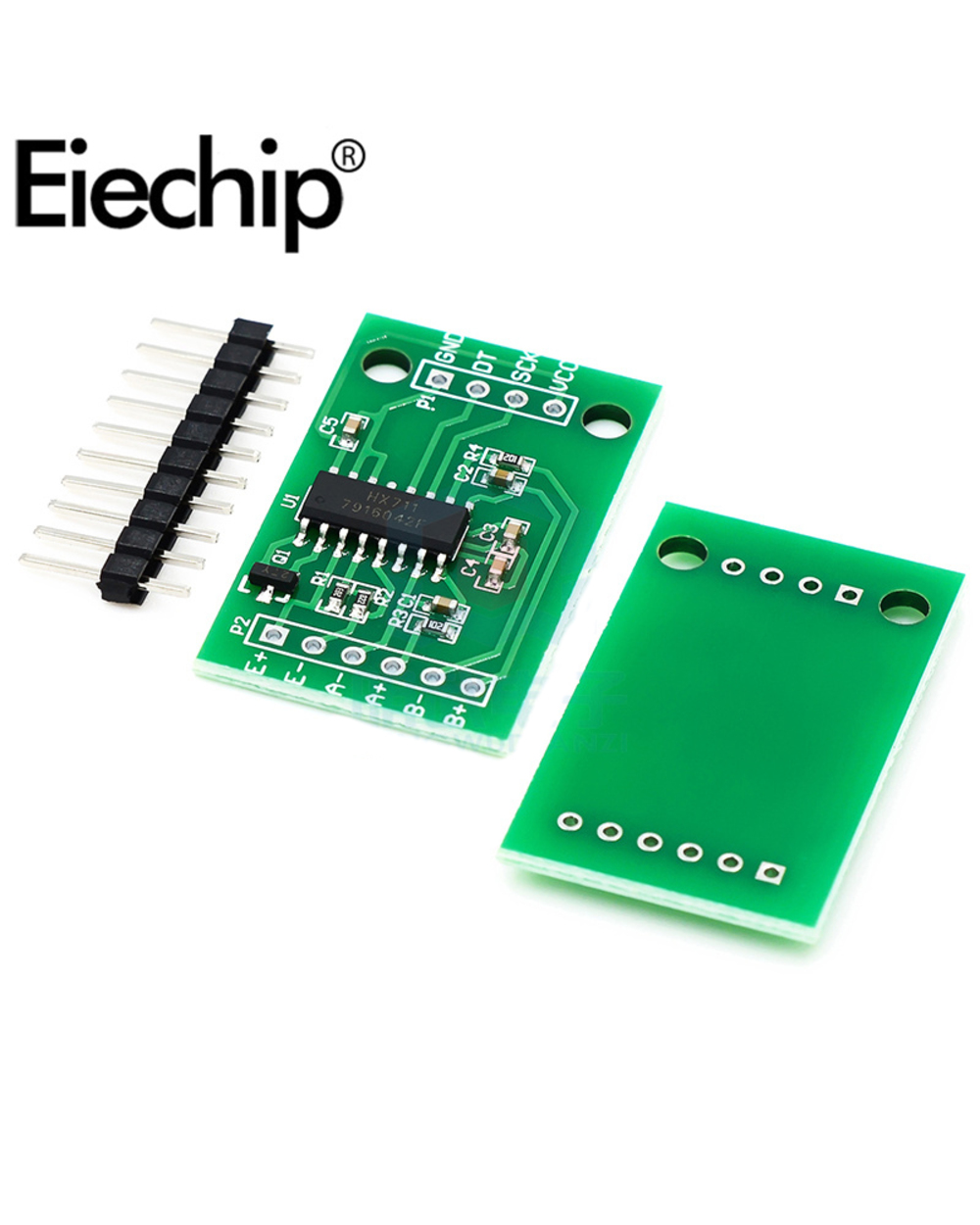

HX711 AD Module


The 24-bit high-precision A/D converter chip HX711 is designed for high-precision electronic scales. It has two analog channel inputs and an internal integrated 128 times gain programmable amplifier. The input circuit can be configured to provide bridge voltage (such as pressure, weighing) sensor mode, is an ideal high-precision, low-cost sampling front-end module.


Specification:
Material: Plastic & Metal & Pcb Board
Dimensions: 3.4x3.4cm/1.34x1.34inch

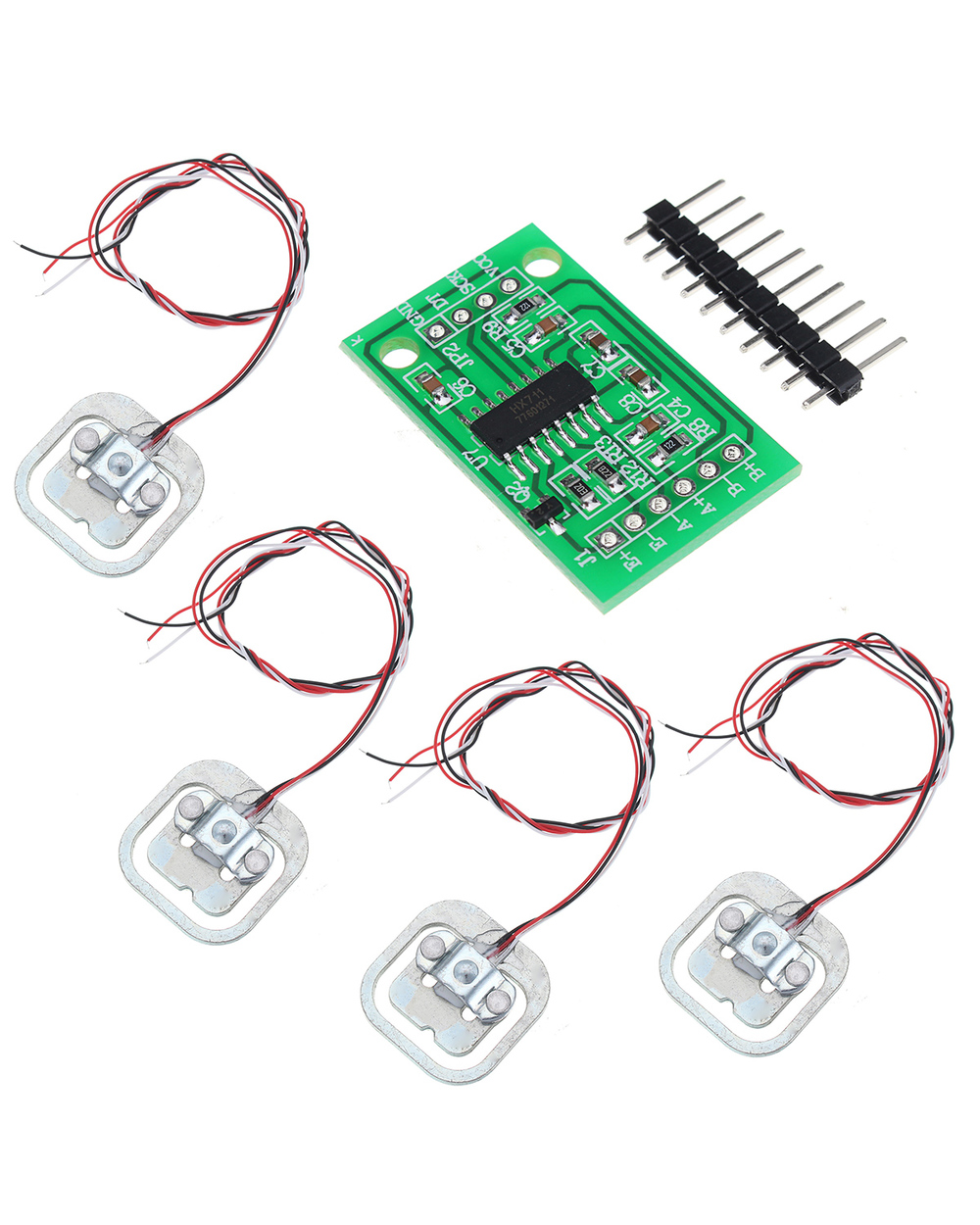

Package Includes:

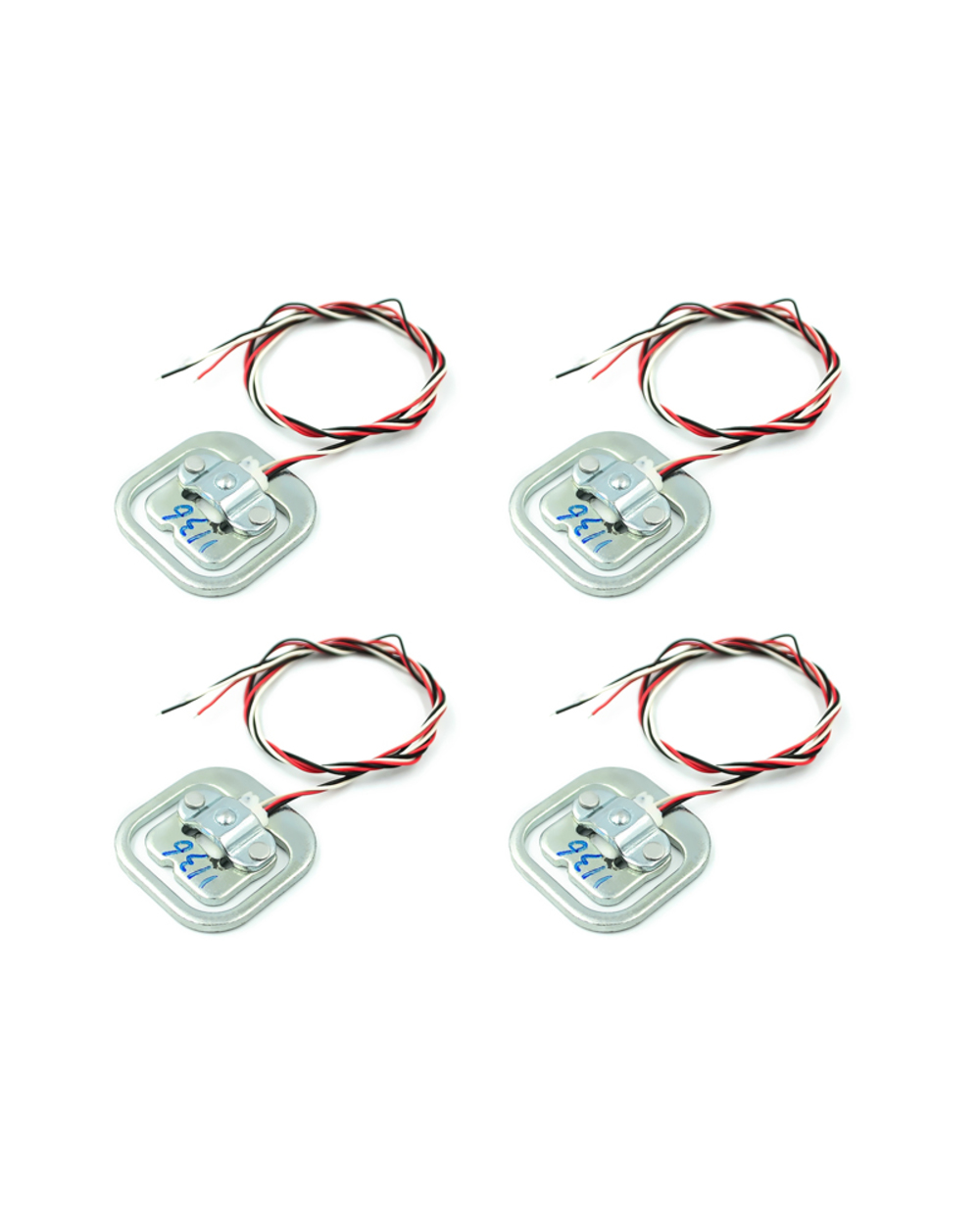

4 X 50kg Human Scale Load Cell
1 X Hx711 Ad Module
1 X 10pin Needle
