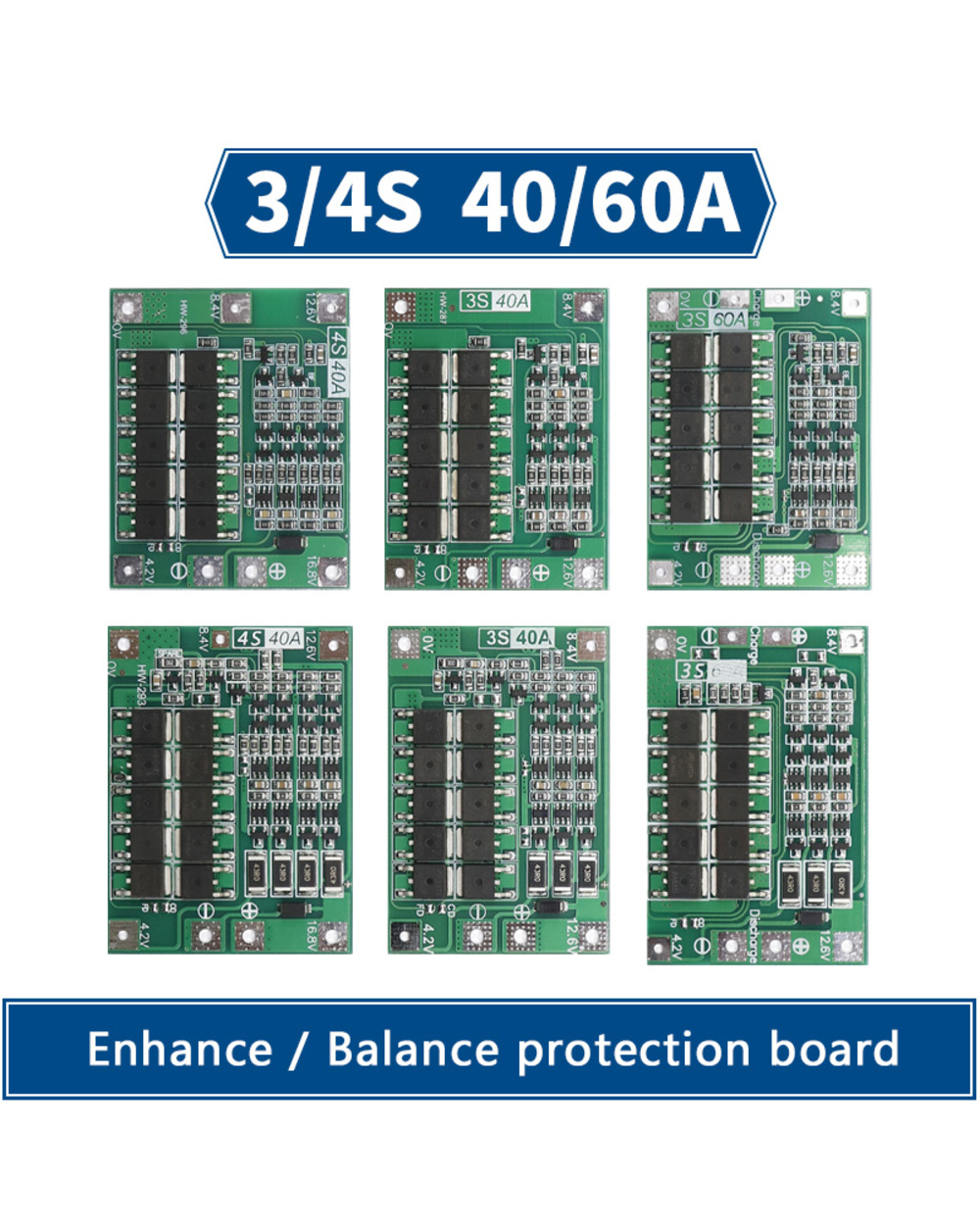

3S/4S 40A 60A Li-Ion Lithium Battery Charger Protection Board 18650 Bms For Drill Motor 11.1V 12.6V/14.8V 16.8V Enhance

3S/4S 40A 60A Li-Ion Lithium Battery Charger Protection Board 18650 Bms For Drill Motor 11.1V 12.6V/14.8V 16.8V Enhance

$20.95
2/7
description
product reviews

3S 40A INTRODUCTION
Product Name : 3 string 12.6V 40A lithium battery protection board
Charging voltage : DC 12.6V-13 6V
Continuous discharge current : 40A maximum
( if the heat dissipation environment is not good , please reduce the load current )
Continuous charging current : up to 20A

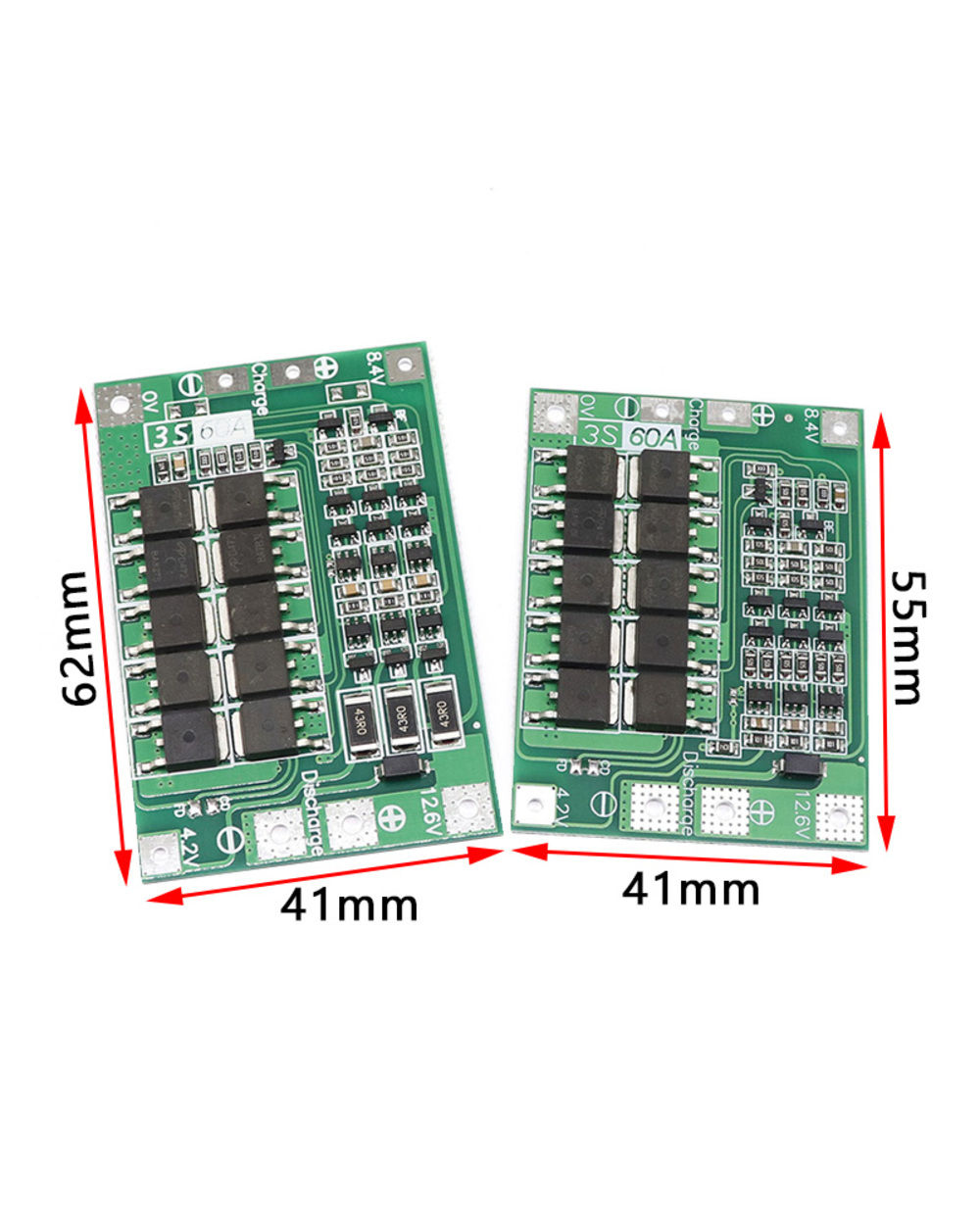

Balance Version Product size : 41*61* 4mm
Enhance Version Product size : 41*55*4mm
Applicable choice : applicable to the nominal voltage of 3.7V , fully charged 4.2V lithium battery
( including 18650 , 26650 , polymer lithium battery ) , can be drilled below 170W



NOTE
Note 1 : Successfully start the drill requires 3 10C-20C power batteries , or 6 5C-10C powerbatteries ( recommended power battery models : sony vtc4 , VTCAA , vtca , vtc ) OV and 12.6v cable , use Copper wire of 3 square millimeters or more ( nickel sheets cannot be used)
Note 2 : Strictly connect 0V , 4.2V , 8.4V , 12.6V according to the diagram . Do not touch any components on the board when soldering the wire . Do not intentionally short circuit.
Note 3 : When soldering the battery for the first time or when charging is in progress , as long as the single battery exceeds 4.2V , the " 430 resistor will heat up and discharge ( discharge to about 4.19V to stop heating ) . If the " 430 " resistor is severely hot , check if the wrong line is connected.



HARDWARE PREPARATION
Prepare 3S 12.6V 40A lithium battery protection module , battery , power supply , high power load resistor.

The figure below shows the module discharge diagram . The battery is 3 strings . The connected battery needs to meet the 40A discharge current . It can be realized by paralleling the battery or purchasing a battery with a large discharge current For example , if the battery is 2000MAH and the discharge multiple is 10C , then only 3 strings of 2 are needed and the discharge current is 40A.

The figure below shows the battery charging diagram . The charging voltage is DC12.6v ~ 13.6V . The charging current depends on the battery connected , and the maximum is no more than 20A . The module has a balanced charging path , and the equalization function works only when the battery performance is not much different.



4S 40A INTRODUCTION
Product Name: 4 string 14.8V 16.8V 40A lithium battery protection board
Charging voltage: DC 16.8V~17V
Continuous discharge current: 40A maximum (if the heat dissipation environment is not good, please reduce the load current)
Continuous charging current: up to 20A

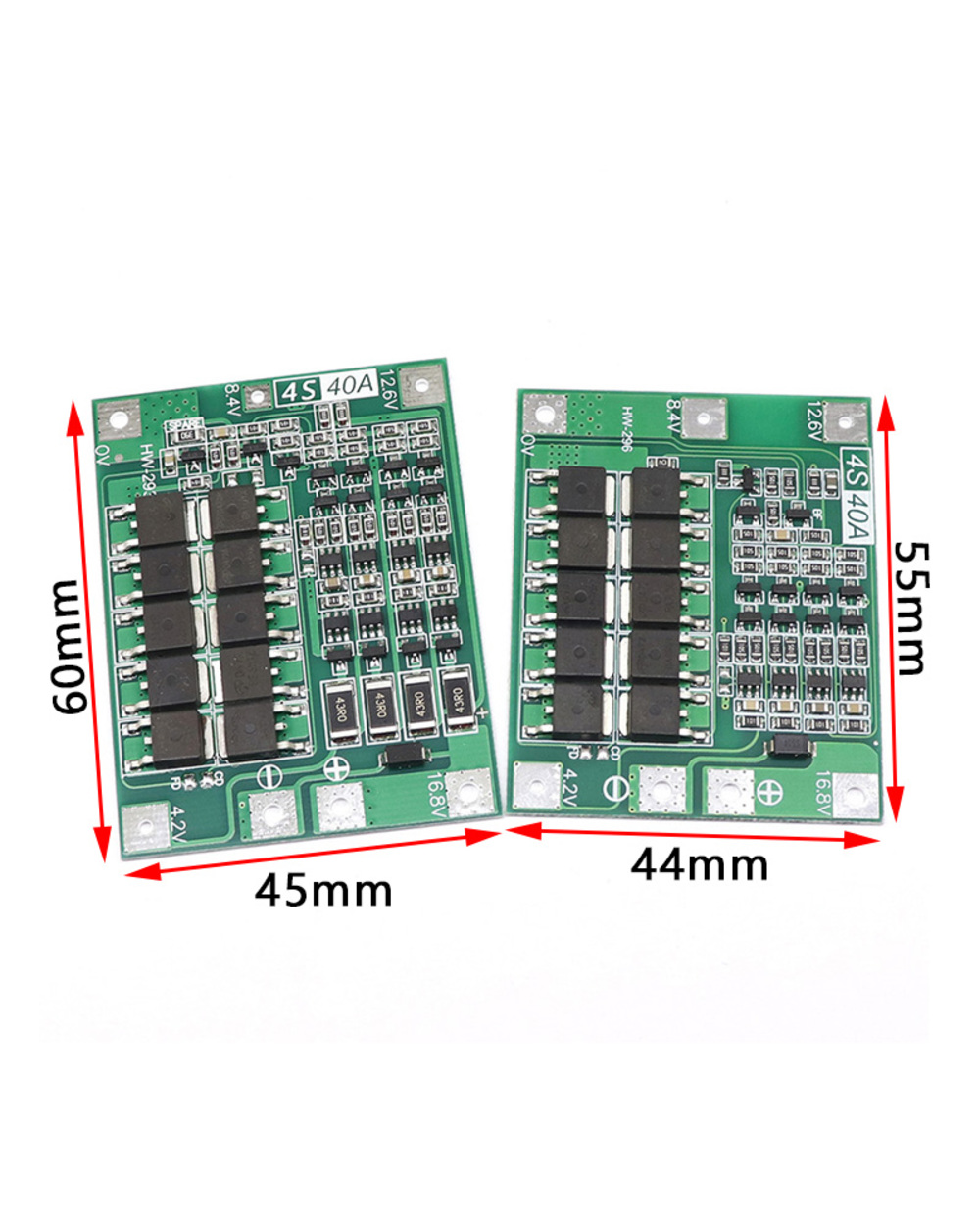

Balance Version Product size: 45*60*4mm
Enhance Version Product size: 44*55*4mm
Applicable choice: applicable to the nominal voltage of 3.7V, fully charged 4.2V lithium battery
(including 18650, 26650, polymer lithium battery), can be drilled below 170W

NOTE
Note 1: The successful start of the drill requires three 15C-20C power battery, or six 10C-15C power battery (ordinary 18650 can not start the drill!!).
Note 2: strictly according to map wiring 0V, 4.2V, 8.4V, 12.6V, 16.8V, do not deliberately short circuit.
Note 3: When the load of the brush motor is used, try to connect a non-polar capacitor (withstand voltage above 25V, capacity 10uF-100uF) to the motor's positive and negative terminals to prevent the reverse spike from the motor. Break the MOS tube.
Note 4: 4 groups of batteries in series, please ensure that the voltage of each group of batteries, if not the same, please fill each battery separately and then use in series. The The Discharge test, the voltage faster battery that group is poor battery.


The figure below shows the module discharge diagram. The battery is 4 strings. The connected battery needs to meet the 40A discharge current. It can be realized by paralleling the battery or purchasing a battery with a large discharge current. For example, the battery 2000mAH, the discharge multiple 10C, then only need 4 series 2 and the maximum current can reach the discharge current 40A, stable discharge requires 4 strings 4 and can be, and need to pay attention to heat dissipation, the discharge battery power will rapidly.

BALANCE VERSION

ENHANCE VERSION

The picture below shows the battery charging diagram, 4 series of batteries, the actual full charge, voltage 16.8V, charging voltage DC17V-18V, charging current depends on the battery connected, the maximum does not exceed 20A.

BALANCE VERSION

ENHANCE VERSION



3S 60A INTRODUCTION
Product name: 3S lithium battery protection board 60A enhanced version
1 Product description:

This product is used to charge/discharge three groups of lithium batteries in series, and each group can connect multiple lithium batteries in parallel. It can Withstand continuous charging current 20A, continuous discharge current 40A, instantaneous current below 80A. used During the process, the heat dissipation conditions should be good. If the heat dissipationcon ditions are not good, please reduce the current usage and do not let the board The has a noticeably hot feeling. During charging and discharging, it has overcharge protection, overdischarge protection, and overcurrent Protection, short circuit protection. This product can be used in electric drills, sprayers, LED lights, low power reverse Charge and discharge batteries of transformers and other products.



2Product parameters
Product model : HW-552
Size : 41 * 90 * 1mm
Charging voltage : 12.6V-13V
Maximum working current : 60A ( heat dissipation conditions are very good )
Continuous charging current ( upper limit ) : 20A
Continuous discharge current ( upper limit ) : 40
Overcurrent protection : 125A
Overcharge detection : 12.8V ( for 3 groups of batteries )
Overcharge release : 12.3V ( for 3 groups of batteriese Overdischarge detection : 2.4V ( for 1 group of batteries )
Overdischarge release : 3.0V ( for 1 group of batteries )
Short circuit protection : Yese
Working temperature : -40℃ ~ +85℃
Storage conditions : -40℃ ~ +125℃



3Instructions for use ( THREE USAGE SCENARIOS )

A.CHARGING ( OVERCHARGE PROTECTION )

( 1 ) First , the wiring must be strictly in accordance with the above figure . Use good wires and good contact Good , because even a small resistance will cause a large current to flow. Pressure and generate a lot of heat , which affects the performance of the board.
( 2 ) Connect the 13V power supply to the charging end of the board and start charging.
( 3 ) The board will detect the total series voltage of the three groups of batteries . When the voltage reaches 12 8V , the board will Turn off the battery charging circuit , this is the overcharge protection.
( 4 ) When the battery pack voltage s below 12 3V , the overcharge protection contacts and the board will open again The battery charging circuit is overcharged.
( 5 ) If the board turns on overcurrent / short circuit protection for some reason during charging , you To remove the connection on the load side , and then turn off the power and restart , you can cancel the overcurrent protection . You can also disconnect the load, wait a few seconds , and the overcurrent protection is automatically canceled.

B.DISCHARGE ( OVERDISCHARGE PROTECTION )

( 1 ) Wiring must be performed strictly in accordance with the figure above Use good wires and good contact because Even if the resistance is not too large , when a large current flows , it will cause a large voltage , and Generates a lot of heat , which affects the performance of the board.
( 2 ) Turn on the load , and the lithium battery pack supplies power to the load through the board With good heat dissipation , the board can Withstand a continuous current of 40A, if the heat dissipation is very good , even to reach 60A.
( 3 ) During the discharging process , when it is detected that the voltage of a certain group of batteries s to the over-discharge voltage limit , the board Turn on over-discharge protection and turn off discharge . Note that the battery voltage detected during board discharge Will be lower than measuring the voltage across the battery with a multimeter, which is caused by the wires and the battery , So after the over-discharge protection is turned on , you use a voltmeter to measure the voltage across the battery , which is often higher than 2.4V . In addition the " " terminal on the board and the battery indirect line are not good , which will cause overdischarge . The protection voltage is higher than 2.4V.
( 4 ) When the battery voltage rises above 3V , the over-discharge protection is releasedIf over-discharge protection is not available In addition , the load can be disconnected andthe over-discharge protection will be released

C.OVERCURRENT PROTECTION

When the current is too large , the board turns on overcurrent protection , the line connection is disconnected , and the charging or Discharge.
SUCCESSFUL START OF ELECTRIC DRILL CONDITIONS
( 1 ) The discharge current of the battery must reach the minimum starting current of the electric drill
( 2 ) The connection between the battery pack and the protection board should be as short as possible , and the wire core should be as thick as possible
( 3 ) Other conditions are found and supplemented separately
