3S 4S 40A 60A Li-Ion Lithium Battery Charger Protection Board 18650 Bms For Drill Motor 11.1V 12.6V/14.8V 16.8V Enhance

3S 4S 40A 60A Li-Ion Lithium Battery Charger Protection Board 18650 Bms For Drill Motor 11.1V 12.6V/14.8V 16.8V Enhance

$21.95
2/7
description
product reviews





3S 30A

Feture:

Scope:
Suitable for ternary lithium battery with nominal voltage of 3.7V and
full voltage of 4.2V (including 18650, 26650, polymer battery, no size
limit)

Charging voltage: 12.6V-13.6V Continuous

discharge current (upper limit): 30A If the heat dissipation environment is not good, please reduce the load current.

Continuous charging current (upper limit): 20A

Enhanced
version: Suitable for electric drills with a starting current of 60A or
less, power below 130W, or resistive loads below 378W

Balanced
version: Suitable for electric drills with starting current below 60A,
power below 130W, or resistive load below 378 with balanced charging
function.

Note 1: Three
10C-20C power batteries or six 5C-10C power batteries are required to
successfully start the drill (recommended power battery model: VTC4
VTC4A VTC5A VTC6)

Note 2:
Strictly follow the wiring of the diagram 0V, 4.2V, 8.4V, 12.6V, do not
touch any components on the board when soldering the wire, do not
intentionally short circuit

Note
3: When soldering the battery for the first time or charging, as long
as the single battery exceeds 4.2V, the 430 resistor will heat up and
discharge (discharge to about 4.19V to stop heating). If the 430
resistor is severely heated (heat is not enough to touch, please check
if the wrong line is connected)

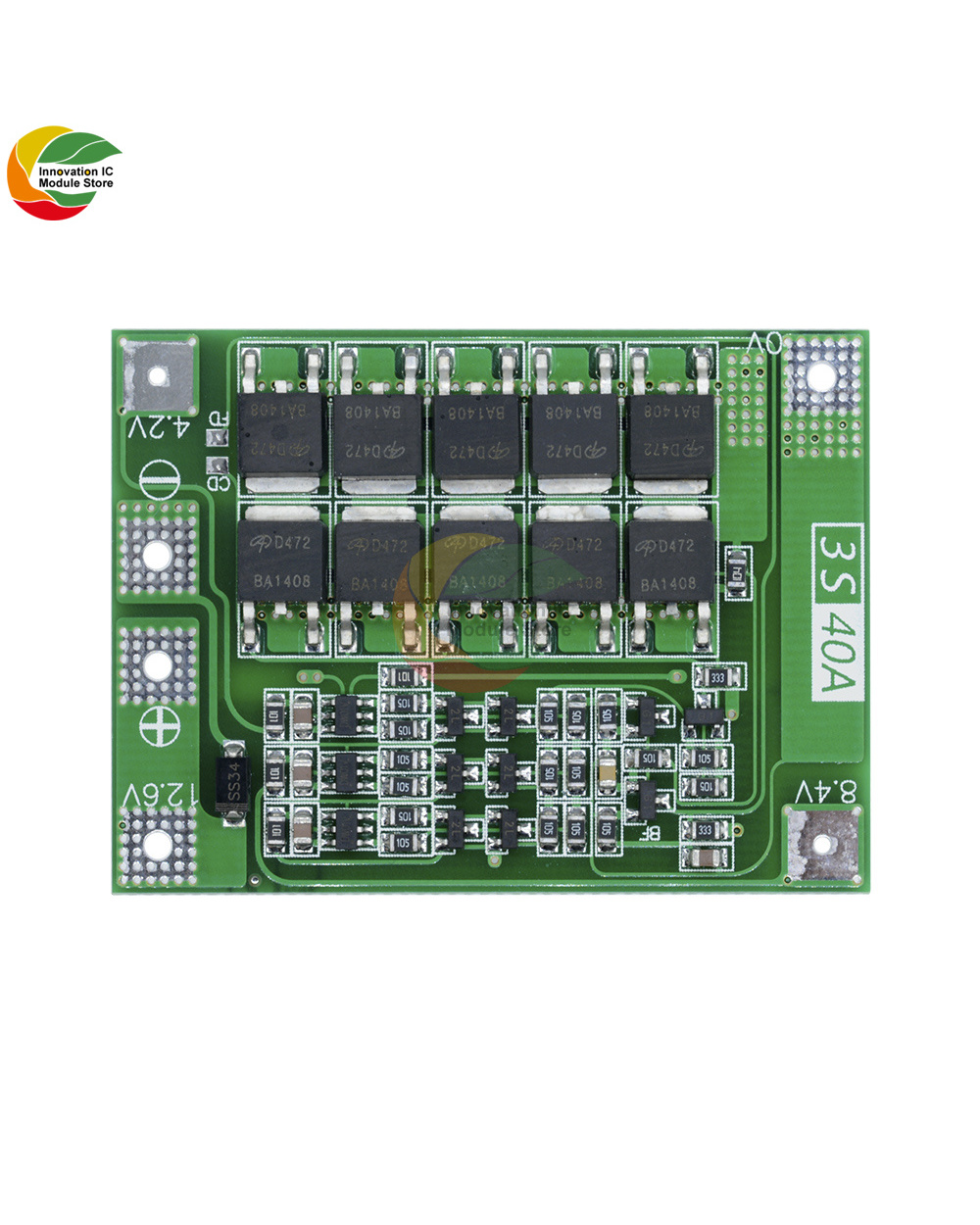

3S 40A

3S 12.6V 40A lithium battery protection board (comes with recovery function-AUTO Recovery)

Scope: Nominal voltage of 3.7V lithium battery (including 18650,26650, polymer lithium battery)

Product Size: 41 * 55 * 3.4mm (Enhanced Version), 41 * 60 * 3.4mm (Balanced version)

Product weight: 8.8g (enhanced version), 9.8g (balanced version)

Charging voltage: 12.6V - 13.6V

Continuous discharge current (upper limit): 40A (if the cooling environment is not good, please reduce the load current )

Continuous charge current (upper limit): 20A

Enhanced version:Suitable for electric drill with starting current below 80A and power below 130W .(without balanced function)

Balanced
version: Suitable for electric drill with starting current below 80A
and power below 170W .(with balanced charging function)

Note
1: To successful starting the drill requires three 15C-20C power
batteries, or six 10C-15C power batteries (ordinary 18650 battery can
not start the drill!!).

Note
2: When you wiring 0V, 4.2V, 8.4V, 12.6V, please do it strictly
according to the wiring diagram.Do not deliberately make it short
circuit.

Note 3: When the
battery is charging,the "430" resistance heating is normal,it means the
balance circuit is working.If the "430" resistance is also heating
without charging,please check if the wrong wire is connected.

Note
4: Do not use a mix of good battery and poor battery,please make sure
each battery is the same in capacity and internal resistance.



For
some of the poor basis of electronic customers to explain: balanced
charge is only auxiliary functions, try not to put a good battery and
poor battery mixed together! 3 sets of battery capacity / resistance
closer to the better! (2 good battery +1 Poor battery use effect = 3
poor battery use effect).

3S 60A

Description:

3S 12.6V 60A lithium battery protection board

Scope:
Suitable for lithium battery with 3.7V nominal voltage and 4.2V limited
charge voltage. (includes 18650,26650, polymer lithium battery)

Size:41*55*3.4mm(Enhanced version),41*62*3.4(Balanced version).

Weight:8.8g(Enhanced version),9.8g(Balanced version).

Charging voltage: 12.6V - 13.6V

Continuous discharge current (upper limit): 60A (if the cooling environment is not good, please reduce the load current)

Continuous charge current (upper limit): 15A



Enhanced
version: suitable for electric drill with starting current below 120A
and power below 260W .(without balanced charging function)

Balanced
version: suitable for electric drill with starting current below 120A
and power below 260W .(with balanced charging function)



Note
1: To successful starting the drill requires three 10C-20C power
batteries, or six 5C-10C power batteries ( recommended battery:SONY
VTC4,VTC4A,VTC5A,VTC6).Ordinary 18650 battery can not start the
drill!Requires 0V and 12.6V copper wire which is no less than 4SQMM(Can
not use nickel!!!).

Note 2:
When you wiring 0V, 4.2V, 8.4V, 12.6V, plese do it strictly according to
the wiring diagram. Do not deliberately make it short circuit.

Note
3: When the battery is charging,the "430" resistance heating is
normal,it means the balance circuit is working.If the "430" resistance
is also heating without charging,please check if the wrong wire is
connected.

4S 40A

4S 16.8V 40A lithium battery protection board (comes with recovery function-AUTO Recovery)

Scope: Nominal voltage of 3.7V lithium battery (including 18650,26650, polymer lithium battery)

Charging voltage: 16.8V - 18.1V

Continuous discharge current (upper limit): 40A (if the cooling environment is not good, please reduce the load current use)

Continuous charge current (upper limit): 20A

Enhanced version: suitable for electric drill with starting current below 80A and power below 180W .(without balanced function)

Balanced
version: suitable for electric drill with starting current below 80A
and power below 230W .(with balanced charging function)

Note
1: To successful starting the drill requires three 15C-20C power
batteries, or eight 10C-15C power batteries (ordinary 18650 battery can
not start the drill!!).

Note
2: When you wiring 0V, 4.2V, 8.4V, 12.6V, 16.8V, plese do it strictly
according to the wiring diagram. Do not deliberately make it short
circuit.

Note 3: When the
battery is charging,the "430" resistance heating is normal,it means the
balance circuit is working.If the "430" resistance is also heating
without charging,please check if the wrong wire is connected.

Note
4: 4 groups of batteries in series, please ensure that the voltage of
each group of batteries, if not the same, please fill each battery
separately and then use in series. The The Discharge test, the voltage
faster battery that group is poor battery.
