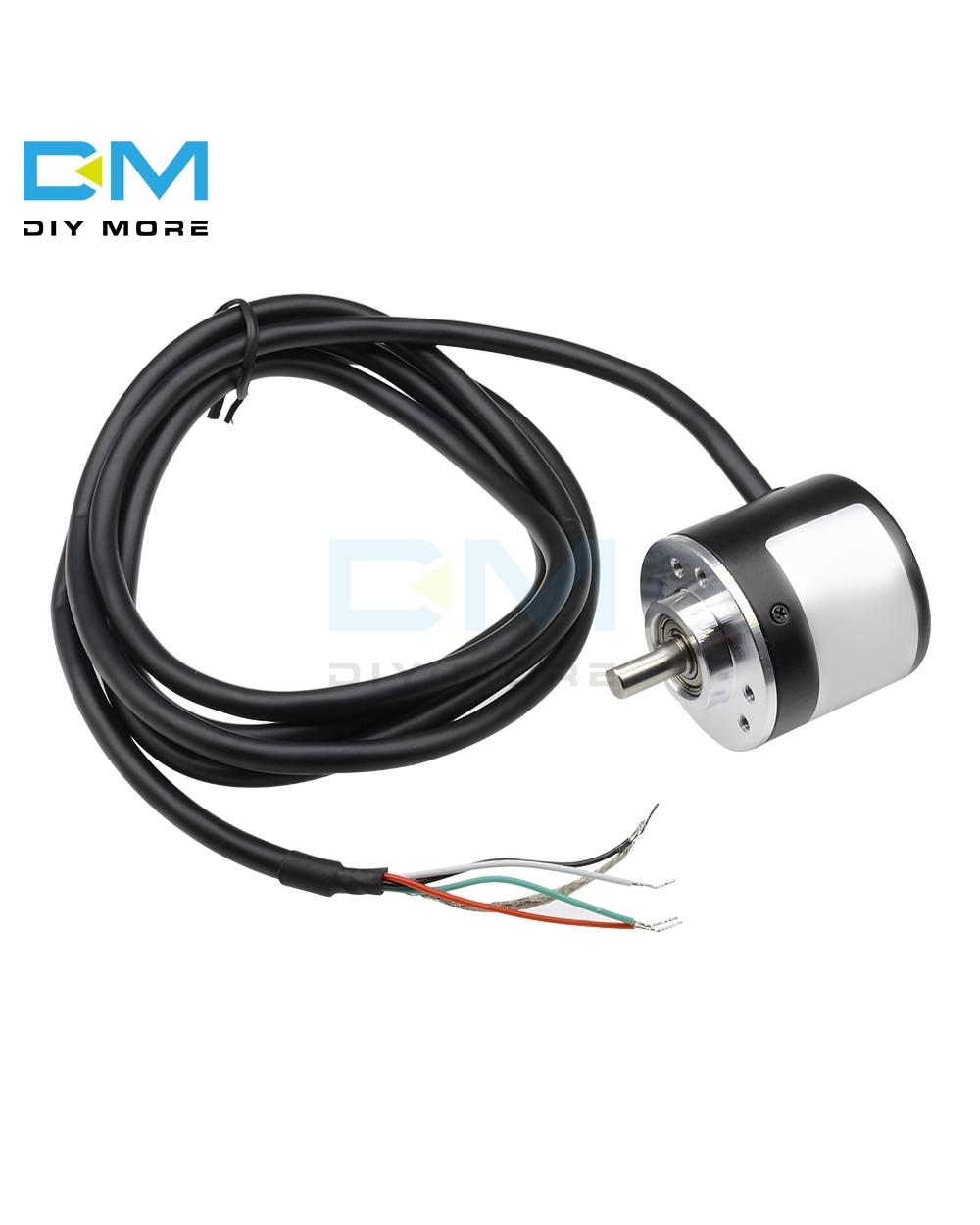

360 600 P/R Encoder Dc 5V-24V Encoder 360P 600P Incremental Rotary Ab 2 Phases 6Mm Shaft Suit For Displacement Measurem

360 600 P/R Encoder Dc 5V-24V Encoder 360P 600P Incremental Rotary Ab 2 Phases 6Mm Shaft Suit For Displacement Measurem

$26.95
2/7
description
product reviews
Encoder 360 Incremental Rotary
360 p/r (Single-phase 360 pulses /R,Two phase 4 frequency doubling to 1440 pulses)
Power source: DC5-24V

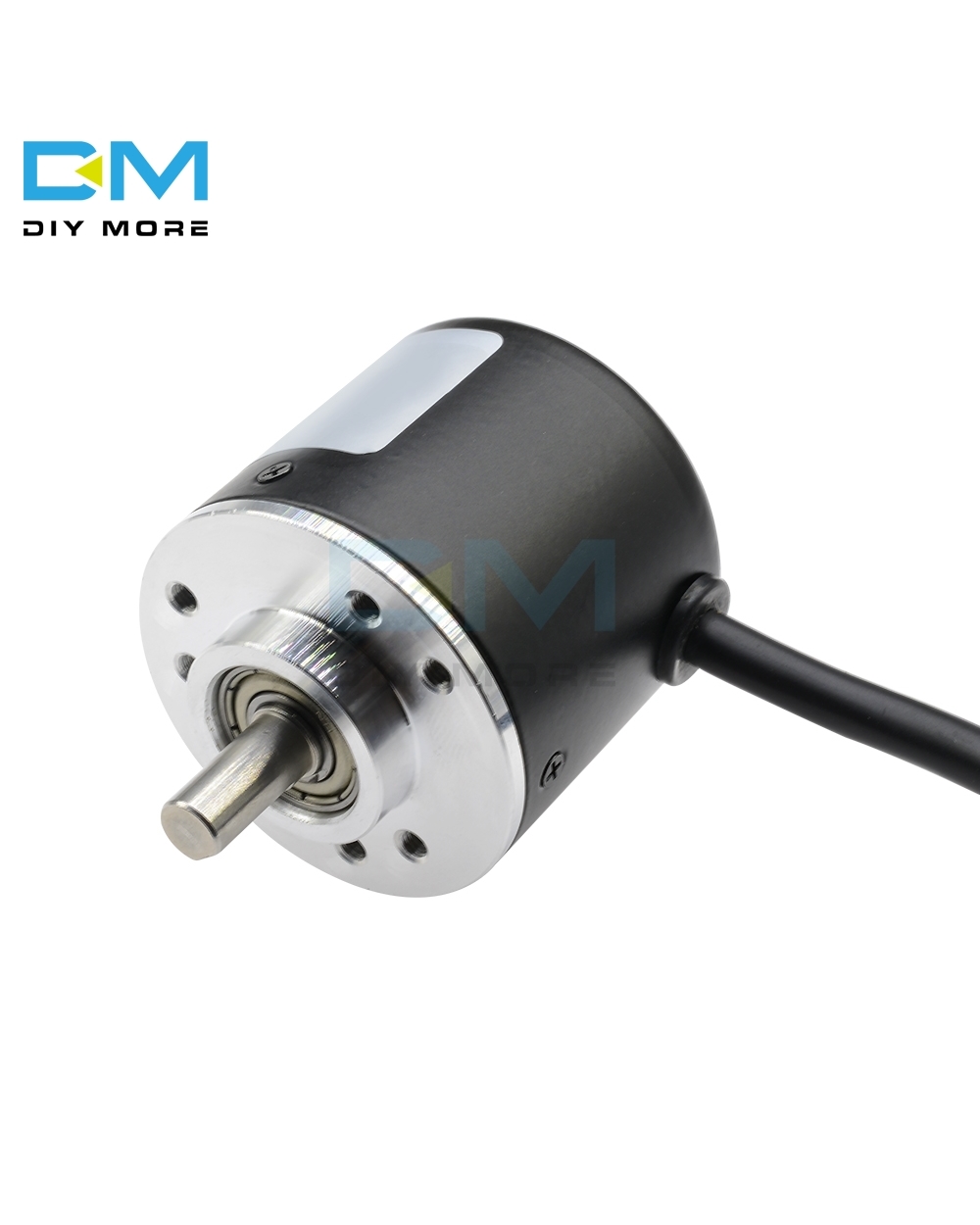

Shaft: 6*13mm/0.23*0.51"

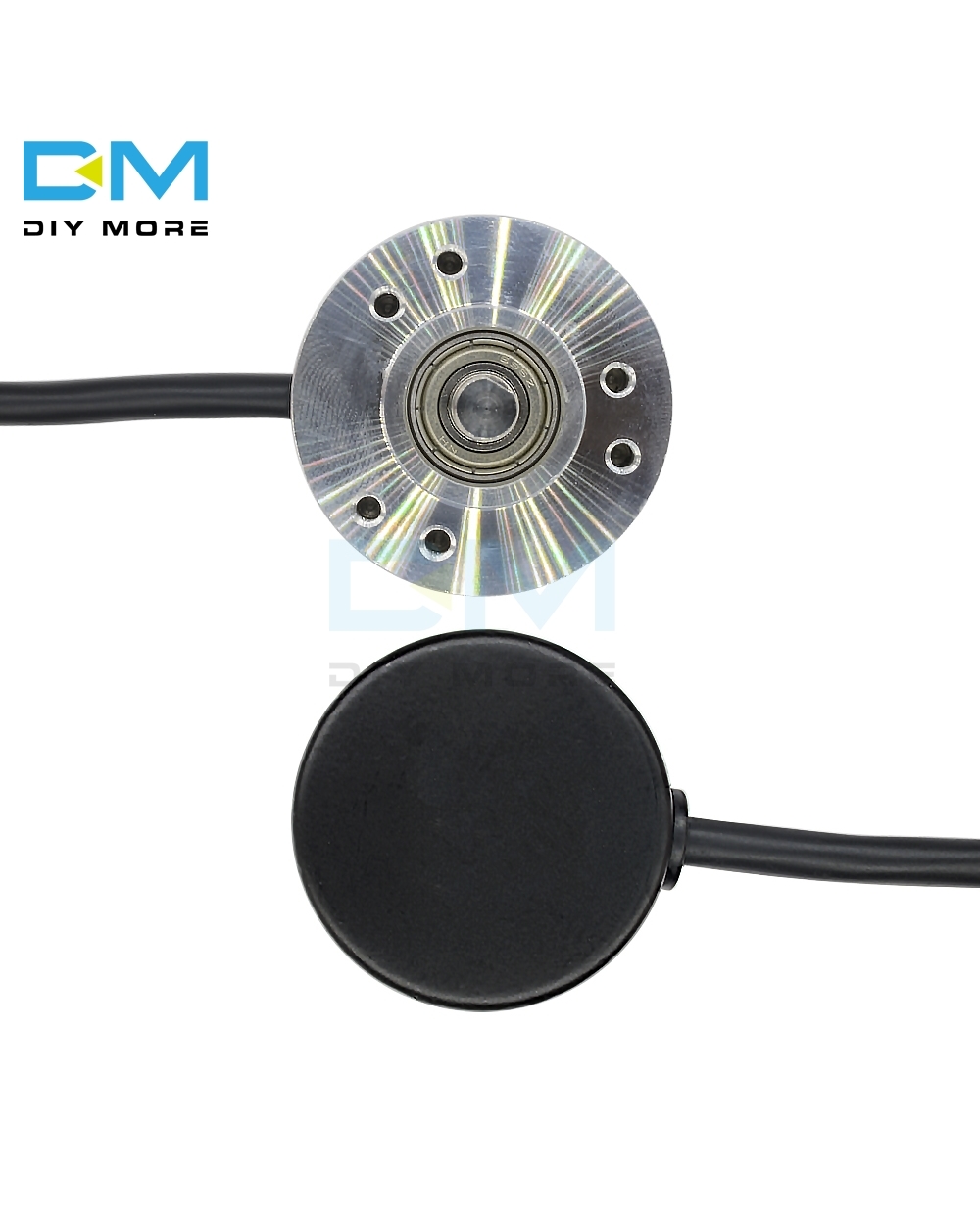

Size: 38*35.5mm/1.49*1.39"
Output :AB 2phase output rectangular orthogonal pulse circuit, the output for the NPN open collector output type
Maximum mechanical speed: 5000 R / min
Response frequency: 0-20KHz
Cable length: 1.5 meter
Notice:AB 2phase output must not be directly connected with VCC, otherwise, will burn the output triode, because different batches, and may not have the terminal

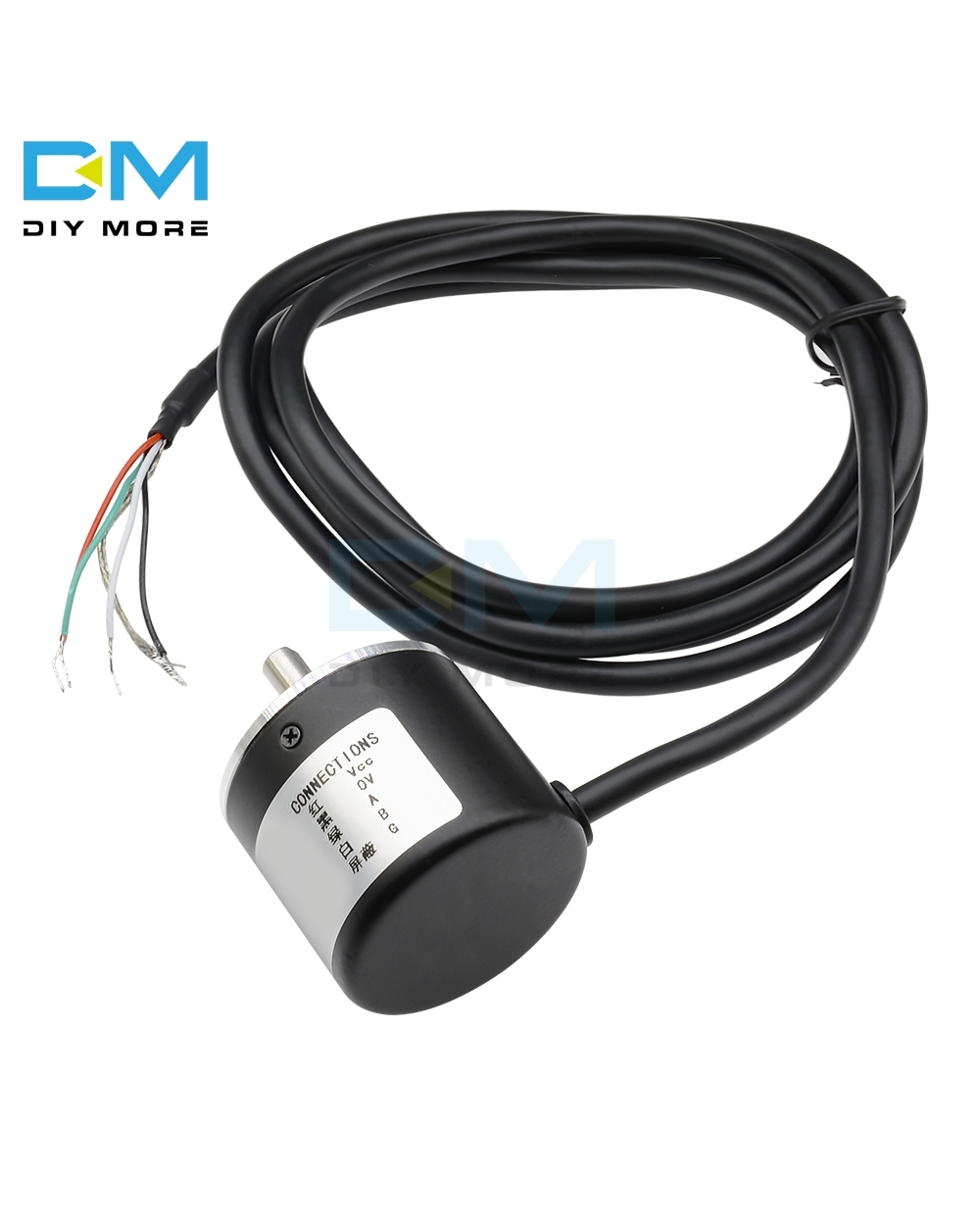

connection:
Green = A phase, white = B phase, red = Vcc power +, black = V0
Application:
Is used to measure the rotational speed, Angle and acceleration of the object and the length measurement
Suitable for intelligent control of various displacement measurement, automatic fixed-length leather automatic guillotine machines, steel cut length control, civil measured height human scale, Students racing robots
Package includes:
1 x Encoder 360P/R Incremental Rotary Encoder

Encoder 600 Incremental Rotary
600 p/r (Single-phase 600 pulses /R,Two phase 4 frequency doubling to 2400 pulses)
Power source: DC5-24V
Shaft: 6*13mm/0.23*0.51"
Size: 38*35.5mm/1.49*1.39"
Output :AB 2phase output rectangular orthogonal pulse circuit, the output for the NPN open collector output type
Maximum mechanical speed: 5000 R / min
Response frequency: 0-20KHz
Cable length: 1.5 meter
Notice:AB 2phase output must not be directly connected with VCC, otherwise, will burn the output triode, because different batches, and may not have the terminal
connection:
Green = A phase, white = B phase, red = Vcc power +, black = V0
Application:
Is used to measure the rotational speed, Angle and acceleration of the object and the length measurement
Suitable for intelligent control of various displacement measurement, automatic fixed-length leather automatic guillotine machines, steel cut length control, civil measured height human scale, Students racing robots
Package includes:
1 x Encoder 600P/R Incremental Rotary Encoder




2/7

360 600 P/R Encoder Dc 5V-24V Encoder 360P 600P Incremental Rotary Ab 2 Phases 6Mm Shaft Suit For Displacement Measurem

$26.95
