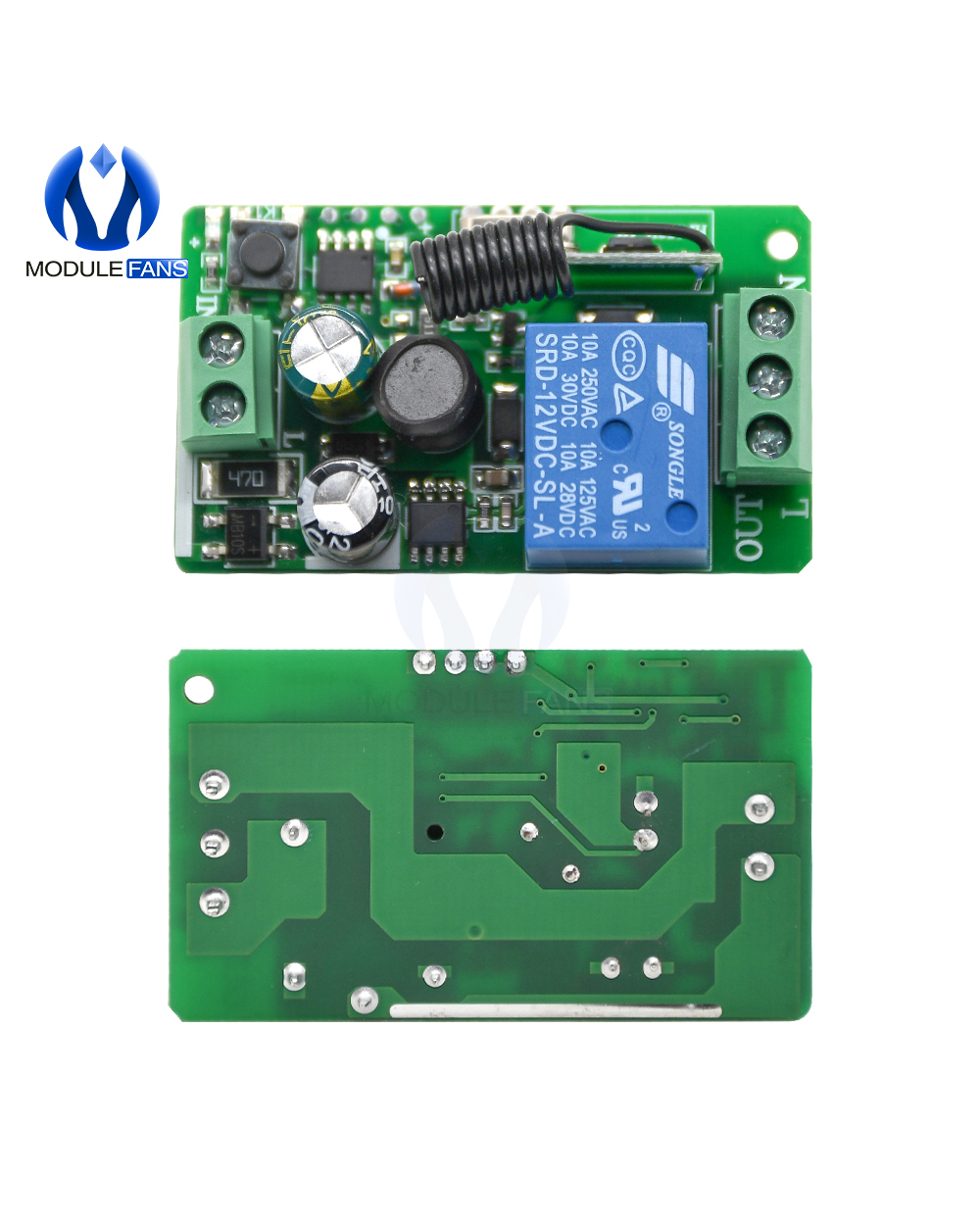

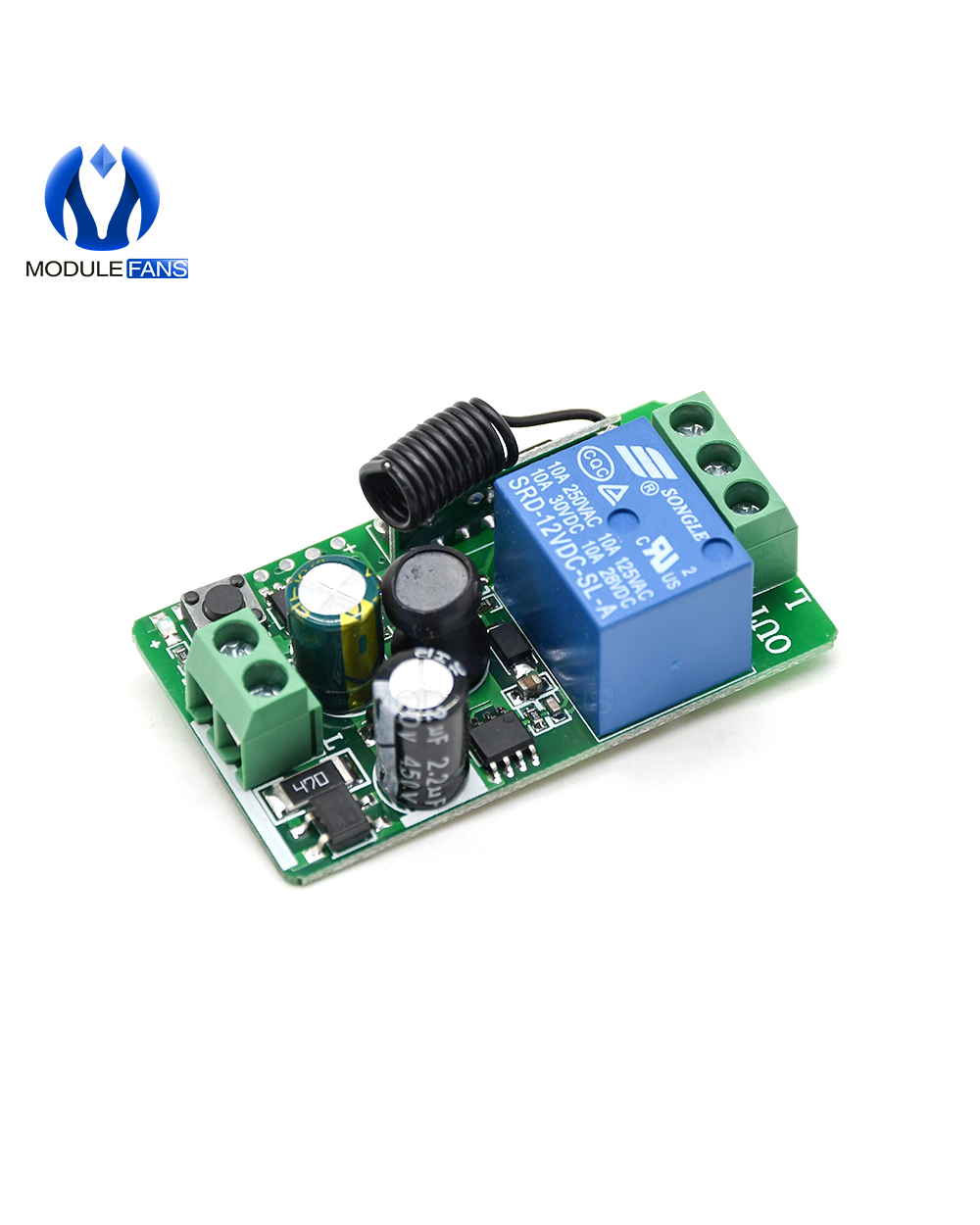

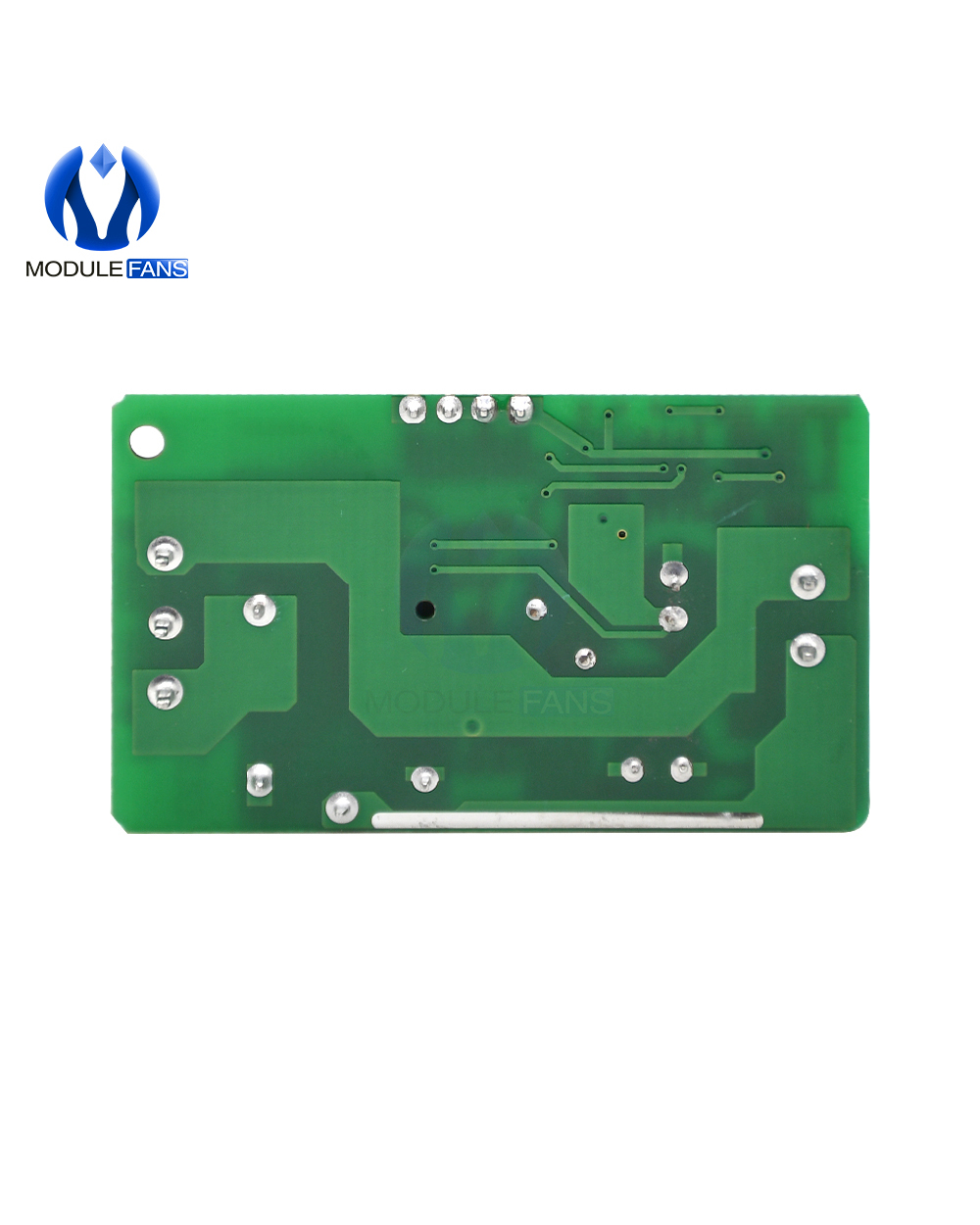

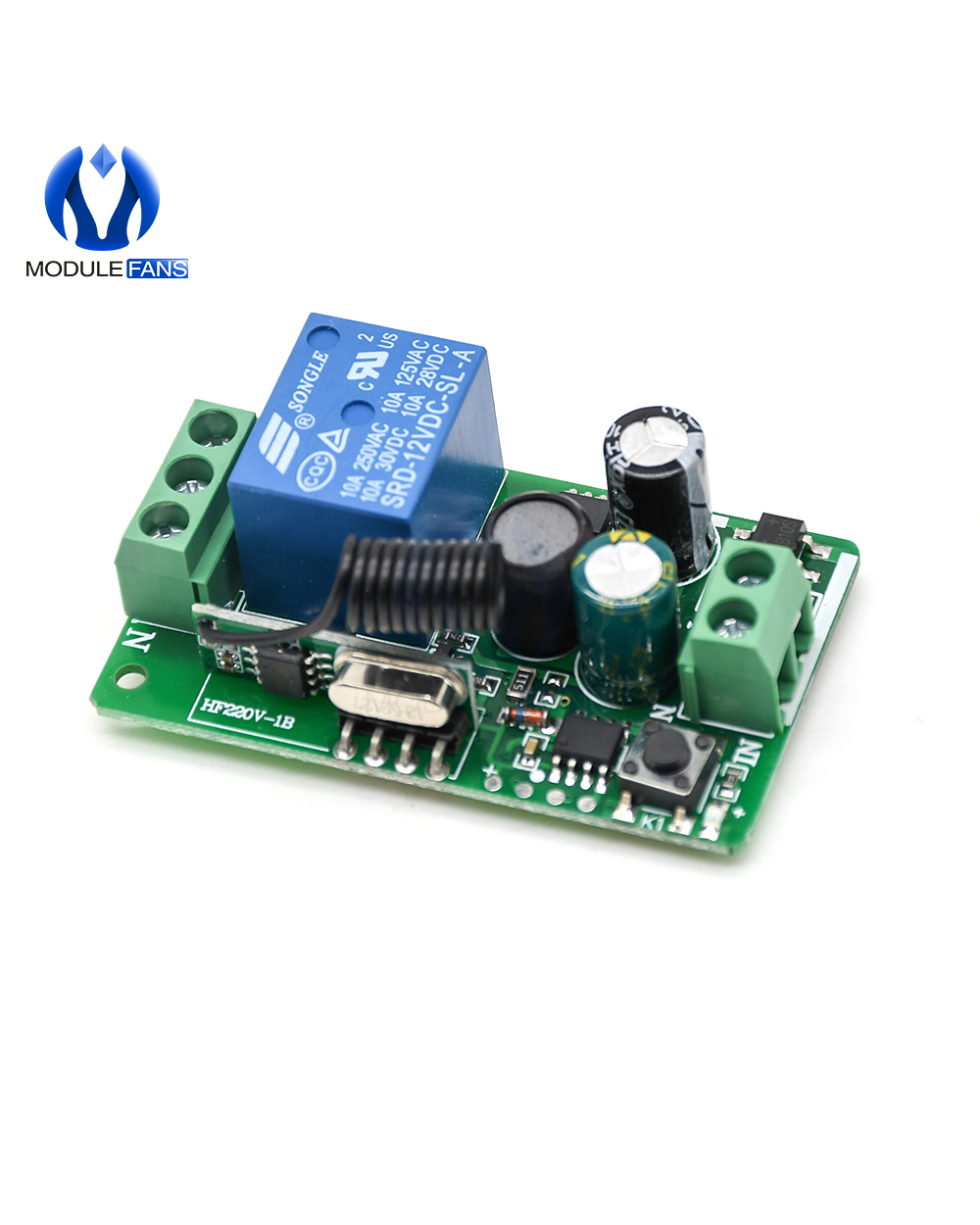

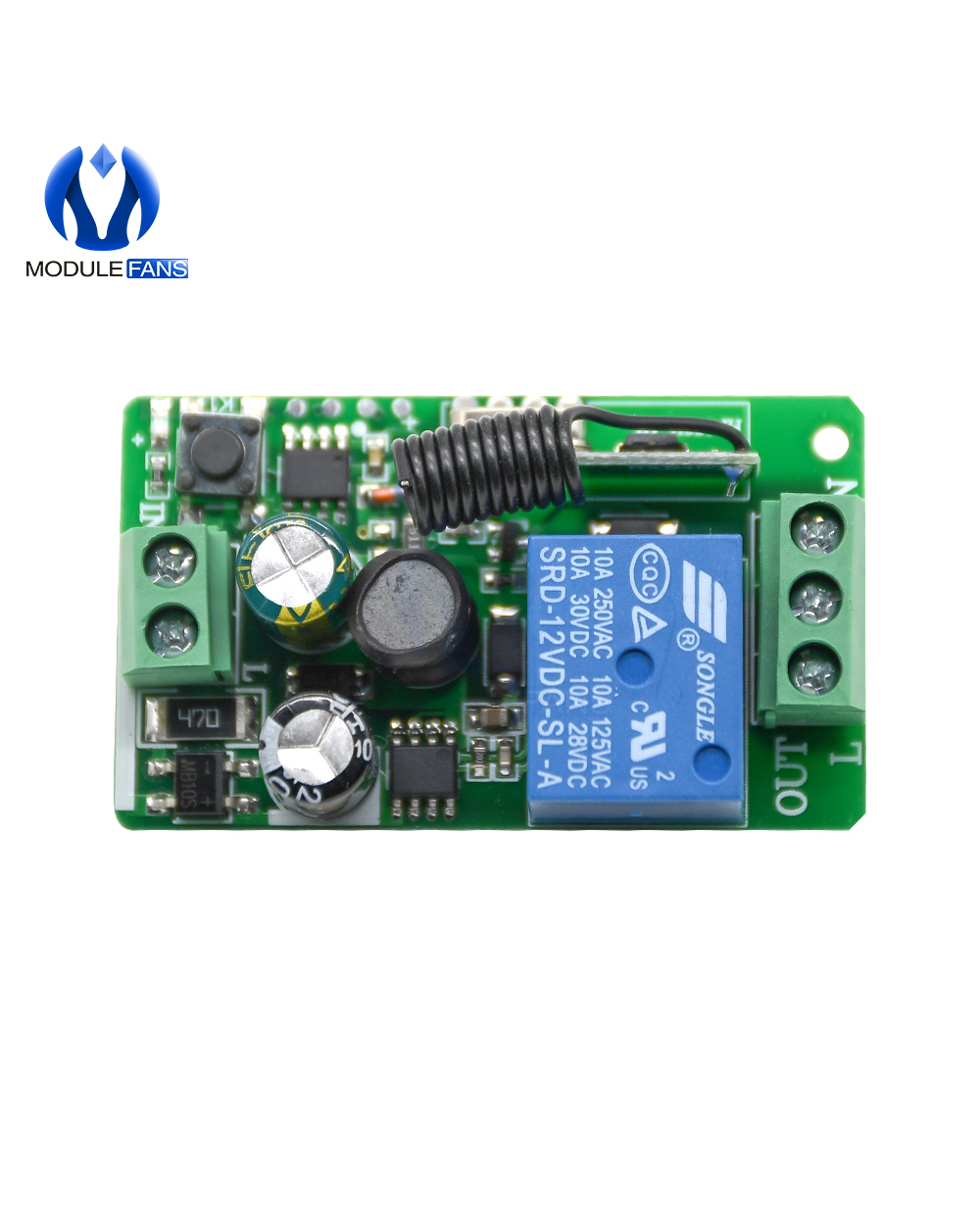

315Mhz 433Mhz 315 433 Mhz Ac 85- 220V 10A 1 Ch Channel Wireless Rf Remote Control Board Transmitter Receiver Relay Swit

315Mhz 433Mhz 315 433 Mhz Ac 85- 220V 10A 1 Ch Channel Wireless Rf Remote Control Board Transmitter Receiver Relay Swit

$20.95
2/7
description
product reviews


Specification:
1.Input Voltage: AC85V-AC220V
2.RF Frequency: 315/433MHZ
3.RF Working mode:Super heterodyne receiver
4.Receiver Sensitivity: -107dBm
5.Remote Control Distance: >100 meter(In open environment)
6.Decoding Way: MCU Software decoding
7.Can store the number of remote control:16
8.Support remote control type: Fixed code, learning code
9.Channel: 1CH
10.Multiple working modes: (Jog/Non-Latched ,inter-lock/Latched ,self-lock /Self-Latched)
11.Wiring Method:Fixed wiring terminal
12.Rated load:10A 250VAC / 10A 125VAC
10A 30VDC / 10A 28VDC
13.Dimension:5.4cm*3.1cm*1.4cm


Working/output way:
1.Jog/Non-Latched: Press one button is Working /ON. Loosen your finger on the same button is Stop/OFF. One channel switch need one buttons remote control.
2.Self -lock/Self-Latched: Press one button for one time is working/ON. Press the same button again is stop/OFF. One channel switch need one buttons remote control.
3.Inter-lock /Latched: Press one button is working/ON, press another button is stop/OFF. One channel switch need 2 buttons remote control.

Clear & Learn Code:
1. Clear function - After pressing the "KEY" button 8 times, the LED will go off and release all the remote control data in the memory. When the LED flashes for 5 times, it indicates that the clear function is completed.
2, learning function - click the learning button "KEY", LED indicator light indicates that the microprocessor to enter the learning state of the code, press the matching wireless remote control button, LED light blinks 3 times then turn off means Code success.
3. LED flashes to determine the selected function.
* Flashing 1 time - Jogging function
* Flashing 2 times - Self-locking function
* Blink 3 times - Interlock function


Notice:When using for the first time, make sure to clear the factory code and clear the remote control code.

you could choose

1 x 355mhz 220V 1 Channel Wireless Relay Switch

1 x 433mhz 220V 1 Channel Wireless Relay Switch





2/7
