2.8 3.2 Inch Tft/Sd Shield Expansion Board Module Development Board For Arduino Due Mega 2560 Lcd Module Sd Card Adapter

2.8 3.2 Inch Tft/Sd Shield Expansion Board Module Development Board For Arduino Due Mega 2560 Lcd Module Sd Card Adapter

$23.95
2/7
description
product reviews





Description:



1. The IO of MEGA is officially 5V, TFT LCD use 3.3V IO. This CTE TFT LCD/SD shield for Arduino MEGA provides the connection to a TFT LCD module directly without flying wires.

2. The shield use TRUE 5V to 3.3V level translation IC, therefore, it is compatible with many TFT LCD modules. Compatibility is highest when compared to ordinary TFT Shield, which use resistors or buffer to "shift" 5V to 3.3V. Compatibility issues may arise when using this method to translate IO level to 3.3V, especially at high write speed

3. The shield fits two type of TFT LCD module's pinout:

(1) 40 pin version LCD which is commonly used in previous version of TFT Mega shield for Arduino MEGA 2560

(2) 32 pin version LCD which is commonly used in STM32 development board(unsoldered)

4. For Arduino MEGA 3.3V is 150mA, the output may not be enough for driving larger screen (e.g. 7", 5" LCD modules). Therefore, this shield has a onboard 1A 3.3V regulator to supply enough current to the screen.



The shield is suitable for Arduino MEGA 2560 and the following LCD:

2.2" TFT LCD module (220x176)

2.8" TFT LCD module (320x240)

3.2" TFT LCD module with font IC (320x240)

3.2" High Resolution TFT LCD Module with font IC (480x320)

3.5" TFT LCD module with font IC (480x320) (full viewing angle IPS panel)

4.0" TFT LCD module with font IC (480x320)

4.3" TFT LCD module with font IC (480x272)

5.0" TFT LCD module with font IC (800x480)

7.0" TFT LCD module with font IC (800x480)



Package Included:



1 X TFT/SD Shield Expansion Board for Arduino Mega 2560



Description:

1. TFT LCD in a much faster speed using 84Mhz Ardiuno DUE

2. The shield route all the LCD data pins to port PC1-PC8 and PC12-19, control pins to PD0-PD3,this design can acheive high speed data transfer (three cycles per write strobe to the LCD) to maximize LCD display speed

3. The SPI interface (for SD or flash control) is route to the ISP header of for Arduino DUE,so that high speed SPI transfer with DMA can be achieved



The shield is compatible with for Arduino DUE and the following LCD:

2.2" TFT LCD module (220x176)

2.8" TFT LCD module (320x240)

3.2" TFT LCD module with font IC (320x240)

3.2" High resolution TFT LCD module with font IC (480x320)

3.5" TFT LCD module with Font IC (480x320) (Full viewing angle IPS panel)

4.0" TFT LCD module with Font IC (480x320)

4.3" TFT LCD module with Font IC (480x272)

5.0" TFT LCD module with Font IC (800x480)

7.0" TFT LCD module with Font IC (800x480)



Feature:

1. Drive TFT LCD on for Arduino DUE by just plugging into for Arduino DUE main board, no flying wires

2. Compatible with 40-pin version LCD, which is commonly used in TFT DUE shield

3. Also comptabile with 32-pin version LCD, which is commonly used in STM32 development board

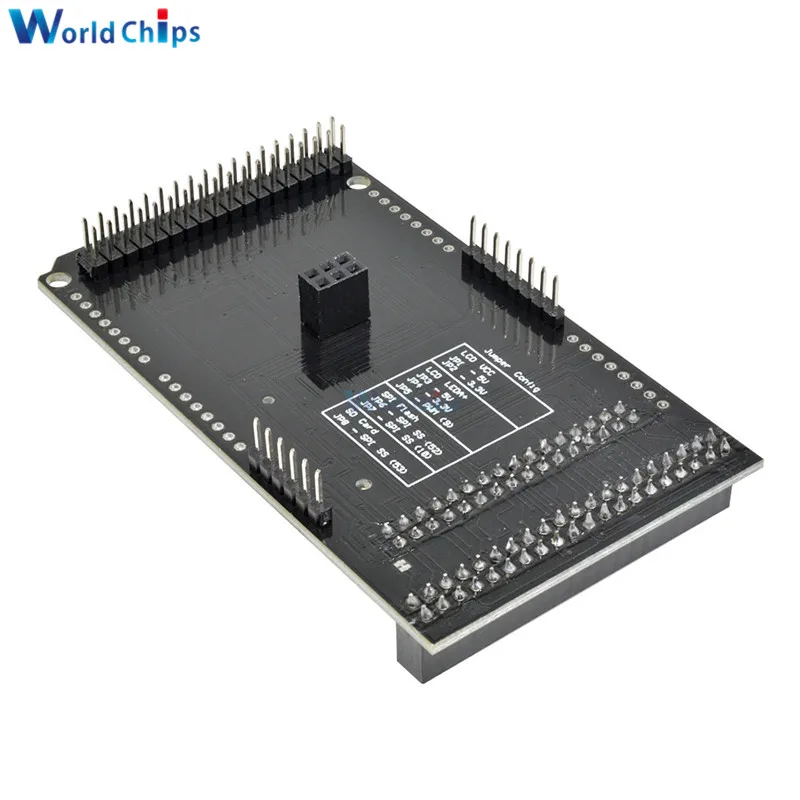

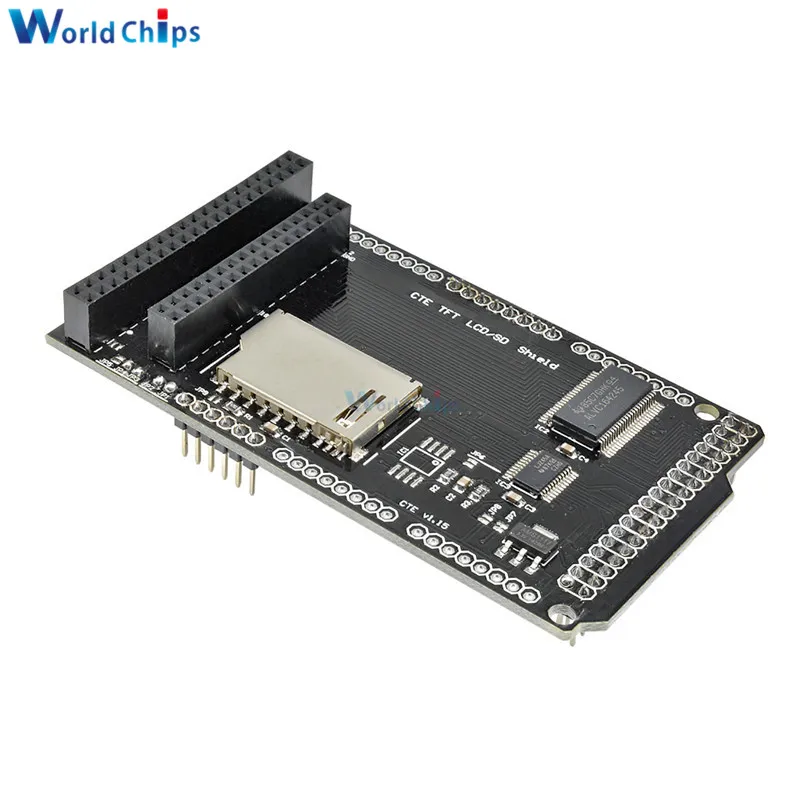

4. On board SD card slot with adjustable CS selection

5. On board SPI flash footprint with adjustable CS selection,for upgrade include font IC to draw text to the LCD and also support SPI Flash library

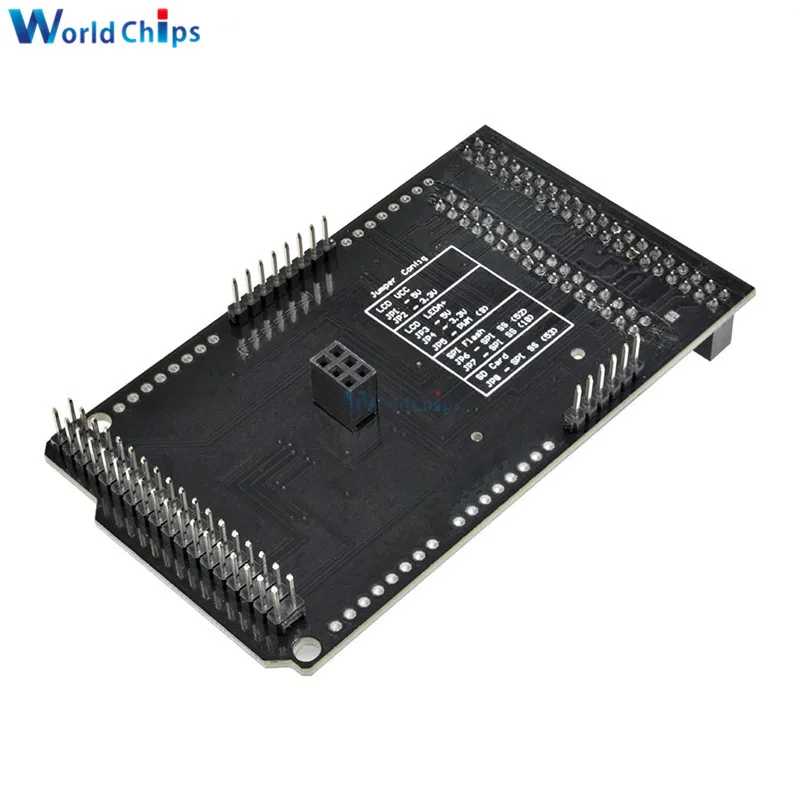

6. LCD power 3.3V and 5V selectable through solder jumpers

7. LCD backlight (LEDA+) 3.3V, 5V or PWM selectable through solder jumpers

8. Pins are routed to reduce CPU cycles, display speed is faster



Package included:

1 X TFT/SD Shield Expansion Board for Arduino DUE LCD Module
