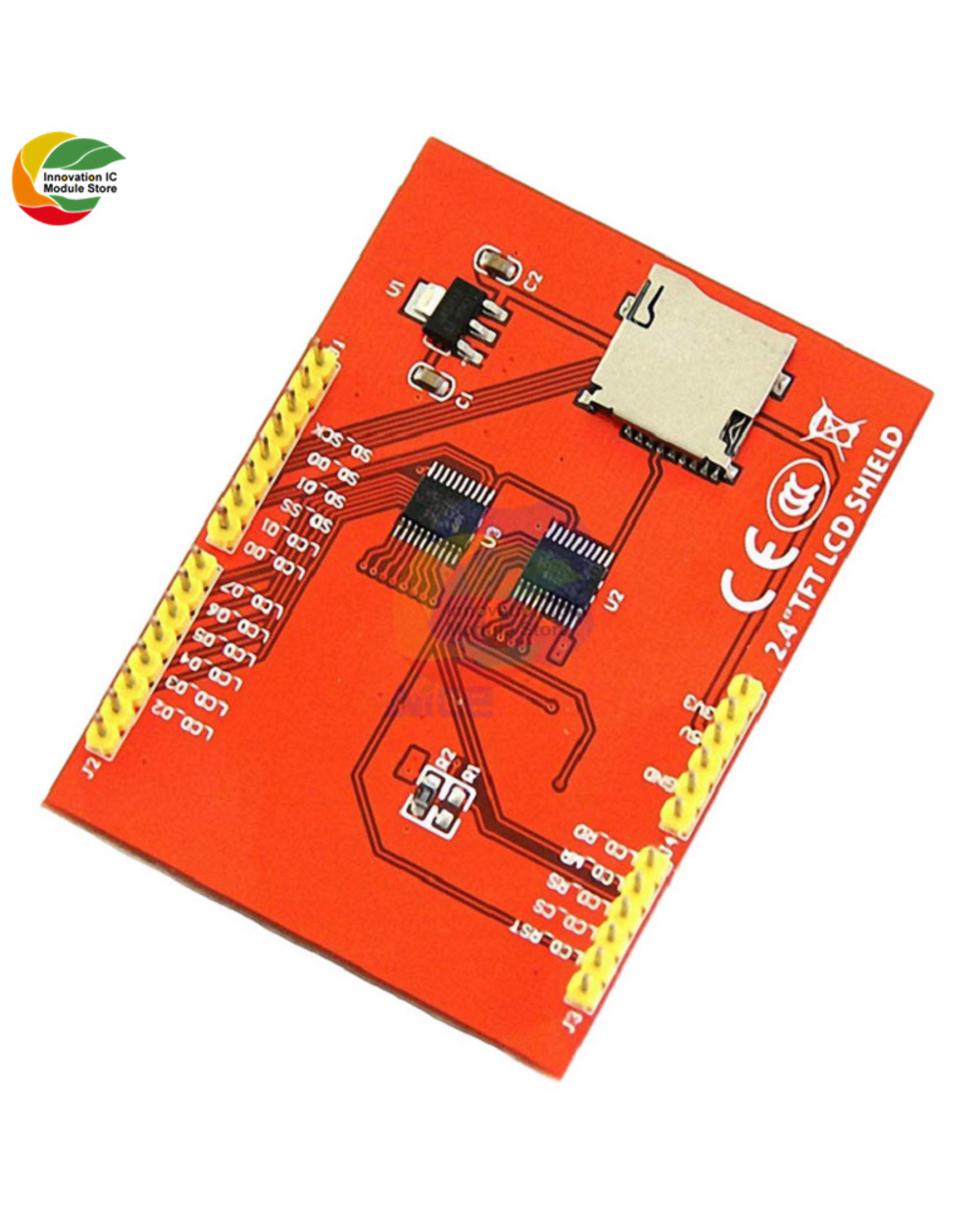

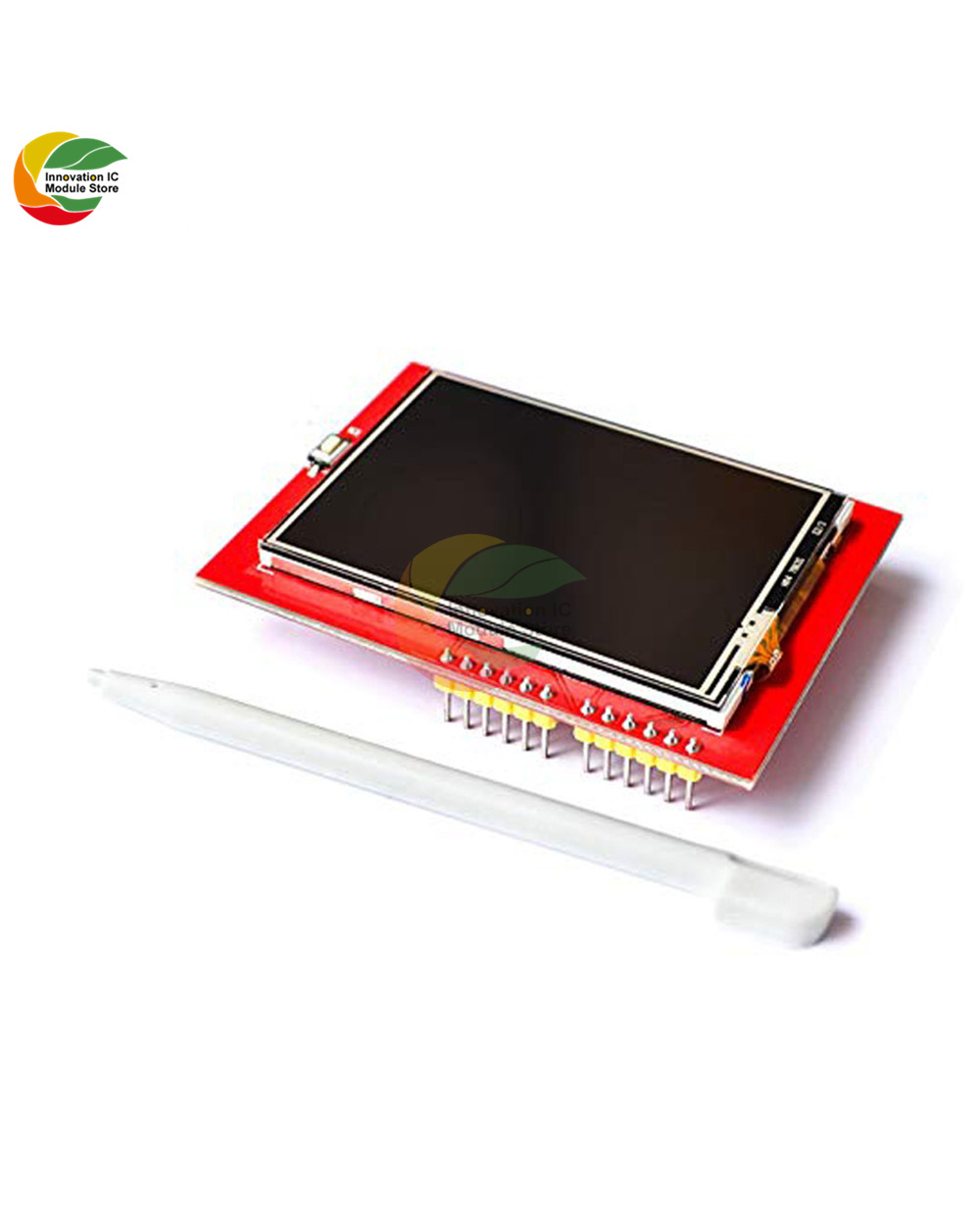

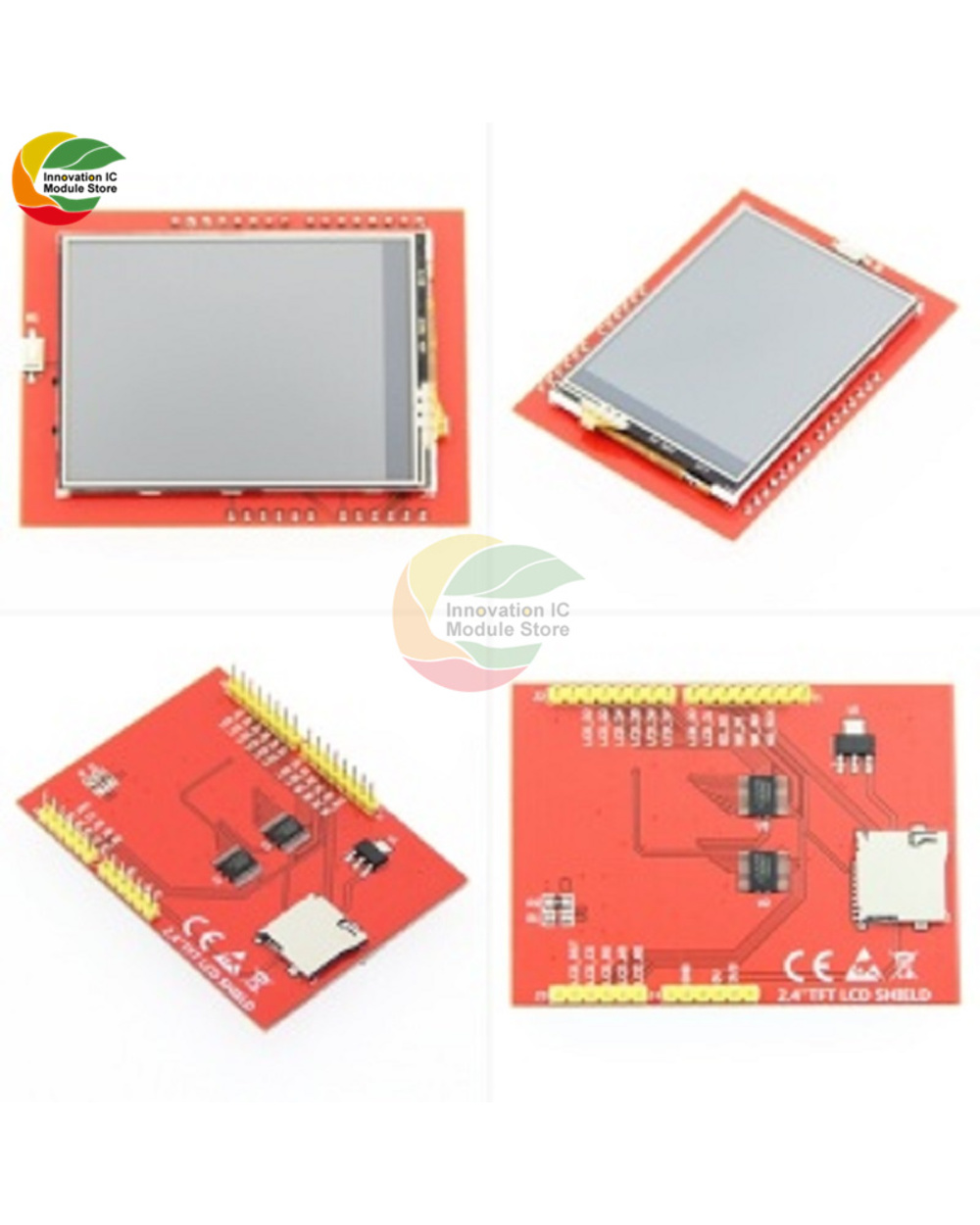

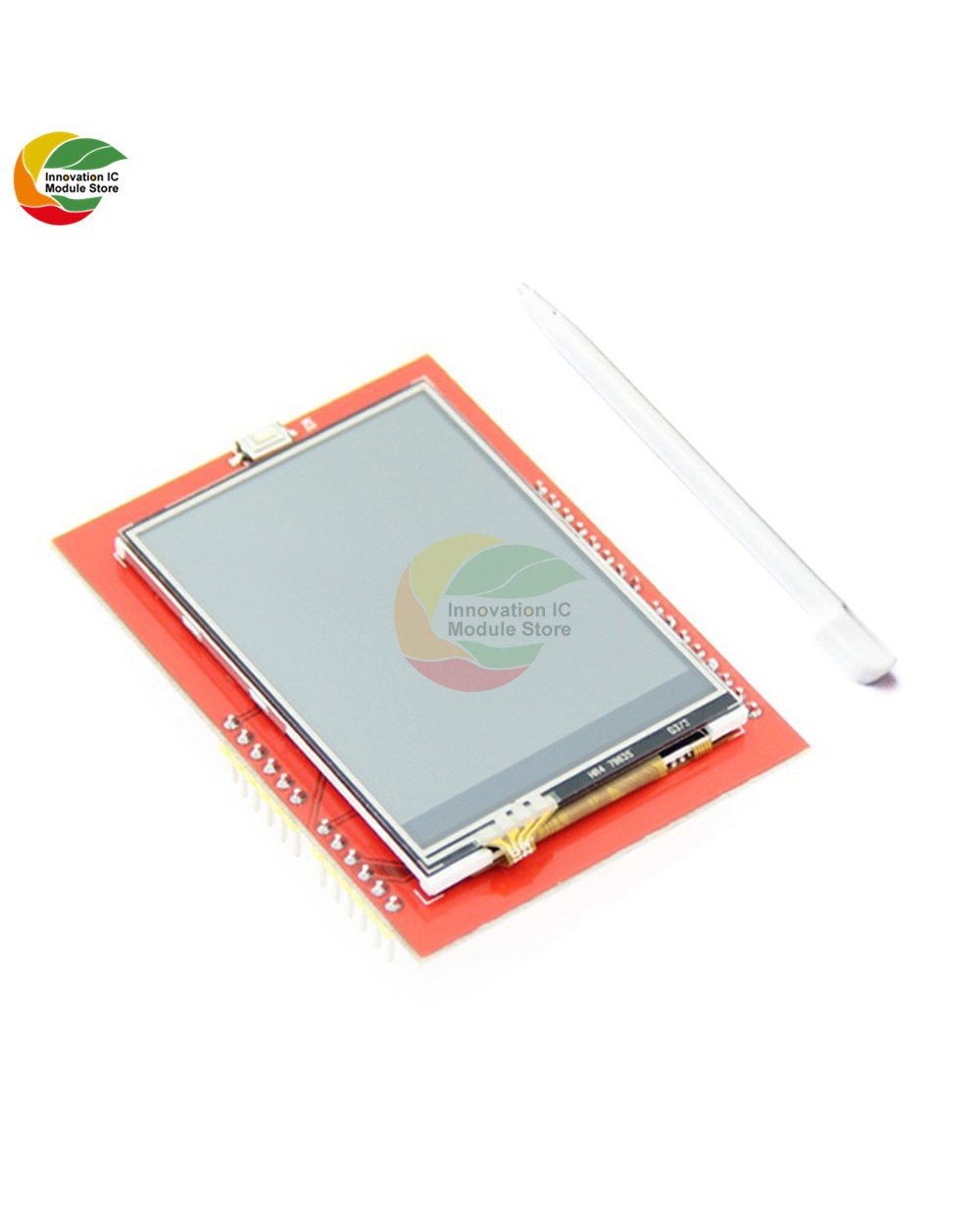

2.4 Inch Tft Lcd Shielded Touch Screen Display Module 320X240 Ultra Hd Ili9341 Driver For Arduino Mega2560 R3 With Styl







Supports development boards such as Arduino UNO and Mega2560 for plug-in use without wiring
320X240 resolution, clear display, support for touch function
Support 16-bit RGB 65K color display, display rich colors
8-bit parallel bus, faster than serial SPI refresh
On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage
Easy to expand the experiment with SD card slot
Provides an Arduino library with a rich sample program
Military-grade process standards, long-term stable work
Provide underlying driver technical support
Name | Parameter |
Display Color | RGB 65K color |
Screen Size | 2.4(inch) |
Type | TFT |
Driver IC | ILI9341 |
Resolution | 320*240 (Pixel) |
Module Interface | 8-bit parallel interface |
Active Area | 48.96*36.72(mm) |
Module PCB Size | 72.20*52.7(mm) |
Operating Temperature | -20℃~60℃ |
Storage Temperature | -30℃~70℃ |
Operating Voltage | 5V/3.3V |
Power Consumption | TBD |
Product Weight(Package containing) | 39(g) |
Number | Pin Label | Pin Description |
1 | LCD_RST | LCD bus reset signal, low level reset |
2 | LCD_CS | LCD bus chip select signal, low level enable |
3 | LCD_RS | LCD bus command / data selection signal, low level: command, high level: data |
4 | LCD_WR | LCD bus write signal |
5 | LCD_RD | LCD bus read signal |
6 | GND | Power ground |
7 | 5V | 5V power input |
8 | 3V3 | 3.3V power input, this pin can be disconnected |
9 | LCD_D0 | LCD 8-bit data Bit0 |
10 | LCD_D1 | LCD 8-bit data Bit1 |
11 | LCD_D2 | LCD 8-bit data Bit2 |
12 | LCD_D3 | LCD 8-bit data Bit3 |
13 | LCD_D4 | LCD 8-bit data Bit4 |
14 | LCD_D5 | LCD 8-bit data Bit5 |
15 | LCD_D6 | LCD 8-bit data Bit6 |
16 | LCD_D7 | LCD 8-bit data Bit7 |
17 | SD_SS | SD card SPI bus chip select signal, low level enable |
18 | SD_DI | SD card SPI bus MOSI signal |
19 | SD_DO | SD card SPI bus MISO signal |
20 | SD_SCK | SD card SPI bus clock signa |
How to use on Arduino
Step 1: Download the test program
Download the Arduino test program from the Program Download column
For a description of the relevant test procedures, please refer to the test program documentation in the package
Step 2: Connect the Arduino development board
Plug the module directly into the Arduino development board (Do not plug in?)
After the module is plugged in, power on the Arduino board
Step 3: Copy the dependent library
Make sure the Arduino IDE is installed on your computer (if it is not installed: Arduino IDE download URL)
After installing the Arduino IDE, you need to copy the dependent library to the Arduino project directory as follows:
(1) Decompress the downloaded test package(2) Copy the dependent libraries in the Install libraries directory in the package (shown below) to the libraries folderof the Arduino project directory (Don't know the Arduino project directory?)
Step 4: Compile and download the program to the development board
Open the sample in the Example directory of the package to test, compile and download(Don't know how to compile and download?)
Step 5: Observe the running of the program
After the program is downloaded, run it directly and observe the running status. If it can be displayed normally, the program runs
successfully, as shown in the following figure (take the colligate_test test program as an example):
