2 In 1 8W Boost-Buck Dual +- Voltage Board 3-24V To 5V 6V 9V 10V 12V 15V 18V 24V For Adc Dac Lcd Op-Amp Speaker

2 In 1 8W Boost-Buck Dual +- Voltage Board 3-24V To 5V 6V 9V 10V 12V 15V 18V 24V For Adc Dac Lcd Op-Amp Speaker

$22.95
2/7
description
product reviews



Product selling point:

1: Multiple choices, optional output

2: Widely used

3: Conversion efficiency: 70-90%

4: High efficiency

5: Easy to use



illustrate:

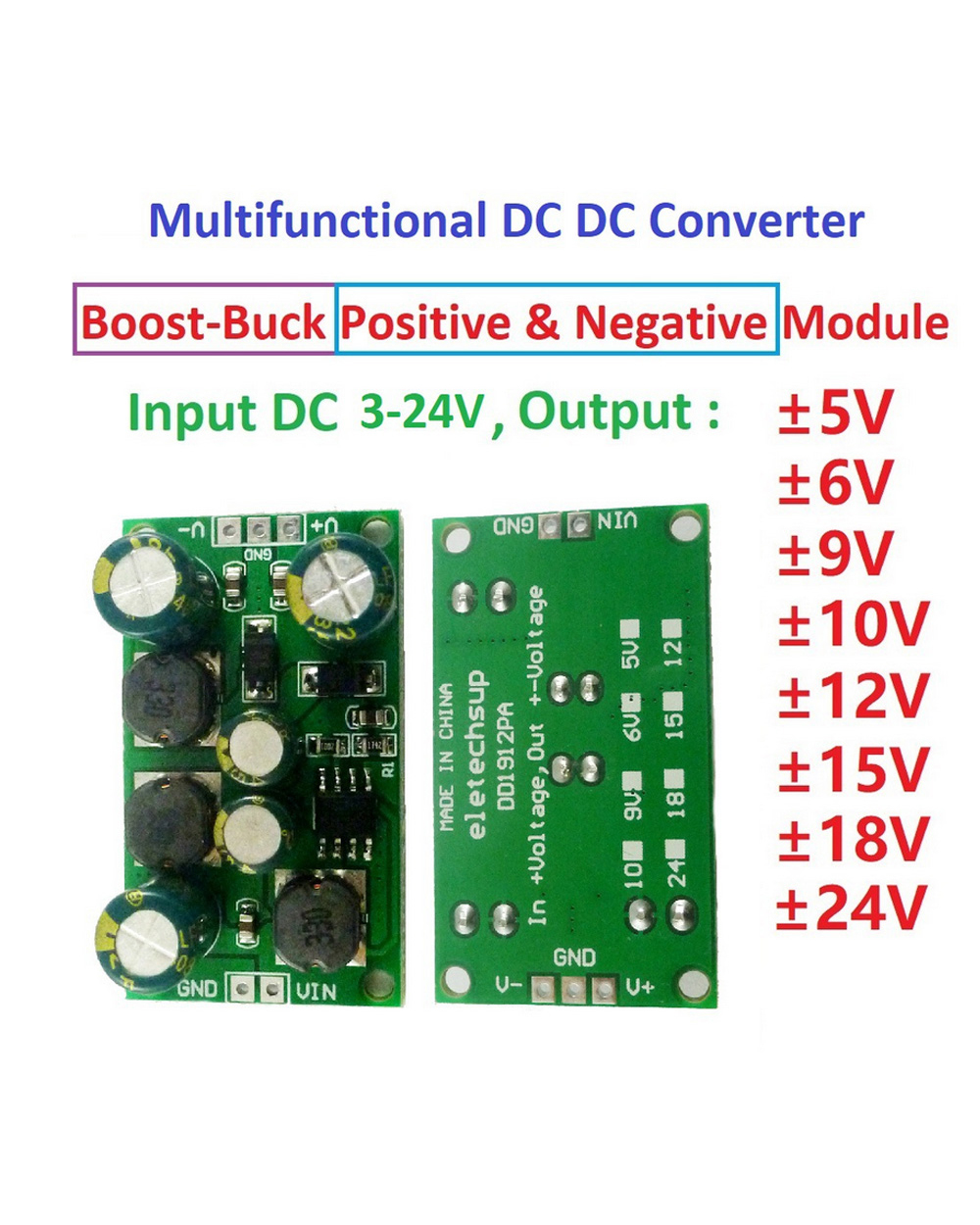

Input voltage 3~24V, output optional ±5V/±6V/±9V/±10V/±12V/±15V/±18V±24V

Maximum output power: 1-8W (for details, please see the description at the bottom or consult us.)

Conversion efficiency: 70-90%

Quiescent current: 3-4mA

Accuracy: positive voltage ±3%, negative voltage ±5%

The operating frequency of the 8W DC-DC Boost-Buck converter is 400KHZ.

Working environment temperature: -40~+85 degrees Celsius

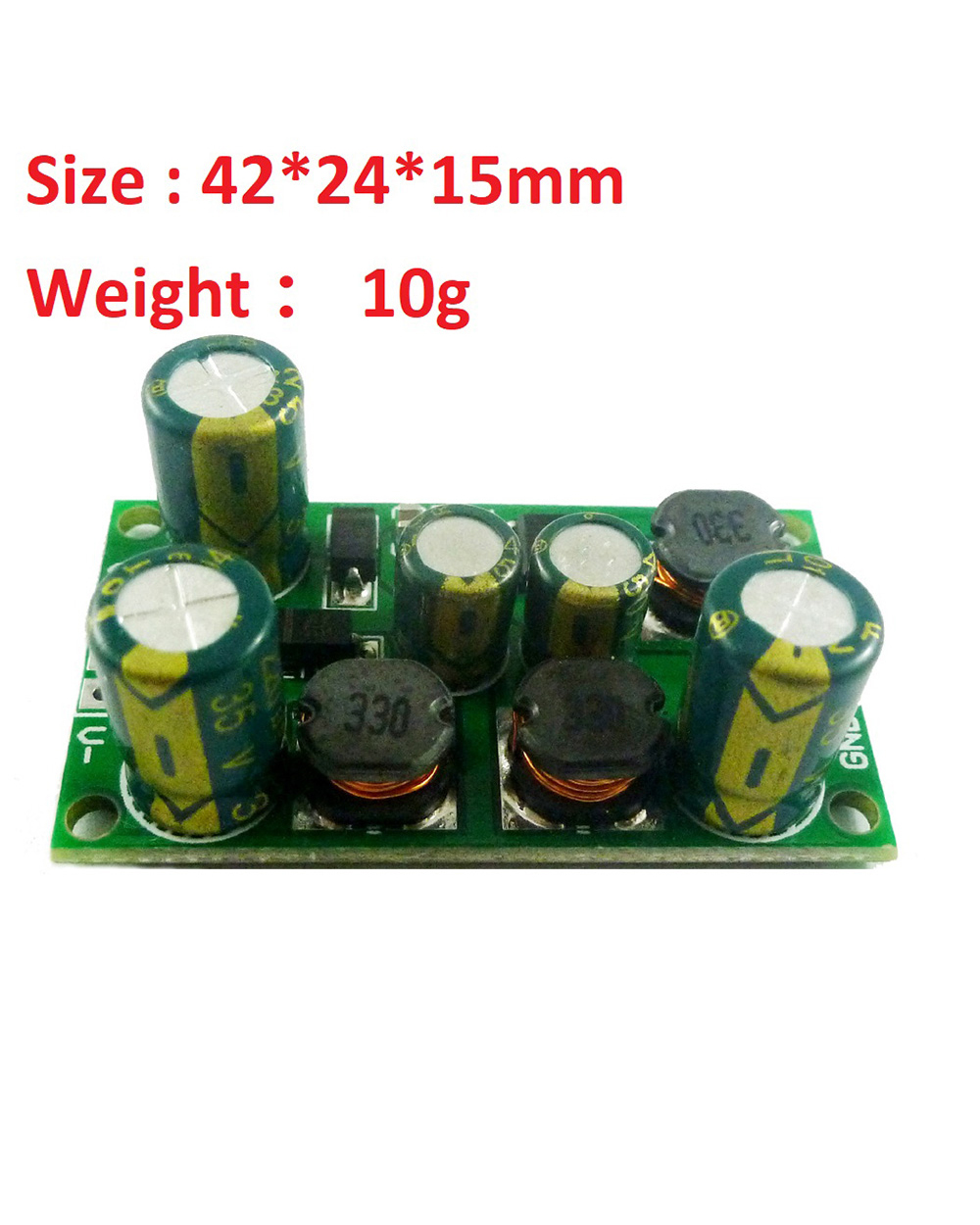

Size: 42 x 24 x 15mm

Weight: 10g

High efficiency up to 90%

Built-in frequency compensation

Built-in soft start function

Built-in thermal shutdown function

Built-in current limiting function

Notice:

1 In order to obtain a more stable voltage, it is recommended that the output be greater than 10MA

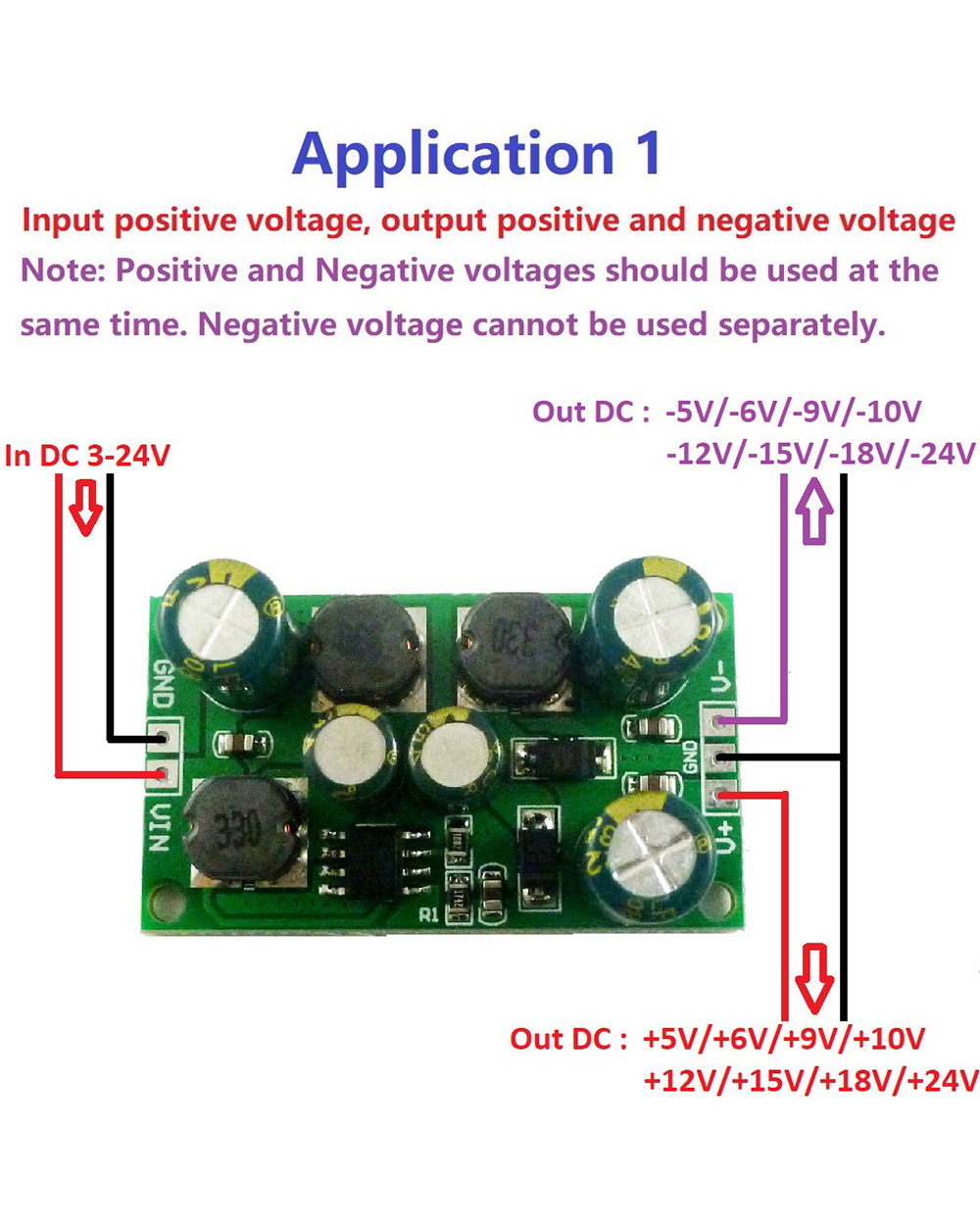

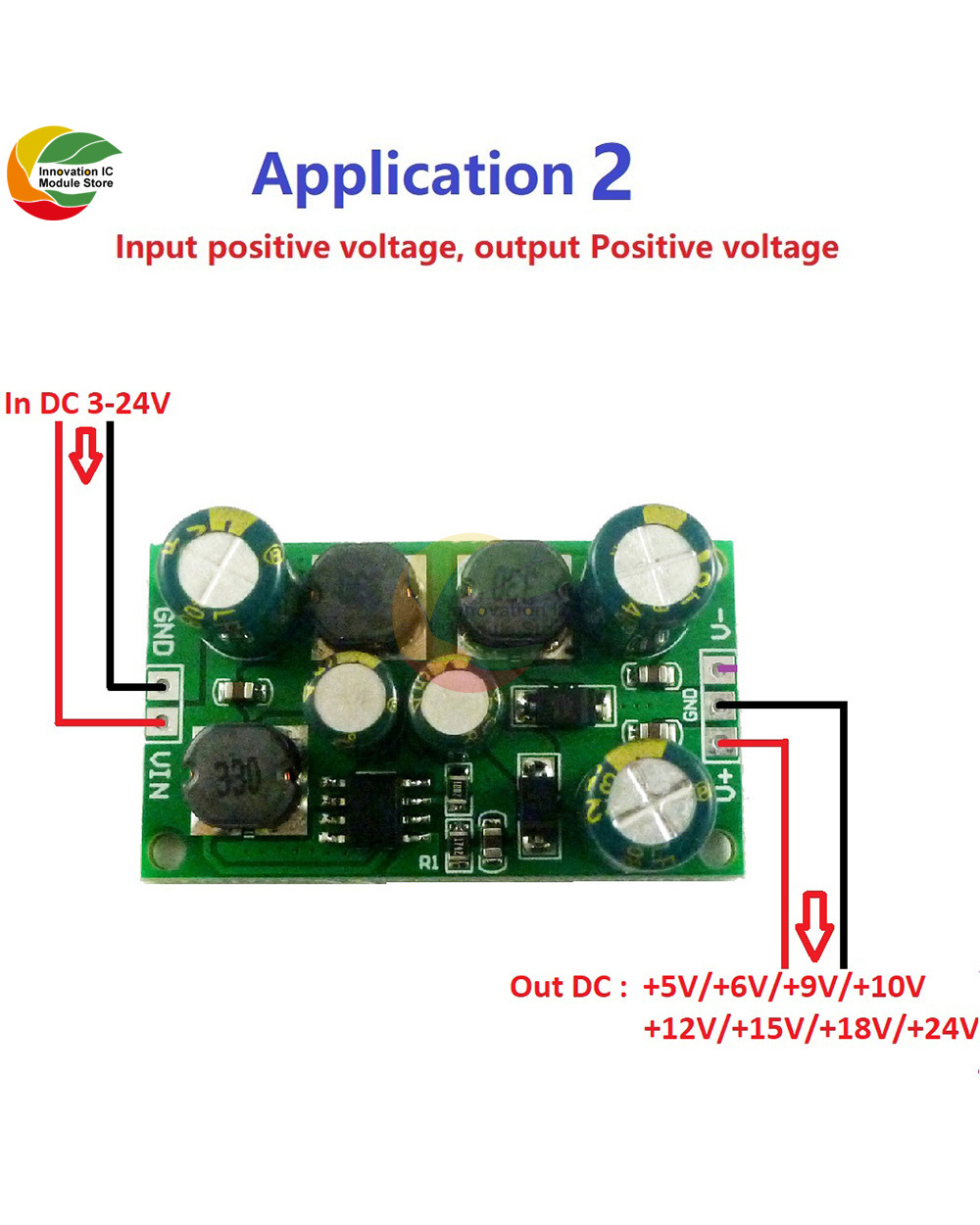

2 V- cannot be used alone, or there is no voltage output. But you can use V+

application

ADC/DAC/operational amplifier reference voltage

RS232 RS485 RS422 bus

Audio equipment

Low power audio power supply

Car audio amplifier dual power supply board

LCD power supply

Instrumentation

Attention:

This is a DC-DC voltage converter module, you must pay attention to:


1 The input voltage cannot be greater than the maximum input range

2 The output power cannot be greater than the maximum load for a long time

3 The input power must be greater than the output power because of the power consumption of the module itself


Q&A:

Q1: Why is the output voltage lower than the nominal voltage

The maximum output power can reach 8W, but the maximum power will be different under different conditions. For details, please refer to the following table (10-80% of the maximum power is the most reliable):

Input DC 3-24V, output ±5V

Input voltage: 3V/3.3V/3.7V/5V/6V/9V/12V/15V/18V

Maximum output current: 0.1-0.8A


Input DC 3-24V, output ±6V

Input voltage: 3V/3.3V/3.7V/5V/6V/9V/12V/15V/18V

Maximum output current: 0.1-0.7A



Input DC 3-24V, output ±9V

Input voltage: 3V/3.3V/3.7V/5V/6V/9V/12V/15V/18V

Maximum output current: 0.04-0.6A


Input DC 3-24V, output ±10V

Input voltage: 3V/3.3V/3.7V/5V/6V/9V/12V/15V/18V

Maximum output current: 0.03-0.55A



Input DC 3-24V, output ±12V

Input voltage: 3V/3.3V/3.7V/5V/6V/9V/12V/15V/18V

Maximum output current: 0.03-0.46A


Input DC 3.3-24V, output ±15V

Input voltage: 3.3V/3.7V/5V/6V/9V/12V/15V/18V

Maximum output current: 0.03-0.41A


Input DC 3.7-24V, output ±18V

Input voltage: 3.7V/5V/6V/9V/12V/15V/18V

Maximum output current: 0.04-0.31A


Input DC 3.7-24V, output ±24V

Input voltage: 3.7V/5V/6V/9V/12V/15V/18V

Maximum output current: 0.03-0.25A



A1: The input power is too low. Use a multimeter to test the input voltage, the input voltage is very low at this time

Q2: Why does it not output negative voltage or the output is too low?

A2: Negative voltage cannot be used alone. When using a negative voltage, the same load must be connected to the positive voltage terminal.


Checklist

1*Converter module
