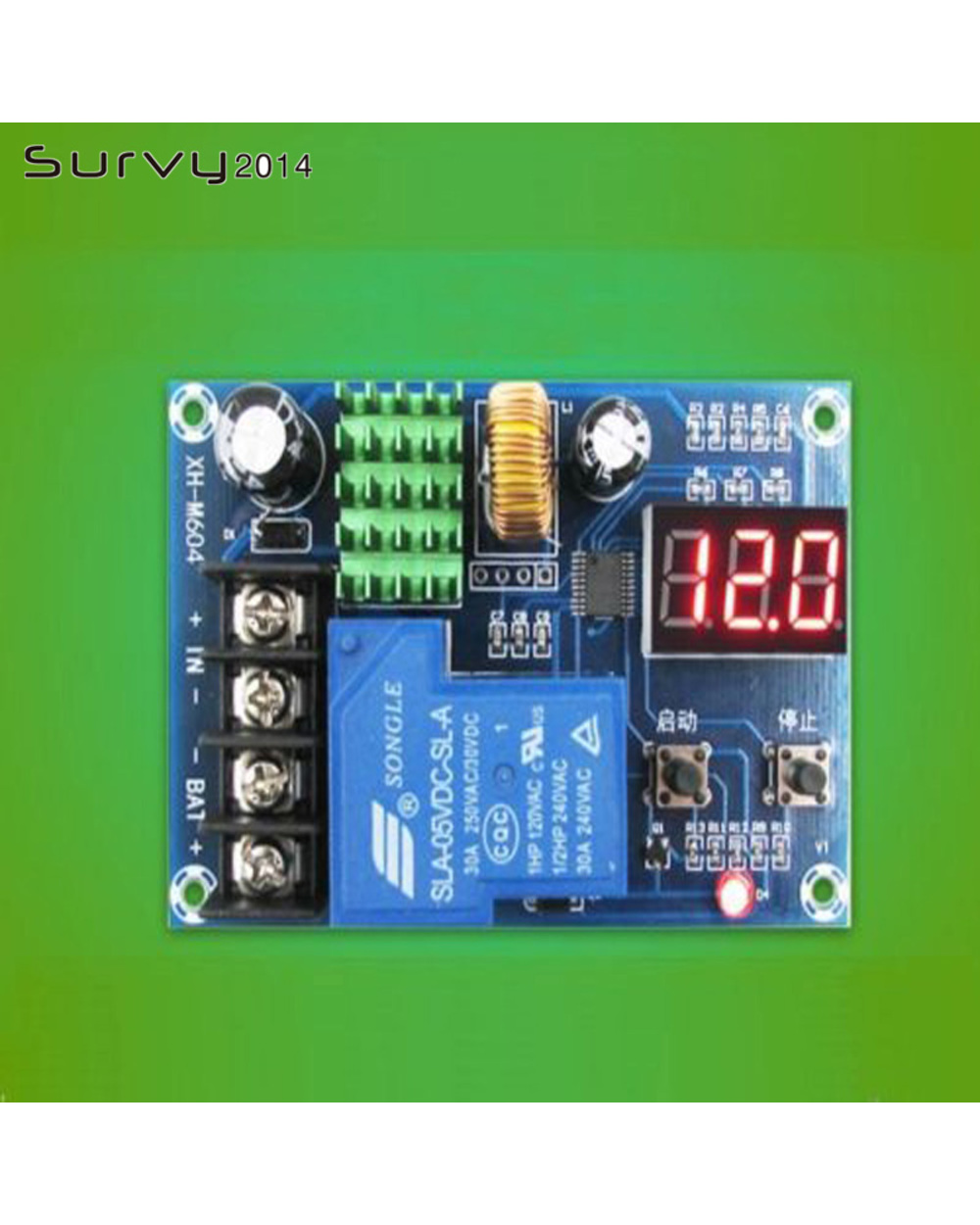

1Pcs 3.7V-120V Lead-Acid Battery Charging Controller Protection Board Switch 12V 24V Diy Electronic

1Pcs 3.7V-120V Lead-Acid Battery Charging Controller Protection Board Switch 12V 24V Diy Electronic

$22.95
2/7
description
product reviews

























































Description

  • Input Voltage:DC 6-60V

  • Display Accuracy:0.1V

  • Control Accuracy:0.1V

  • Output Type:direct output

  • Voltage Tolerance:±0.1V

  • Apply For:6-60V MAX 80V battery

  • Dimension:81*54*18mm


Use: In the setting voltage value, start button play button raised, about stop button role to down key
1. Set the start voltage:
Normal display voltage state, press to a starting voltage button ,to display the start charging voltage. long Press the start button, digital flashes, by start and stop button, set the start charging voltage value.
2. Set Stop voltage:
Normal Voltage normal display mode, press to a Stop voltage button ,to display the Stop charging voltage. long Press the Stop button, digital flashes, by start and stop button, set the Stop charging voltage value.
3. Setting Error:
Energized state while holding down the start / stop button, digital display 888, which is the factory setting.
