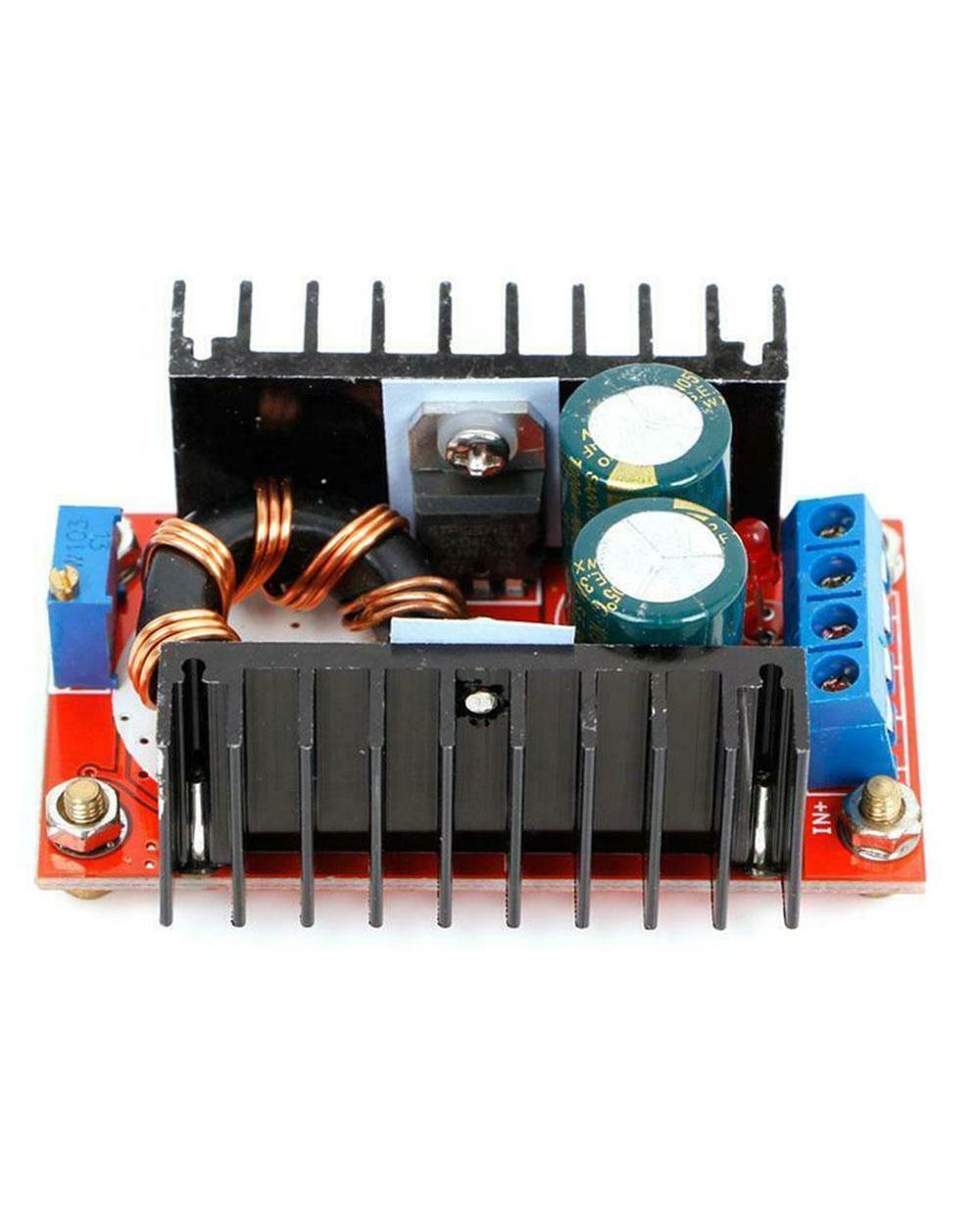

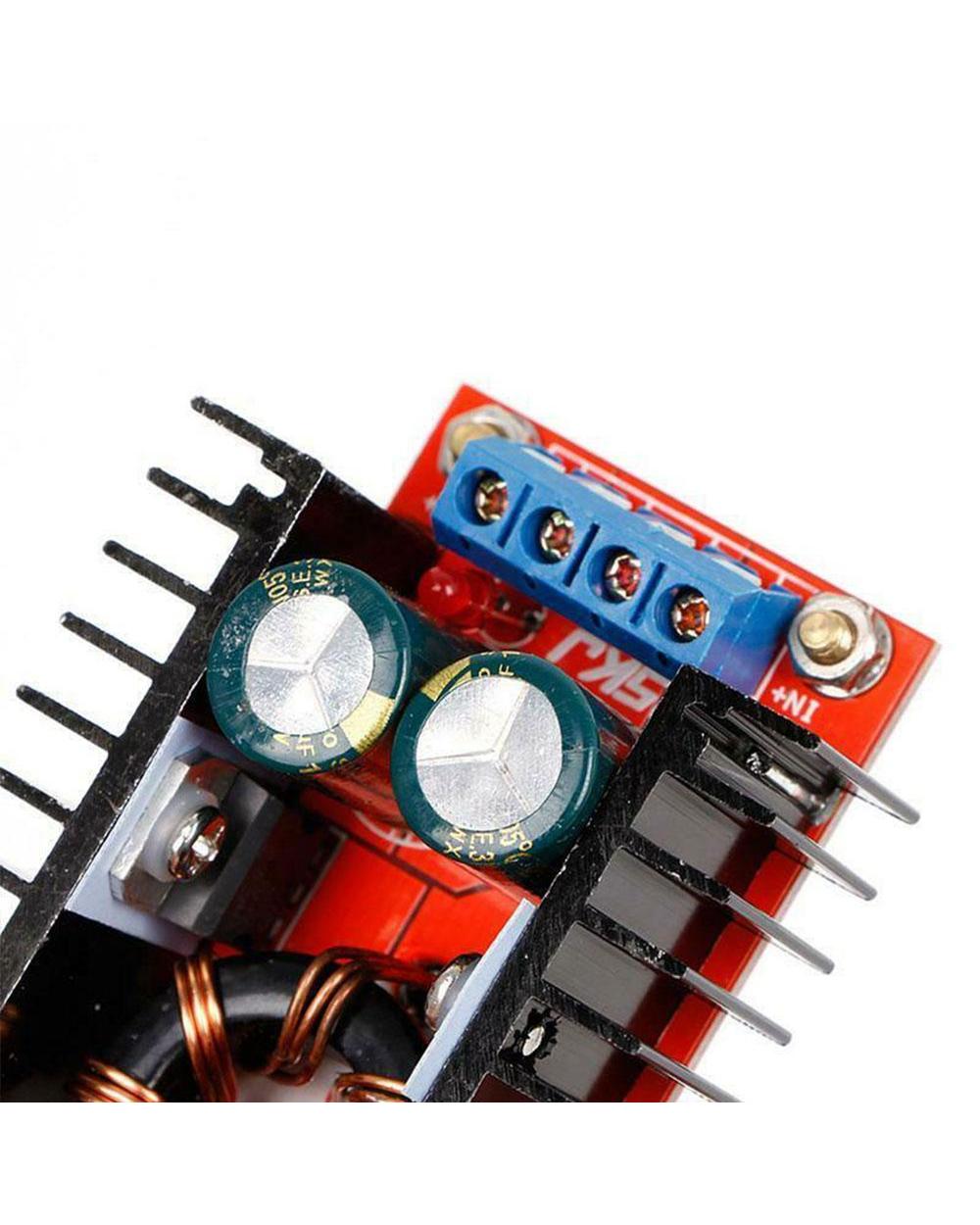

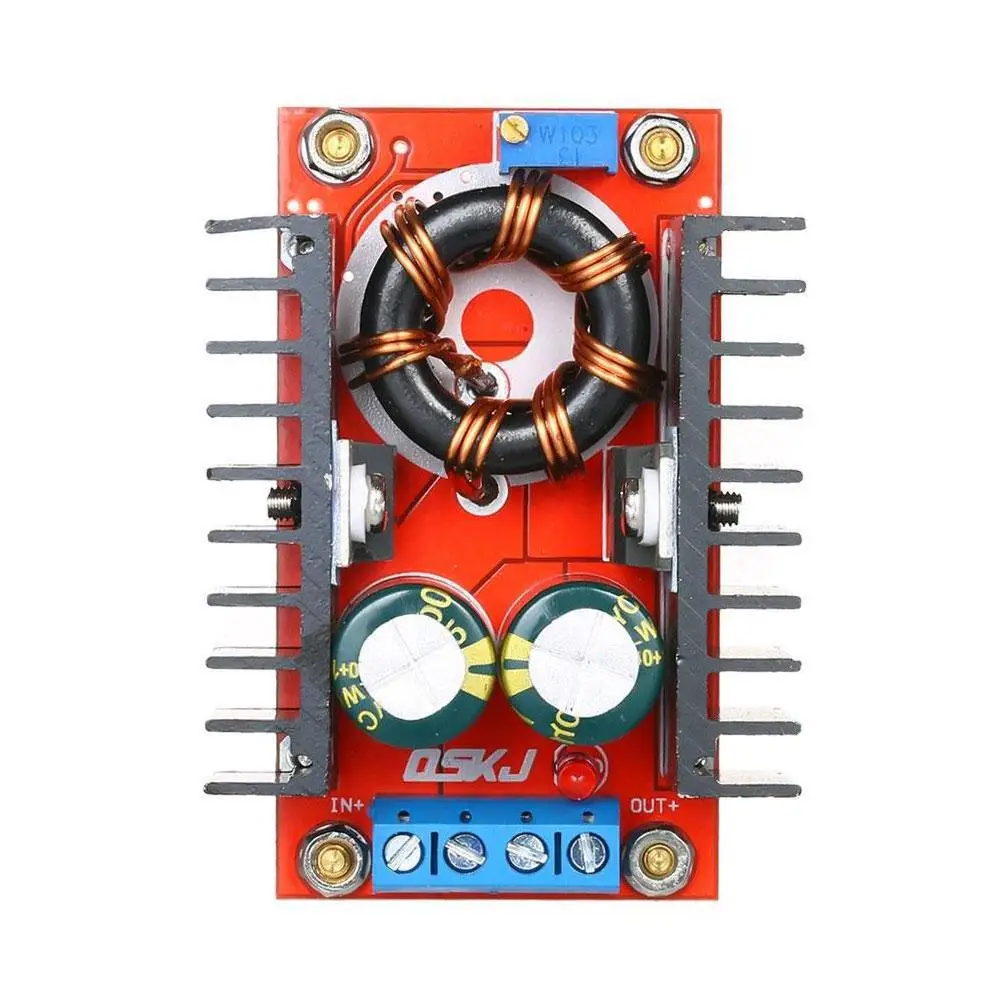

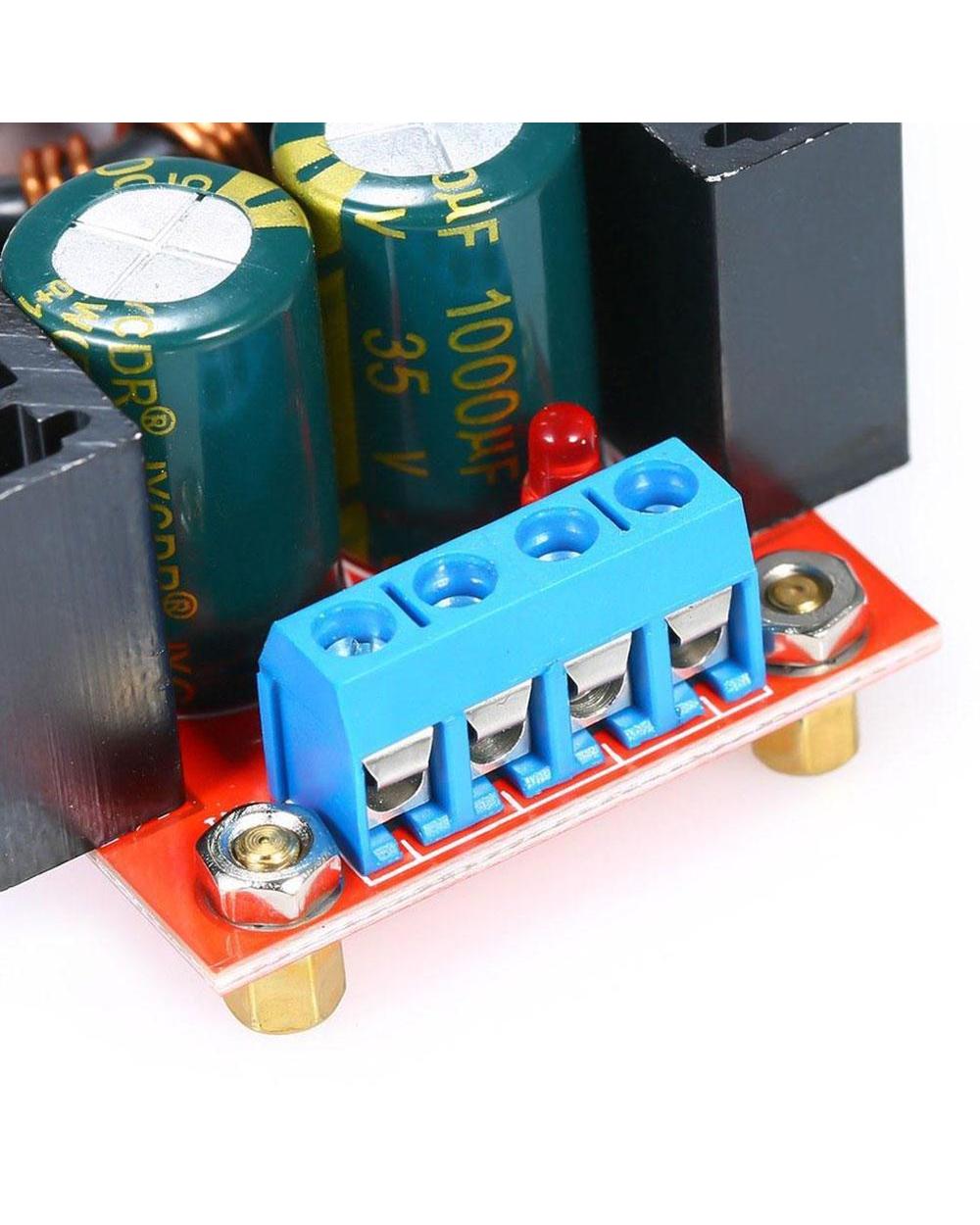

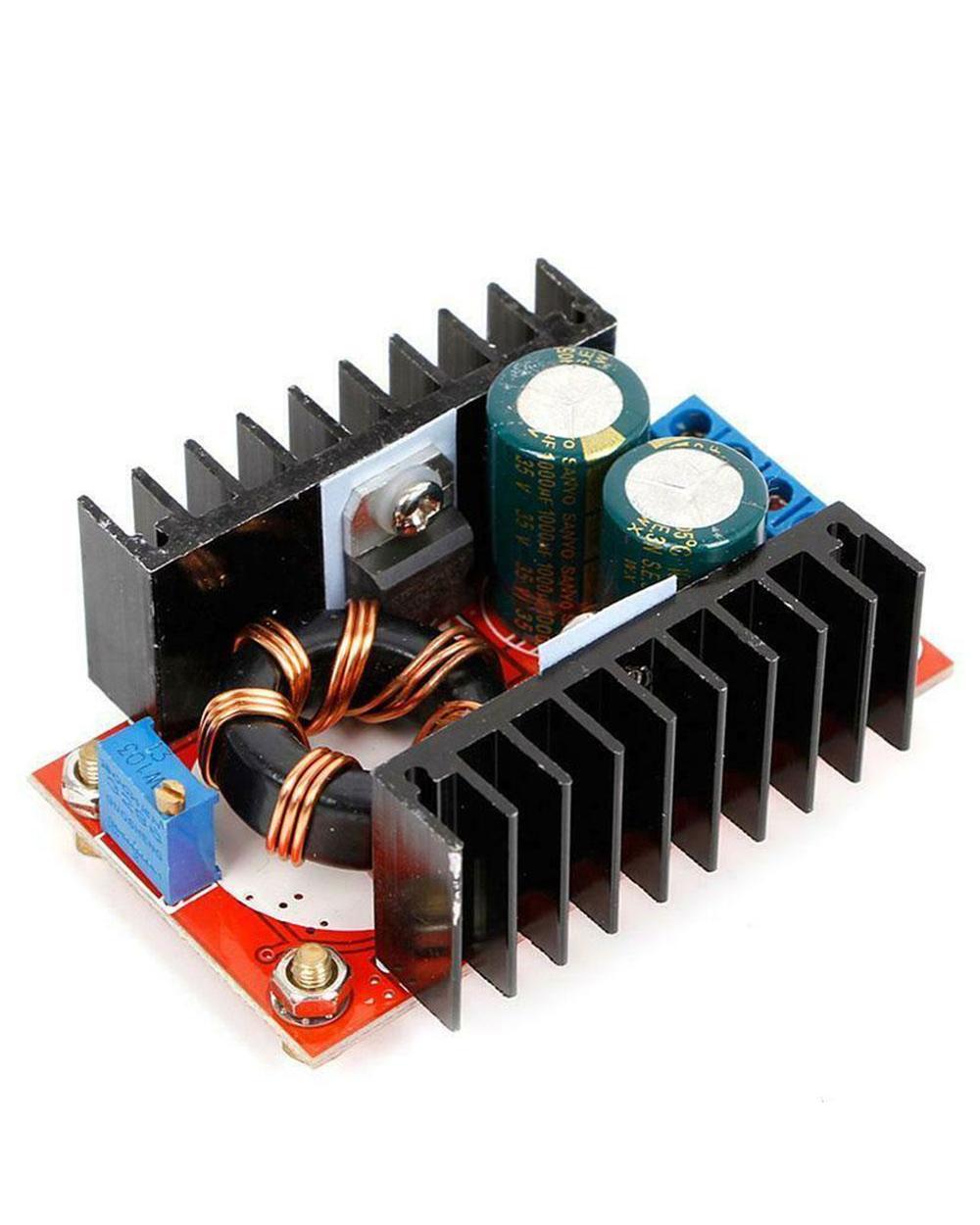

150W 10-32V To 12-35V 10A Dc-Dc Boost Converter Step Up Power Supply Module Laptop Voltage Charger Module Board

150W 10-32V To 12-35V 10A Dc-Dc Boost Converter Step Up Power Supply Module Laptop Voltage Charger Module Board

$20.95
2/7
description
product reviews

100% brand new and high quality
Input voltage : DC 10 - 32 V
Output Voltage : DC 12-35 V(Adjustable)
Output Current : 10A(MAX)
Input current : 16A (MAX) (more than 16A please strengthen heatsink)
Output Power : natural cooling 100W (MAX), strengthening cooling 150W (MAX) real power.
Conversion efficiency : 94% (when Input 19V 2.5A Output 16V, Reference)
Output ripple : 2% (MAX)
Working Temperature : industrial (- 40 ° c to +85 °c) ( environmental temperature, more than 40 degrees, please reduce power to use, or - enhance cooling).
Full-Load temperature : 45 degrees
No-load current : 25mA typical
Voltage regulation : ± 0.5%
Load regulation : ± 0.5%
Dynamic response speed : 200uS 5%
Short circuit protection: No (Please installs the fuse or protection circuit at input parts).
Input Reverse protection: No (please comply with a reverse protection or connect a diode at input parts.)
Size : 65*28*56.3 mm/2.56"*1.10"*2.22"
Applications : DIY an output adjustable vehicle power supply, connect the 12V input, and output could be 14-35V(adjustable freely), However, the output voltage can not be less than the input voltage. Boost charger. You can use the 12V power supply to charge battery more than 12V, for example, 24V battery. Car laptop power supply: connected to 12V power supply, output voltage regulation as your notebook need. for your electronic equipment Pre-supply system The image is for illustration When adjust the blue potentiometer ,please use a multimeter to monitor the voltage Rotating Clockwise can rise the voltage while rotating counterclockwise could lower the voltage When the module output voltage can not be adjusted ( the output voltage is always equal to the input voltage ) Please adjust the potentiometer counterclockwise 20 laps (20 turns) or more till it works.
Quantity:1Pc
