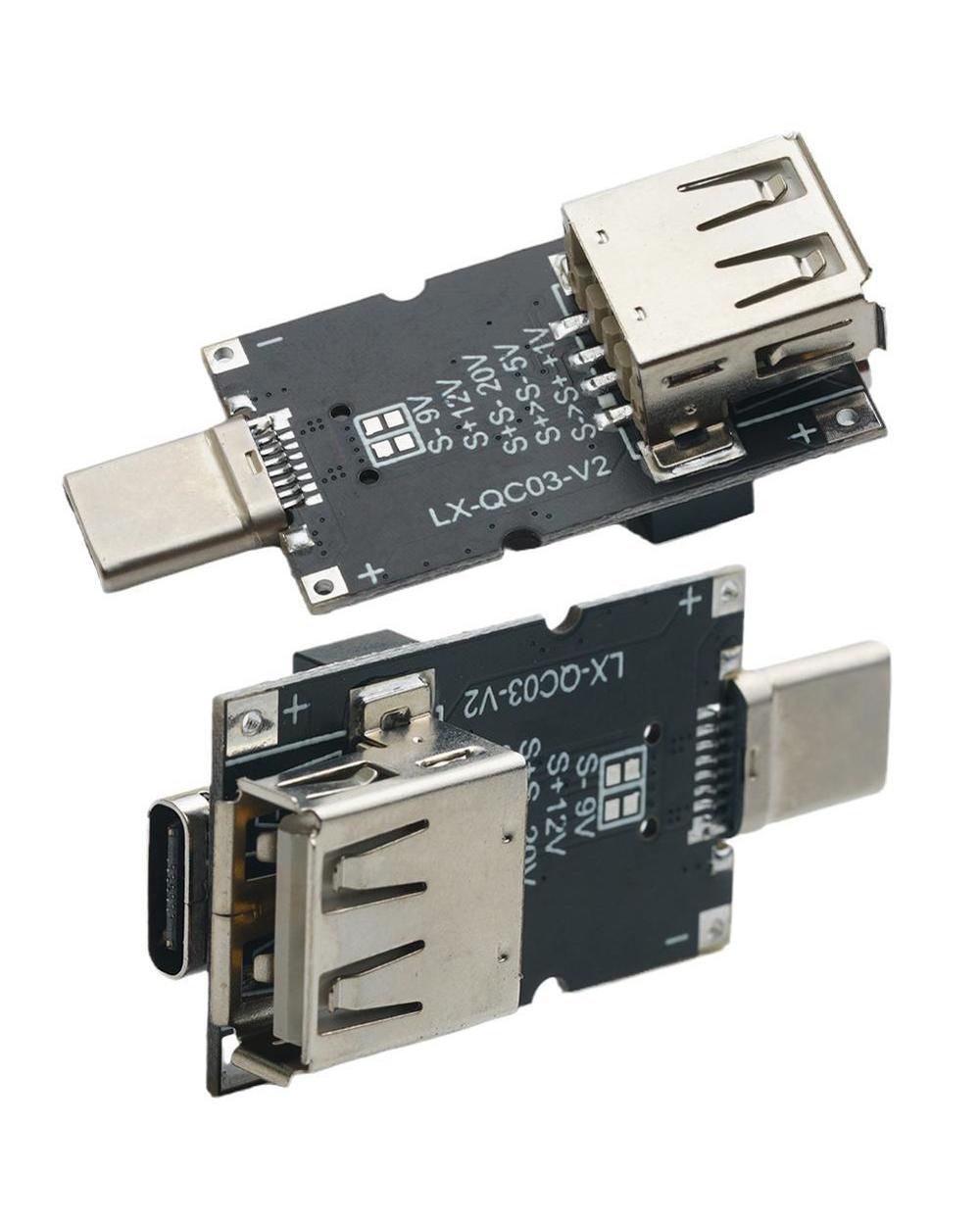

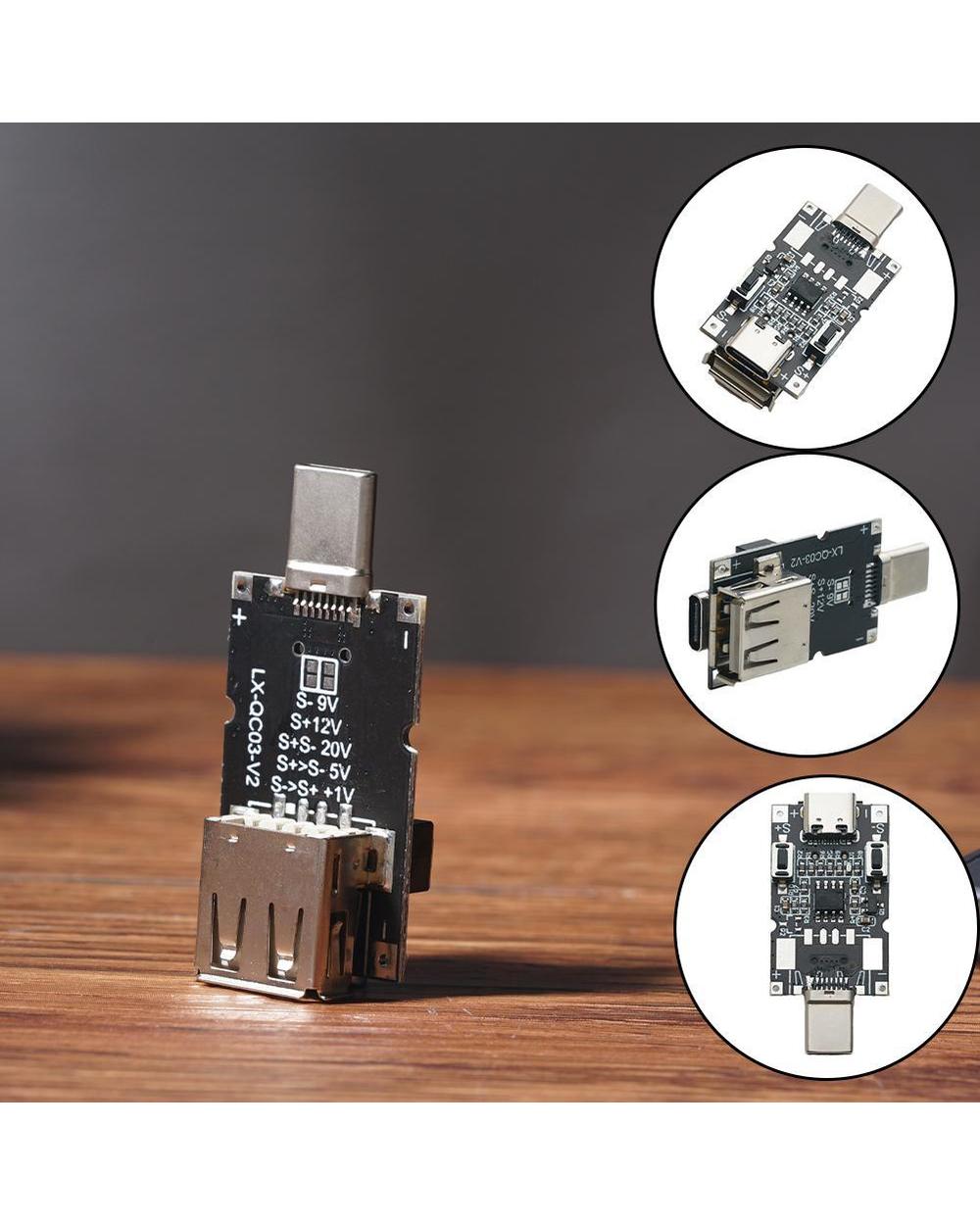

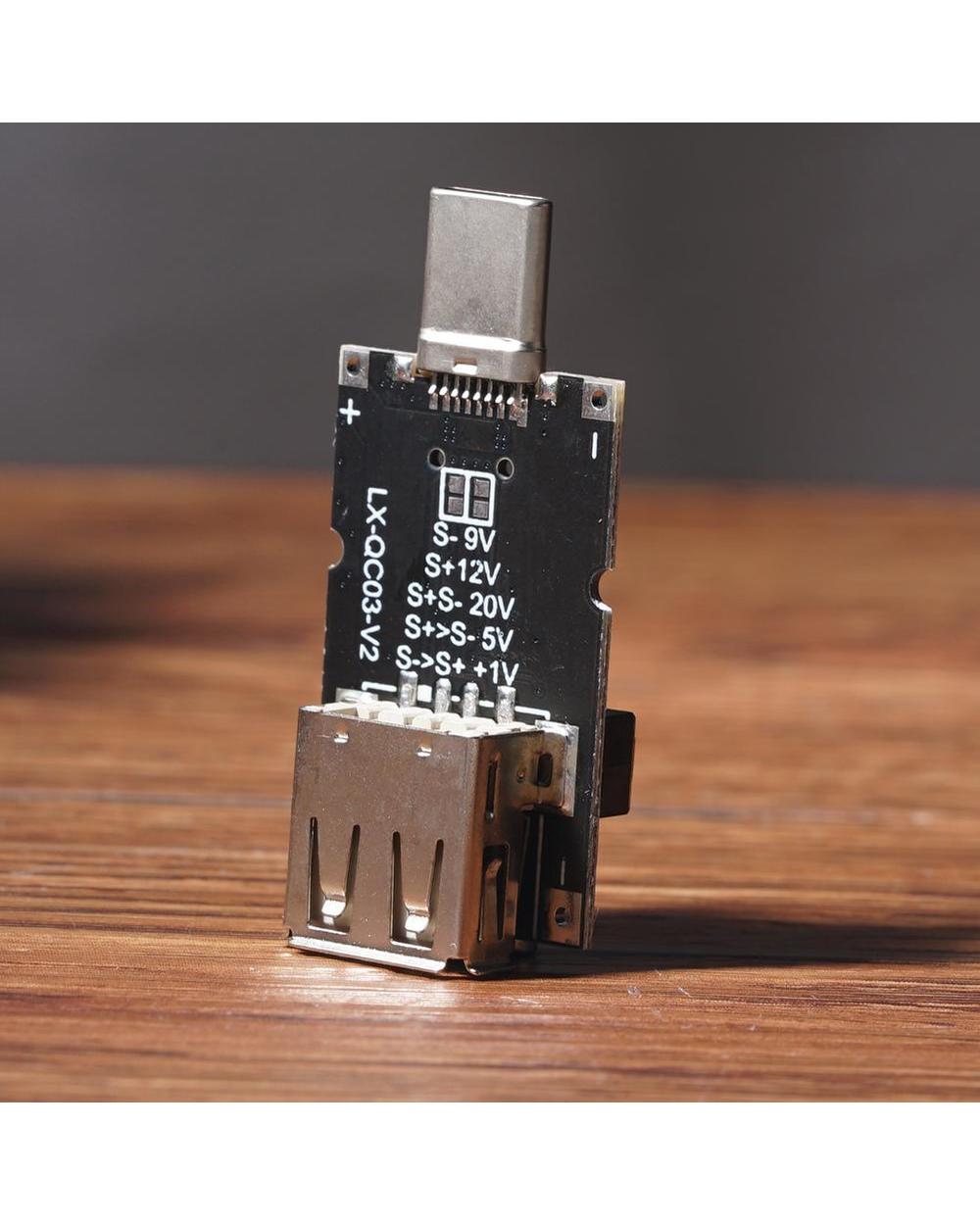

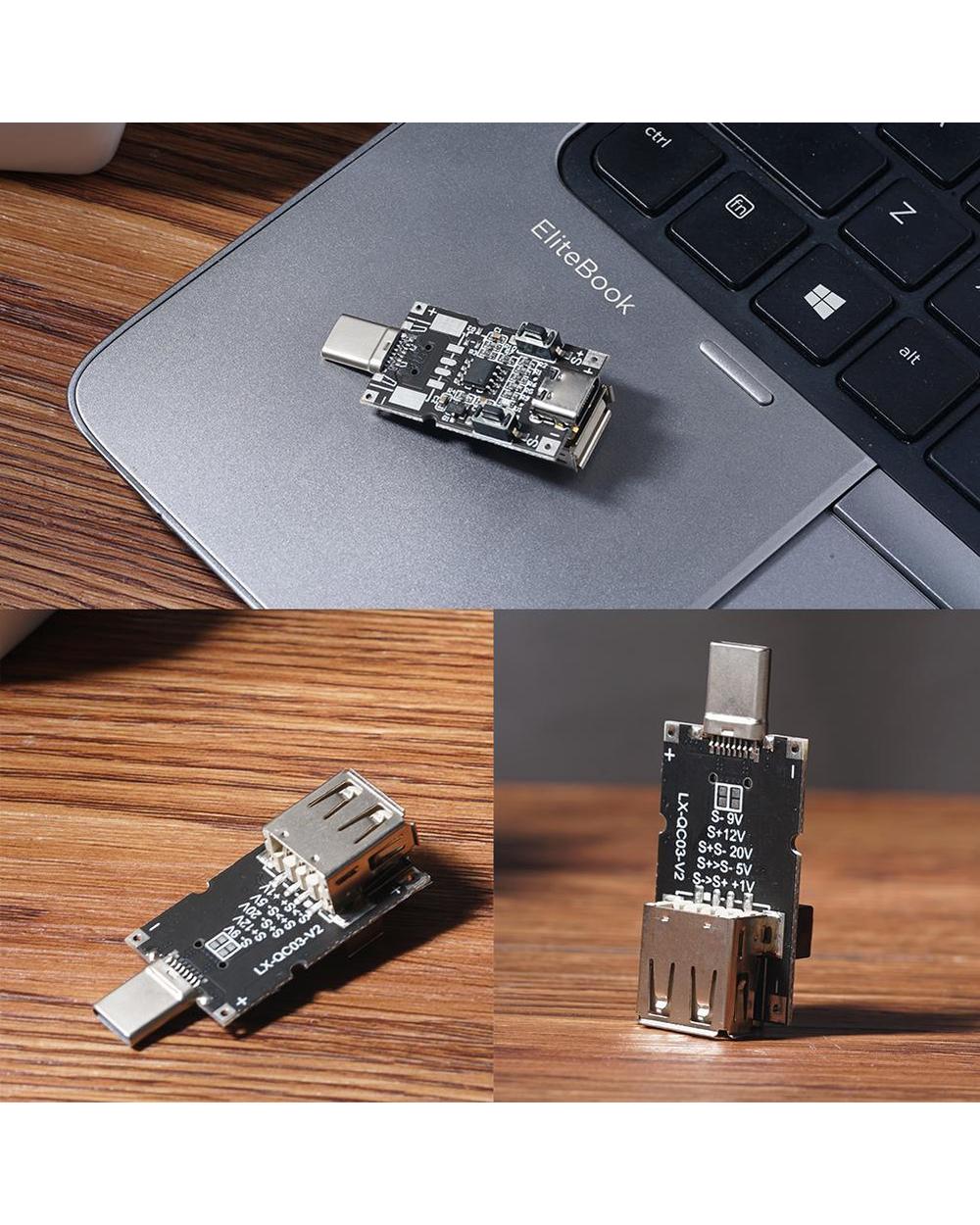

100W 5A Qc Trigger Type-C Usb Qc Decoy Trigger Board 5/9/12/20V Qc2.0/3.0 Trigger Adapter Cable Connection Polling

100W 5A Qc Trigger Type-C Usb Qc Decoy Trigger Board 5/9/12/20V Qc2.0/3.0 Trigger Adapter Cable Connection Polling

$20.95
2/7
description
product reviews

product description

1. TYPE-C input port, type-c plus USB output port (input can also be TYPE-C male

Female)

2. Support QC3.0 and QC2.0 voltage decoy output, and the mode can be switched freely.

3. QC2.0 mode supports 5V/9V/12V/20V decoy output (the specific range depends on your power supply

Off, power support is required).

4. QC3.o mode supports adjustment from 3.6V to 20V with 0.2V accuracy (the specific range depends on your power supply

Off, power support is required).

5. Communication interruption and restart function. When the decoy voltage is greater than or equal to 9V, when external interference or other

When the problem causes the decoy to be interrupted, the module actively restarts the decoy.

6. With key lock function to prevent misoperation.

7. 5V/9V/12V/20V quick setting. Suitable for blind handover.

8. The parameters are braked and saved, and the power is turned on again to execute the last decoy setting.

9. No heat, support 100w output.


Instructions for use (must use a power supply with QC protocol) QC2.0 mode features and settings:

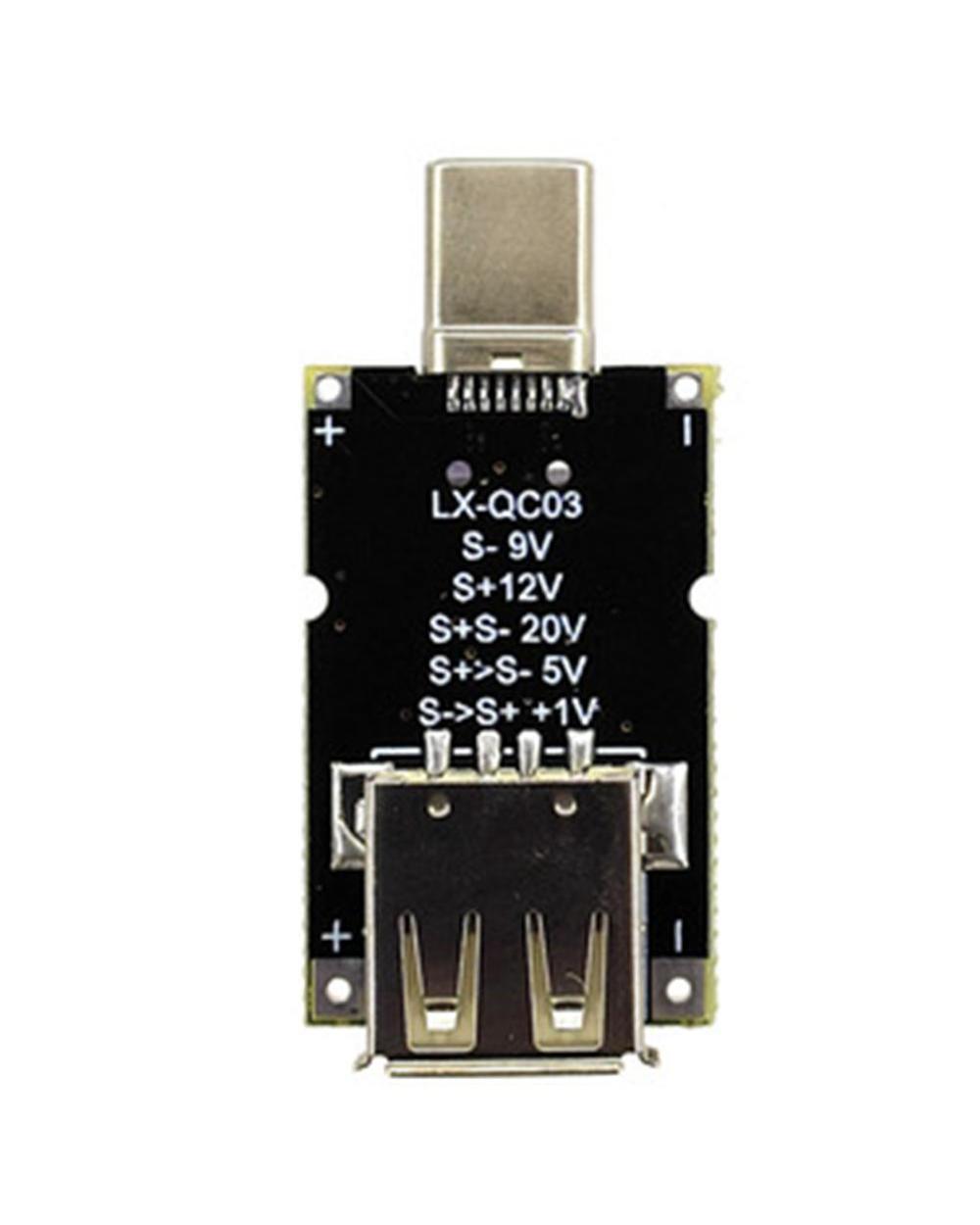

Compatible with QC2.0/QC3.0/QC4.0 power supply. The output is fixed at 9V/12V/20v. For stable operation, simply press and hold the S-button, and then plug the module into the power supply. At this time, 9V is tricked out.

Press and hold the S+ button, and then plug the module into the power supply. At this time, 12V is tricked out.

Press and hold the S+ and S- buttons at the same time, and then plug the module into the power supply. At this time, 20V is tricked.


QC3.0 mode features and settings:

Compatible with QC3.0/QC4.0 power supply. The output range is 3.6-20v, and the adjustment takes 0.2V as a step to add and subtract. The specific output range is related to the deceived power supply.

After the module is powered on, first press and hold S+, then press S-, and then release S- and S+ in turn after 1 second. The module is unlocked and reset to 5V output. After unlocking, the voltage can be added or subtracted by short pressing S+ and S-. Short press once to increase or decrease the voltage by 0.2v. You can also press and hold S- and then short-press S+ to quickly add voltage. Short press S+ once to increase the voltage by 1V.


Interface and parameters

Type-c male connector: As an input to connect to the PD power supply, it can pass 20V5A voltage and current.

Type-c female connector: As input to connect PD power supply, or as output interface (maintain at this time)

The CC line is suspended), which can pass 20V5A voltage and current.

USB-A female: As output, it can pass 20V3A voltage and current.

Positive and negative wiring pads: as output, 20V5A voltage and current can be passed.


Common questions:

How much current is deceived?

The board is responsible for deceiving the voltage, and the current should not exceed the voltage that the USB interface can withstand. The output current of Type-c male and female heads is 5A. If you use the USB-A port, the withstand current is generally 3A. So it does not exceed this current. There will be no problems. The actual current size. It is determined by your power supply and your load. The board is only responsible for tricking out the voltage. (For example: your mobile phone charging head is 9V2A/12v1.5A, then the current will not exceed 1.5A after using a 12v decoy to trick it out)

Is the voltage deceived by the measurement not accurate?

The decoy is only responsible for telling the power supply how much voltage I need you to output. The module does not have the function of determining the actual voltage. This is affected by factors such as the voltage accuracy and current of the power supply itself.

Package list

1pcs module
